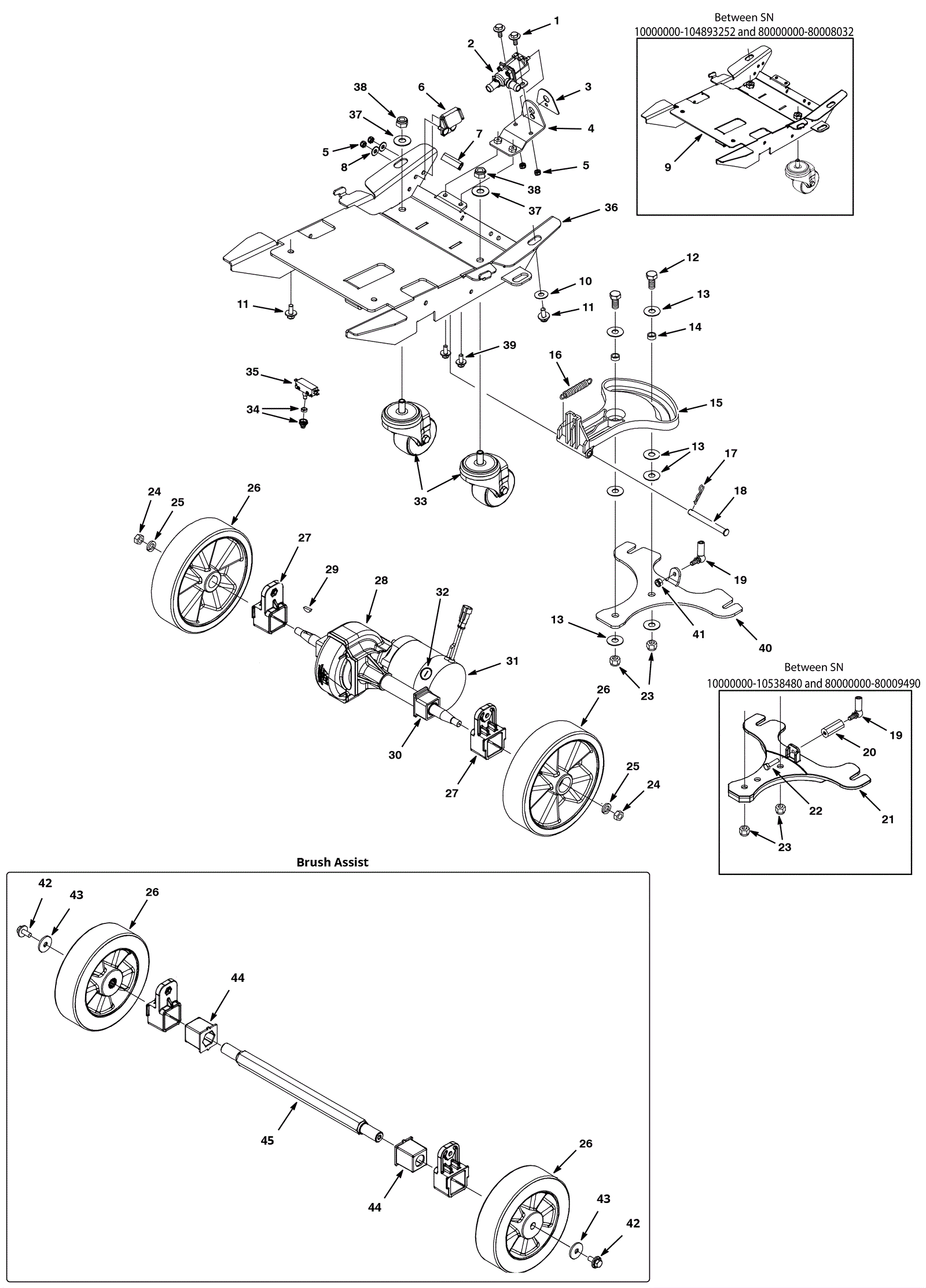

SS3 Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
2a 175-7884 24V solution solenoid valve assembly $139.40 1 (between SN 10729442-20000000 and SN 30044532-40000000) usually ships 1-5 days
2c 175-8698 Solenoid valve rebuild kit (internal parts) $103.40 1 (before SN 10729442) (between SN 30000000-30044531) ships same day
3 175-7885 Solution flow operation decal $7.20 1 usually ships 5-16 days
4 275-5903 Mounting bracket $39.60 1 usually ships 5-16 days
5 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 4 ships same day
6 175-7883 Foot pedal locking bracket $49.00 1 usually ships 5-16 days
7 275-5895 Plastic trim $19.30 1 usually ships 5-16 days
8 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
9 N/A Not available Call for price 1 (frame weldment) (between SN 10000000-104893252 and SN 80000000-80008032)(replaced by 36) usually ships 3-26 days
10 275-7133 Washer .34B x 1.25D x .11 flat stainless steel $4.50 2 ships same day
11 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.00 4 ships same day
12 999-6696 Bolt M12-1.75 x 30mm stainless steel hex cap screw $5.19 2 ships same day
13 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 7 ships same day
14 175-7890 Sleeved bushing $3.60 2 ships same day
15 275-5794 Squeegee lifting bracket $42.00 1 usually ships 5-16 days
16 275-5897 Extension spring $6.80 1 ships same day
17 175-2117 Cotter pin $3.60 1 ships same day
18 175-7892 Clevis pin $7.10 1 ships same day
19 175-7860 Ball joint $21.70 1 ships same day
20 175-8826 Spacer $16.10 1 (before SN 10538481) (between SN 80000000-80009490) usually ships 5-16 days
21 N/A Not available Call for price 1 (before SN 10538481) (between SN 80000000-80009490) (replaced by 36) usually ships 3-26 days
22 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 1 (before SN 10538481) (between SN 80000000-80009490) ships same day
23 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 2 ships same day
24a 999-0503 Nut M12-1.75 hex stainless steel $1.91 2 (drive) (before SN 80000001) ships same day
25a 999-0126 Washer 1/2 split lock $1.28 2 (drive) (before SN 80000001) ships same day
26a 275-5852 Wheel with taper $130.70 2 (drive) (before SN 80000001) ships same day
26b 175-7907 Wheel with bearing $140.90 2 (brush assist) ships same day
27 275-5900 Axle mount $13.60 2 usually ships 5-16 days
28a 175-7896 Transaxle kit with 2 wheels $2,272.30 2 (includes 28b-32) (drive) usually ships 5-16 days
28b 175-7899 Transaxle coupling kit $31.00 1 (drive) ships same day
29 275-1448 Square keyway $3.00 2 (drive) ships same day
30 175-3660 Transaxle sleeve $9.20 2 (drive) usually ships 5-16 days
31 275-9202 24V transaxle motor $609.30 2 (includes 32) (drive) usually ships 5-16 days
32 175-7898 Carbon brush (pkg of 4) $59.50 1 (drive) ships same day
33a 175-7887 Swivel caster wheel $145.90 2 (before SN 200000001) ships same day
34 175-2878 Nut 3/8-32 hex switch boot $16.40 1 ships same day
35a 175-0084 Actuator push switch $15.60 1 (before SN 80000001) ships same day
36 275-5896 Frame weldment $415.40 1 (includes 37-38) usually ships 5-16 days
37 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 (between SN 10489353-40000000) (after SN 80008032) ships same day
38 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 2 (between SN 10489353-40000000) (after SN 80008032) ships same day
39 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
40 275-7547 Mounting bracket $76.40 1 (between SN 10489353-4000000) (after SN 80008032) usually ships 5-16 days
41 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 (between SN 10489353-40000000) (after SN 80008032) ships same day
N/S 175-7795 Cable tie $3.50 4 ships same day
