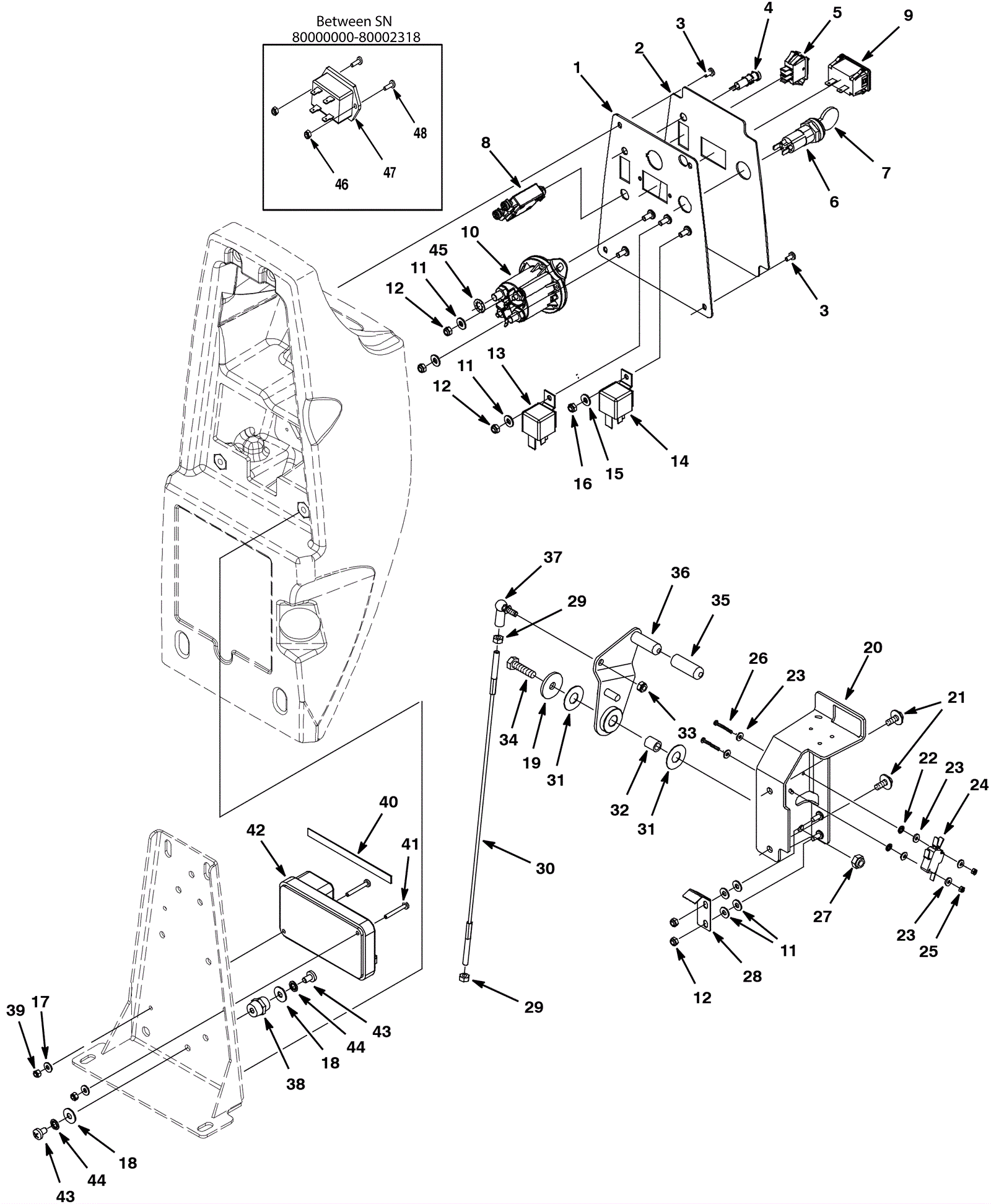

SS3 Component Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-7852 Lower control panel $55.44 1 usually ships 10-16 days
2a 175-7851 Lower console decal $37.07 1 (standard and fast) usually ships 10-16 days
2b 475-1088 LABEL, OPERTNL, PANL [T3 ec-H2O, NA/AEJ] $22.33 1 (after May 2014) (ec-H2O) usually ships 10-16 days
2c 275-5886 Lower console decal $77.33 1 (before June 2014) (after SN 80002318) (ec-H2O) usually ships 1-5 days
3 175-5815 Screw 10 x 1/2 pan head phillips black $3.83 1 ships same day
4 275-4715 LED light $102.30 1 ships same day
5 175-7871 Rocker switch $17.60 1 usually ships 10-16 days
6 175-7872 Key switch with 2 keys $53.13 1 (includes 7) ships same day
7 991-1634 Key (pkg of 2) $10.67 1 ships same day
8 275-6117 35amp circuit breaker $71.17 1 usually ships 10-16 days
9 275-9900 Hour meter $53.79 1 ships same day
10a 375-1275 150amp relay $46.97 2 (after May 2014) ships same day
10b 275-4717 100amp relay $56.76 2 (before June 2014) usually ships 9-14 days
11 999-0998 Washer #10 flat stainless steel $0.99 7 ships same day
12 999-0740 Nut M5-.8 hex stainless steel $0.99 4 ships same day
13 175-6588 24V 70amp elevated relay $17.60 1 ships same day
14 175-6588 24V 70amp elevated relay $17.60 1 ships same day
15 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
16 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
17 999-0266 Washer #8 SAE flat stainless steel $0.99 2 (drive) ships same day
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
19 275-7133 Washer .34B x 1.25D x .11 flat stainless steel $5.50 1 ships same day
20 175-7854 Lever weldment bracket $96.14 1 ships same day
21 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
22 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
23 999-1158 Washer #6 flat stainless steel $0.99 6 ships same day
24 175-7836 Snap switch $25.74 1 ships same day
25 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
26 275-5888 Screw M3-.5 x 25mm hex head stainless steel $3.43 2 ships same day
27 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
28 175-7365 Squeegee lever spring $9.90 1 usually ships 10-16 days
29 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
30 175-7859 Squeegee lift cable $45.43 1 ships same day
31 175-7856 Washer M13-.8 x 30mm flat nylon $4.88 2 ships same day
32 175-5070 Sleeved bearing $4.88 1 ships same day
33 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 1 usually ships 12-18 days
34 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 usually ships 12-18 days
35 175-7857 Handle grip $4.88 1 ships same day
36 175-7858 Lever weldment $202.62 1 usually ships 10-16 days
37 175-7860 Ball joint $24.42 1 ships same day
38 175-7864 Wire stand off $17.60 1 usually ships 10-16 days
39 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 (drive) ships same day
40 275-5893 Seal $25.74 1 (drive) usually ships 1-5 days
41 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 (drive) usually ships 12-18 days
42 175-7862 Drive module $492.58 1 (drive) ships same day
43 999-0807 Screw M6-1 x 10mm flat head phillips $2.49 2 ships same day
44 175-4544 Washer M6 locking $4.09 2 ships same day
45 999-1053 Washer 5/16 internal star lock stainless steel $0.99 1 ships same day
46 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 (between SN 80000000-80002318) ships same day
47 175-7870 Hour meter gauge $96.03 1 (between SN 80000000-80002318) usually ships 10-16 days
48 999-1222 Screw M3-.5 x 10mm pan head stainless steel $0.99 2 (between SN 80000000-80002318) ships same day
