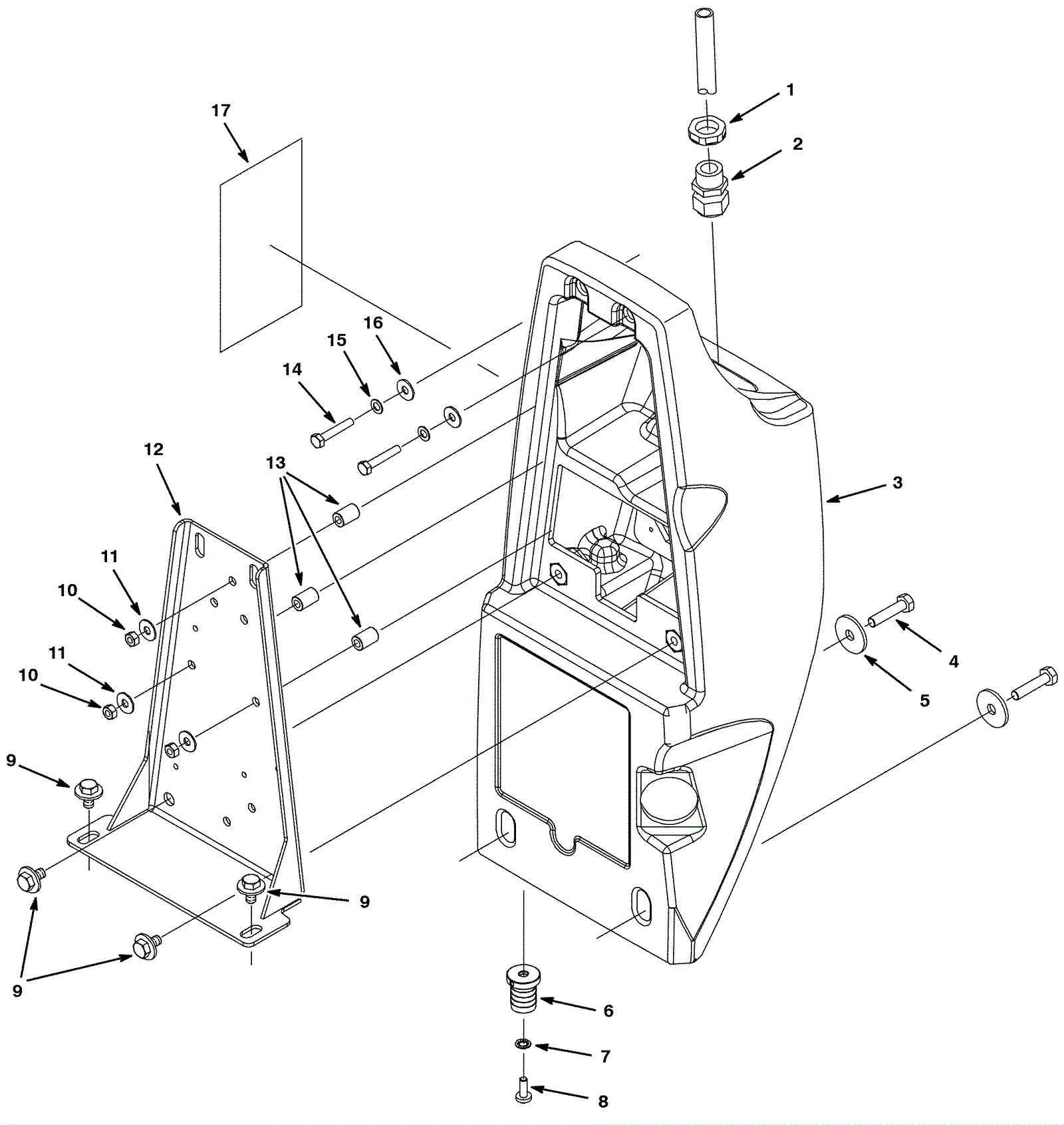

SS3 Lower Control Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9856 Nut 1/2 conduit $4.09 1 usually ships 1-5 days
2 175-6124 Cord grip $10.34 1 usually ships 1-5 days
3 275-5923 Lower console $262.57 1 usually ships 1-5 days
4 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
5 275-7133 Washer .34B x 1.25D x .11 flat stainless steel $5.50 2 ships same day
6 275-5871 Plastic fitting $4.09 1 ships same day
7 175-4544 Washer M6 locking $4.09 1 ships same day
8 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 1 ships same day
9 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 4 ships same day
10 999-0439 Nut M6-1 hex coarse thread $0.99 3 ships same day
11 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
12 275-5882 Control housing bracket $37.29 1 usually ships 10-16 days
13 275-5924 Bushing $3.43 3 usually ships 1-5 days
14 175-9662 Screw M6-1 x 35mm hex head stainless steel $3.96 2 usually ships 1-5 days
15 175-4544 Washer M6 locking $4.09 2 ships same day
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
17 375-1139 ec-H2O instruction decal $23.21 1 usually ships 10-16 days
