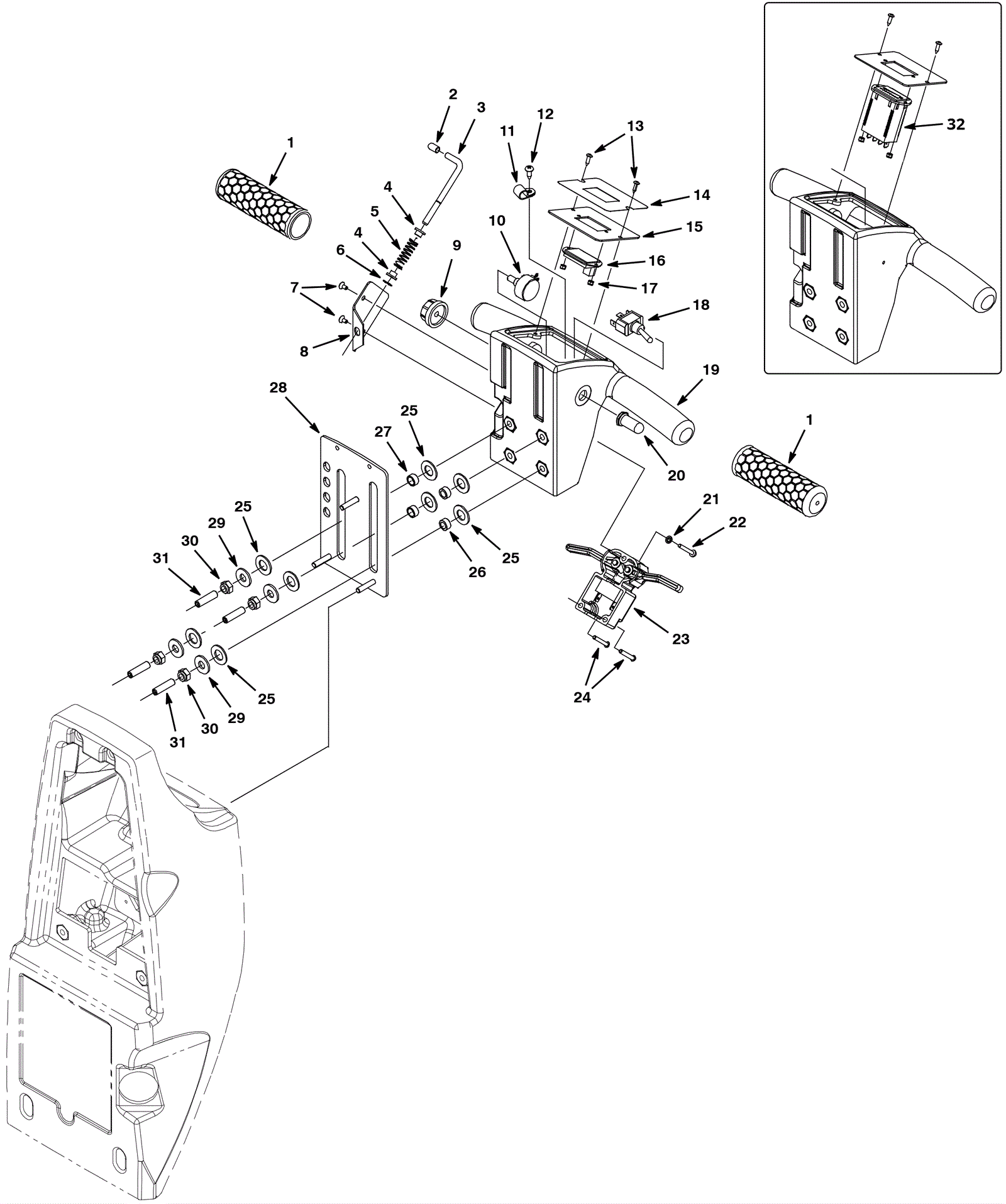

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
275-4706
|
Handle grip |
$6.27
|
2 |
|
ships same day |
2 |
175-4278
|
Cap |
$3.00
|
1 |
|
usually ships 6-16 days |
3 |
175-4254
|
Adjustment lever |
$56.71
|
1 |
|
ships same day |
4 |
175-4255
|
Flanged bushing |
$1.98
|
2 |
|
ships same day |
5 |
175-4256
|
Compression spring |
$12.21
|
1 |
|
ships same day |
6 |
175-4252
|
Retaining ring |
$3.60
|
1 |
|
ships same day |
7a |
999-0534
|
Screw M4-.7 x 10mm pan head slotted zinc |
$0.99
|
2 |
(between SN 10432128-40000000 and SN 80004370-90000000) |
ships same day |
7b |
175-4251
|
Screw M4 x 8mm flat head phillips |
$3.19
|
2 |
(between SN 10000000-10432127 and SN 80000000-80004369) |
ships same day |
8 |
175-4250
|
Retainer plate |
$9.20
|
1 |
|
ships same day |
9 |
275-4714
|
Knob |
$15.18
|
1 |
(drive) |
ships same day |
10 |
175-7847
|
Potentiometer assembly |
$81.18
|
1 |
(drive) |
ships same day |
11 |
175-0339
|
P clamp |
$3.00
|
1 |
|
usually ships 6-16 days |
12 |
175-5815
|
Screw 10 x 1/2 pan head phillips black |
$2.80
|
1 |
|
ships same day |
13 |
999-0447
|
Screw 6-32 x 1/2 pan head phillips zinc plated |
$0.99
|
2 |
|
ships same day |
14 |
275-5889
|
Upper panel decal |
$7.30
|
1 |
(drive) |
usually ships 1-5 days |
15 |
275-5874
|
Battery indicator panel |
$704.54
|
1 |
|
ships same day |
16 |
175-4935
|
36V Battery gauge |
$89.10
|
1 |
(drive) |
ships same day |
17 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
$0.99
|
2 |
|
ships same day |
18 |
175-3103
|
Toggle switch |
$60.72
|
1 |
(drive) |
ships same day |
19a |
275-5890
|
Upper handle console |
$205.15
|
1 |
(drive) (between SN 10432128-40000000 and SN 80004370-90000000) |
usually ships 6-16 days |
19b |
275-5891
|
Upper handle console kit |
$188.20
|
1 |
(drive) (between SN 10000000-10432127 and SN 80000000-80004369) |
usually ships 6-16 days |
19c |
275-5875
|
Upper handle |
$4.98
|
1 |
(brush assist) (between SN 10432128-40000000 and SN 80004370-90000000) |
ships same day |
19d |
275-5876
|
Upper console kit |
$216.50
|
1 |
(brush assist) (between SN 10000000-10432127 and SN 80000000-80004369) |
usually ships 6-16 days |
20 |
175-3104
|
Switch boot |
$19.91
|
1 |
(drive) |
ships same day |
21 |
999-1083
|
Washer #8 internal star lock stainless steel |
$0.99
|
1 |
|
ships same day |
22 |
999-1672
|
Screw M4-.7 x 30mm pan head phillips stainless steel |
$0.99
|
1 |
|
ships same day |
23 |
275-6389
|
Control box trigger assembly |
$17.82
|
1 |
|
ships same day |
24 |
275-5878
|
Screw 8-18 x 1.12 pan head |
$1.30
|
2 |
|
usually ships 6-16 days |
25 |
999-0566
|
Washer 1/2 flat nylon |
$0.99
|
8 |
|
ships same day |
26 |
175-4269
|
Bearing |
$3.60
|
2 |
|
usually ships 6-16 days |
27 |
175-4270
|
Bearing |
$3.60
|
2 |
|
usually ships 6-16 days |
28 |
275-5879
|
Plate |
$37.30
|
1 |
|
usually ships 6-16 days |
29 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
30 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
$0.99
|
4 |
|
ships same day |
31a |
175-4271
|
Screw M8 x 35mm set |
$3.60
|
4 |
(between SN 10432128-40000000 and SN 80004370-90000000) |
usually ships 6-16 days |
31b |
275-5880
|
Screw M8 x 30 with patch (OBSOLETE) |
Call for price
|
4 |
(between SN 10000000-10432127 and SN 80000000-80004369) |
usually ships 1-5 days |
32 |
175-7866
|
24V battery indicator |
$265.21
|
1 |
(brush assist) |
ships same day |
