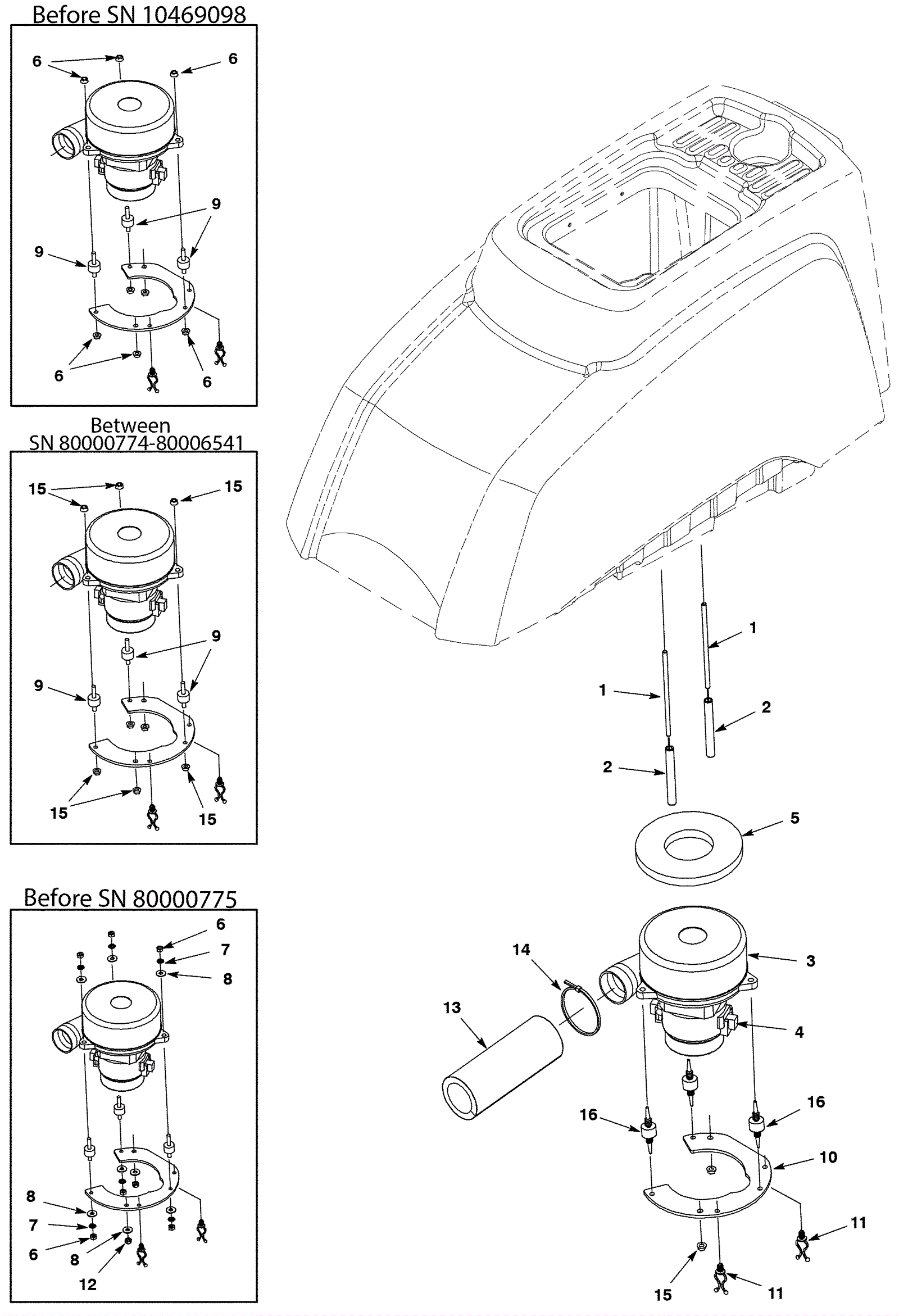

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-7788
|
Rod M6-1 x 5.5mm full thread |
2 |
|
|
2 |
175-7789
|
Steel spacer |
2 |
|
|
3a |
175-7790
|
24V 2 stage vacuum fan |
1 |
(OEM) (includes 4) |
|
3b |
991-1203-D
|
24V 2 stage vacuum motor tangential with Delphi plug |
1 |
(NON-OEM) |
|
4 |
175-7791
|
Carbon brush (pkg of 2) |
1 |
|
|
5 |
175-6085
|
Gasket |
1 |
|
|
6 |
999-1308
|
Nut M6-1 hex stainless steel |
6 |
(between SN 80000000-80000775) |
|
7 |
175-4544
|
Washer M6 locking |
6 |
(between SN 80000000-80000775) |
|
8 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
(between SN 80000000-80000775) |
|
9 |
675-9898
|
Vibration isolator |
3 |
(before SN 10469098) (between SN 80000000-80006540) |
|
10 |
175-7793
|
Vacuum motor mounting bracket |
1 |
|
|
11 |
175-2095
|
Keeper clip |
2 |
|
|
12 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
(before SN 80000775) |
|
13 |
175-7794
|
Vacuum exhaust hose |
1 |
|
|
14 |
175-7795
|
Cable tie |
1 |
|
|
15 |
275-5085
|
Nut M6-1 x 16 hex head stainless steel |
2 |
(qty 8 before SN 10469098) (qty 8 between SN 80000774-80006541) |
|
16 |
275-9897
|
Isolator |
3 |
(between SN 10469098-40000000 and SN 80006541-90000000) |
|
