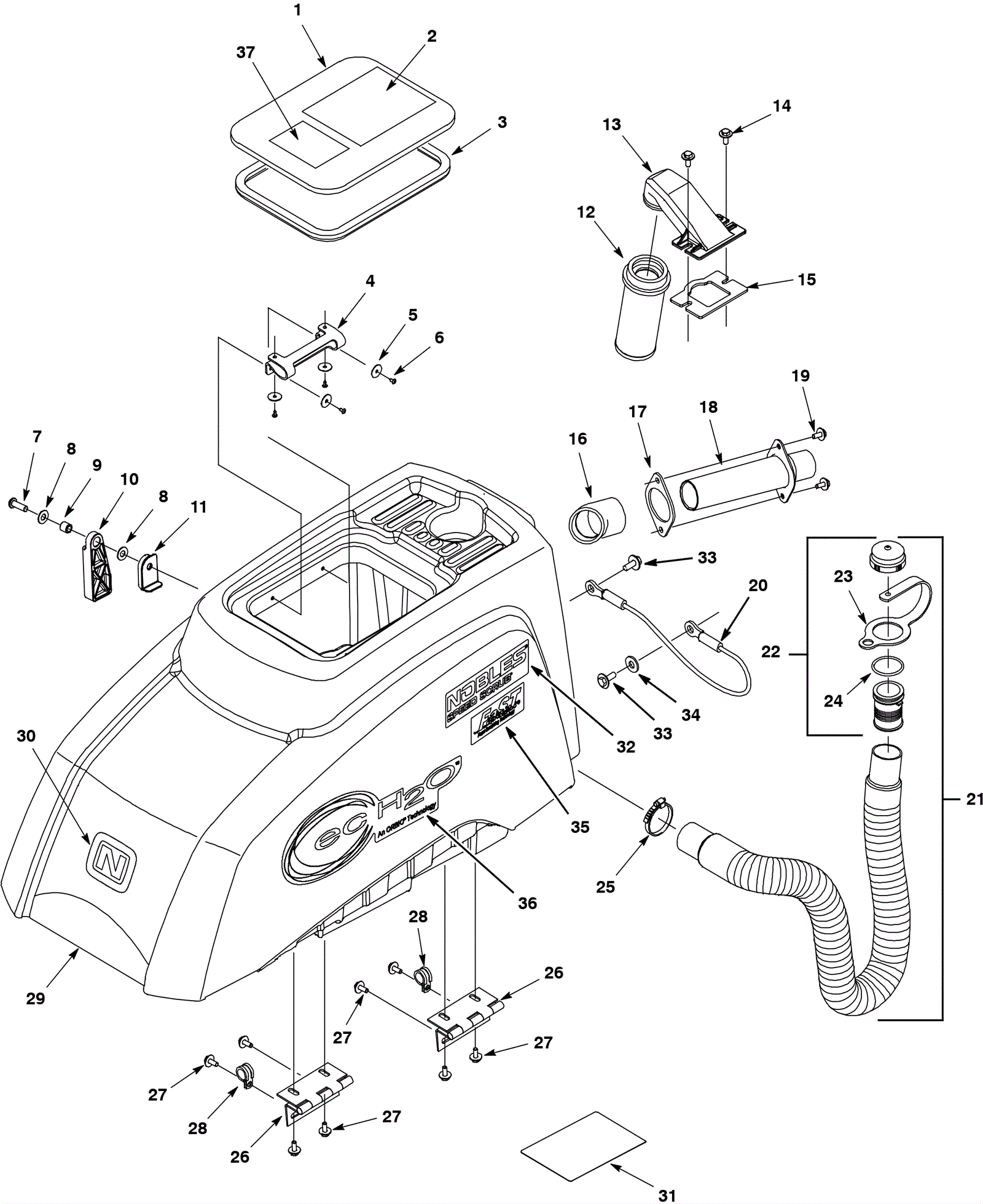

SS3 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-5782 Recovery tank lid $81.84 1 (includes 2 -3) usually ships 10-16 days
2 275-5863 Warning decal $39.93 1 usually ships 10-16 days
3 175-4673 Recovery tank lid gasket $58.30 1 usually ships 10-16 days
4 175-1803 Tank lid hinge $13.20 1 ships same day
5 175-5797 Washer 1/6 flat zinc $4.49 4 usually ships 10-16 days
6 999-0434 Screw 6 x 3/8 pan head phillips $0.99 4 ships same day
7 275-5864 Screw M8 x 30mm button head (black) $1.98 1 ships same day
8 999-0024 Washer 5/16 flat stainless steel $1.34 2 usually ships 12-18 days
9 175-2249 Sleeve $4.22 1 ships same day
10 275-1374 Support prop (black) $5.83 1 ships same day
11 175-2870 Support bracket $4.62 1 usually ships 10-16 days
12 175-1804 Shut-off float $82.72 1 ships same day
13 175-7782 Float mount $33.55 1 usually ships 10-16 days
14 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
15 175-7783 Float mount gasket $5.50 1 usually ships 10-16 days
16 275-5865 Plastic fitting $16.94 1 ships same day
17 275-1371 Hose adapter gasket $4.62 1 ships same day
18 275-1372 Hose tube adapter $10.56 1 usually ships 10-16 days
19 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
20 175-2651 Support cable $28.05 1 ships same day
21a 175-7785 Recovery drain hose assembly $112.42 1 (includes 22-24) (OEM) ships same day
21b 991-5138 27 inch recovery drain hose assembly $43.00 1 (NON-OEM) ships same day
22a 175-4214 Drain plug assembly $21.78 1 (inludes 23-24) (OEM) ships same day
22b 991-3028 Drain plug assembly $14.39 1 (NON-OEM) ships same day
23 175-4214 Drain plug assembly $21.78 1 ships same day
24 175-5804 O-ring $12.65 1 usually ships 10-16 days
25 997-2000 Hose clamp $2.37 1 ships same day
26 175-7787 Hinge $26.40 2 ships same day
27 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 8 ships same day
28 175-7808 1/2 inch insulated P clamp $5.15 2 usually ships 1-5 days
29 275-5866 Recovery tank $851.62 1 (includes 30-32) usually ships 1-5 days
30 275-5867 Front decal $10.89 1 ships same day
31 175-7798 Battery instruction decal $14.63 1 usually ships 1-5 days
32 175-2881 Speedscrub side decal $13.09 2 ships same day
33 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
34 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
35 275-7398 FaST decal $12.98 2 usually ships 1-5 days
36 275-7399 Ec-H2O decal $33.00 2 usually ships 1-5 days
37 275-6618 Do not add detergent decal (ec-H2O) $9.79 1 usually ships 10-16 days
