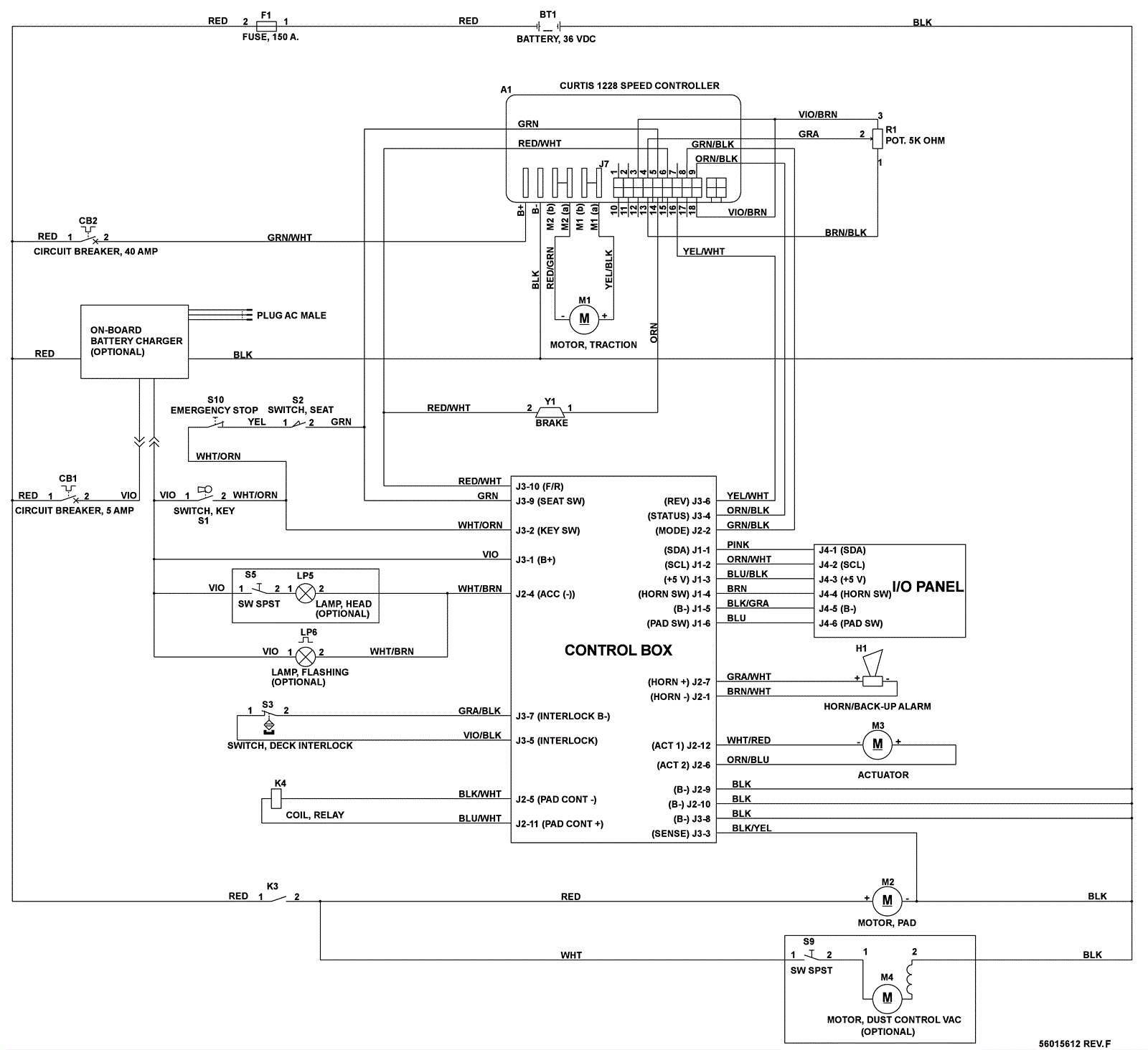

ADVOLUTION 2710 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
A1a 272-9440 Speed controller $862.04 1 usually ships 16-41 days
A1b 272-9438 Control box assembly $1,059.12 1 (before SN 2062973) usually ships 1-5 days
A1c 272-9438 Control box assembly $1,059.12 1 (after SN 2062974) usually ships 1-5 days
A1d 272-9439 On/off panel assembly $487.51 1 usually ships 16-41 days
BT NOTE 2 Please See Batteries and Charger Page Call for price usually ships 1-5 days
CB1 991-1628 5amp circuit breaker $13.40 1 (control) usually ships 16-41 days
CB2 272-9436 40amp circuit breaker $261.33 1 (traction drive) ships same day
F1a 172-8836 150amp fuse $19.15 1 usually ships 16-41 days
F1b 991-3061 150amp fuse $48.06 1 ships same day
H1 172-8839 Backup alarm $51.28 1 usually ships 16-41 days
LP5 172-3498 Headlight kit $313.32 1 (optional) usually ships 1-5 days
LP6 272-9485 Warning beacon $447.72 1 (optional) usually ships 1-5 days
M1a 272-9423 Drive motor wheel $4,174.63 1 usually ships 1-5 days
M1b 272-8592 Drive wheel tire kit $1,446.96 1 usually ships 16-41 days
M1c N/A Not available Call for price 1 (Motor) usually ships 3-26 days
M1d 272-8594 Brush and spring kit $164.67 1 usually ships 16-41 days
M1e 272-8595 Tire $909.79 1 usually ships 1-5 days
M1f 272-8596 Electromagnetic brake $992.62 1 usually ships 1-5 days
M1g 272-8597 Gearbox motor cover $46.92 1 usually ships 16-41 days
M1h 272-8598 Drive motor cover $89.61 1 usually ships 1-5 days
M2a N/A Not available Call for price 1 (Brush motor) usually ships 3-26 days
M2b 272-9458 Brush and spring kit $190.18 1 usually ships 1-5 days
M3a 172-8921 Actuator $537.16 1 usually ships 16-41 days
M3b N/A Not available Call for price 2 (Limit switch) usually ships 3-26 days
M3c N/A Not available Call for price 1 (Brush kit) usually ships 3-26 days
R1 172-2039 5K potentiometer $61.41 1 ships same day
S1a 172-3785 Key switch with two keys $64.90 1 (main) usually ships 1-5 days
S1b 991-1634 Key (pkg of 2) $10.67 1 ships same day
