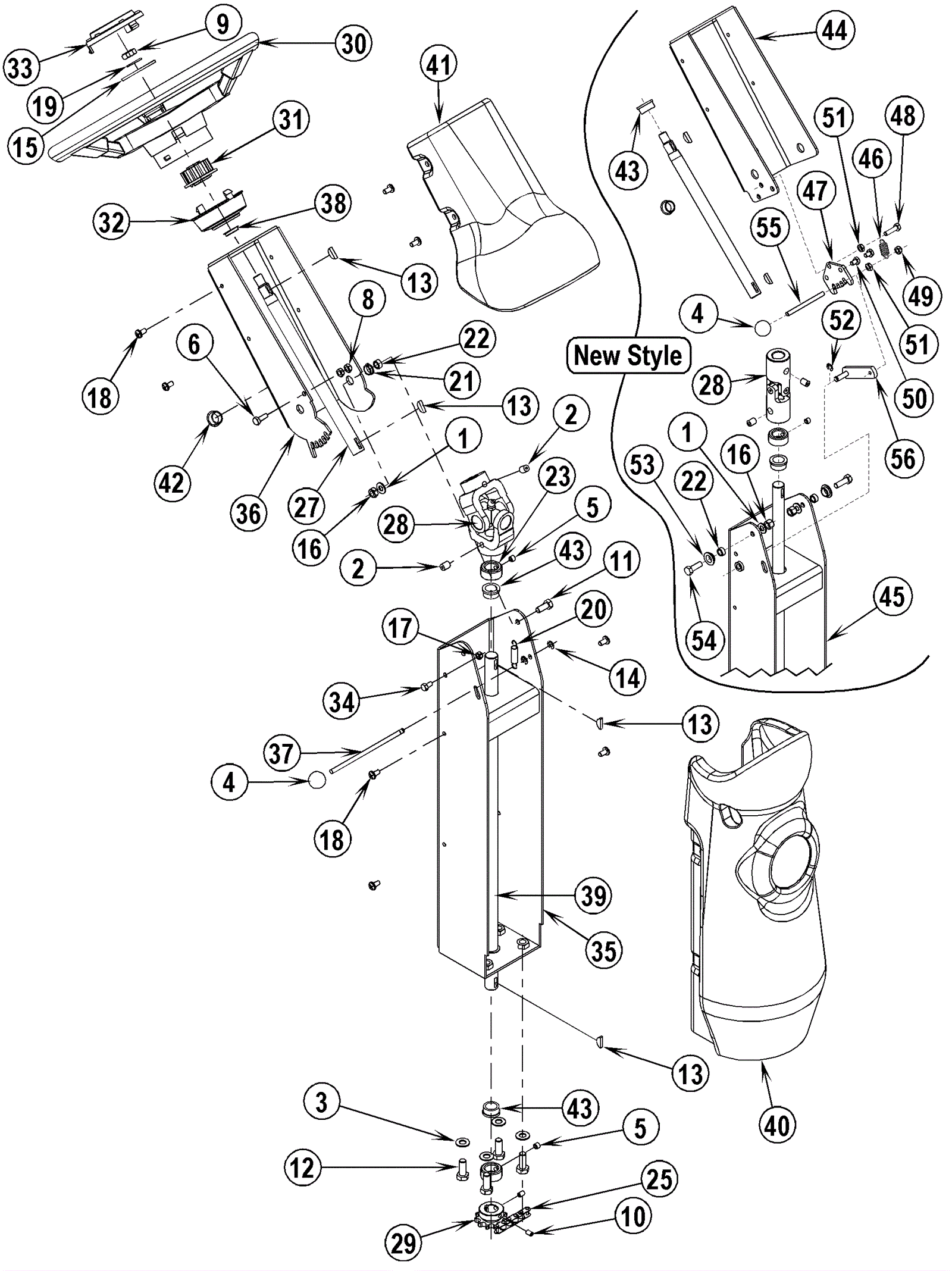

ADVOLUTION 2710 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
2 999-1373 Screw 3/8-16 x 3/8 socket set lock stainless steel $6.34 2 usually ships 1-5 days
3 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
4 172-2674 Knob $11.99 1 ships same day
5 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 2 ships same day
6 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 (before SN 1942960) ships same day
8 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 (before SN 1942960) ships same day
9 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 1 ships same day
10 272-1454 Screw 1/4-20 X 3/8 socket set lock $11.99 2 usually ships 1-5 days
11 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 (before SN 1942960) ships same day
12 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 4 ships same day
13 172-9387 Woodruff key $11.99 4 usually ships 16-41 days
14 172-0392 Retaining ring $10.56 2 (before SN 1942960) usually ships 16-41 days
15 999-1363 Washer 7/8 flat stainless steel $3.48 1 ships same day
16 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
17 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 (before SN 1942960) ships same day
18 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 8 ships same day
19 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
20 172-9056 Extension spring $11.99 1 (before SN 1942960) usually ships 16-41 days
21 172-8919 Flanged bearing $11.99 2 (before SN 1942960) usually ships 16-41 days
22 172-4008 Bushing $32.55 2 ships same day
23 172-0115 Shaft collar $28.46 2 usually ships 16-41 days
25 172-9068 Roller chain $68.62 1 ships same day
27 172-9072 Upper steering shaft $124.26 1 usually ships 1-5 days
28 172-9074 Universal joint $231.75 1 usually ships 1-5 days
29 172-8093 Sprocket $93.14 1 usually ships 16-41 days
30 172-9075 Steering wheel $179.06 1 usually ships 16-41 days
31 172-9078 Steering wheel adapter $41.84 1 usually ships 1-5 days
32 172-9076 Cup $19.45 1 usually ships 1-5 days
33 172-9077 Cap $34.66 1 usually ships 1-5 days
34 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 1 (before SN 1942960) ships same day
35 272-1229 Lower column $269.71 1 (before SN 1942960) usually ships 1-5 days
36 172-3487 Upper column $97.47 1 (before SN 1942960) usually ships 16-41 days
37 172-3488 Locking rod $41.84 1 (before SN 1942960) usually ships 16-41 days
38 172-3489 Bearing nyliner $13.40 1 (before SN 1942960) usually ships 16-41 days
39 272-9474 Lower steering shaft $68.62 1 usually ships 1-5 days
40 172-3491 Lower column shroud $107.65 1 usually ships 1-5 days
41 172-3492 Upper column shroud $39.47 1 usually ships 1-5 days
42 172-1803 Plug $11.99 1 usually ships 1-5 days
43 172-9388 Flanged bearing $13.40 2 (qty of 3 after SN 1942959) usually ships 16-41 days
44 272-9484 Upper column $110.44 1 (after SN 1942959) usually ships 16-41 days
45 472-8232 STEERING UPGRADE KIT $440.37 1 (after SN 1942959) usually ships 16-41 days
46 272-9479 Extension spring $13.40 1 (after SN 1942959) usually ships 16-41 days
47 272-9480 Steering column ratchet $11.99 1 (after SN 1942959) usually ships 16-41 days
48 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 1 (after SN 1942959) ships same day
49 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 (after SN 1942959) ships same day
50 272-1538 Bolt 1/4-20 X 3/8 hex head lock $11.99 2 (after SN 1942959) usually ships 1-5 days
51 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 (after SN 1942959) ships same day
52 172-0294 Retaining ring $11.99 1 (after SN 1942959) usually ships 16-41 days
53 272-9481 Flanged bearing $15.07 2 (after SN 1942959) usually ships 16-41 days
54 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 (after SN 1942959) ships same day
55 272-9482 Rod $11.99 1 (after SN 1942959) usually ships 16-41 days
56 272-9483 Steering weldment $49.86 1 (after SN 1942959) usually ships 1-5 days
