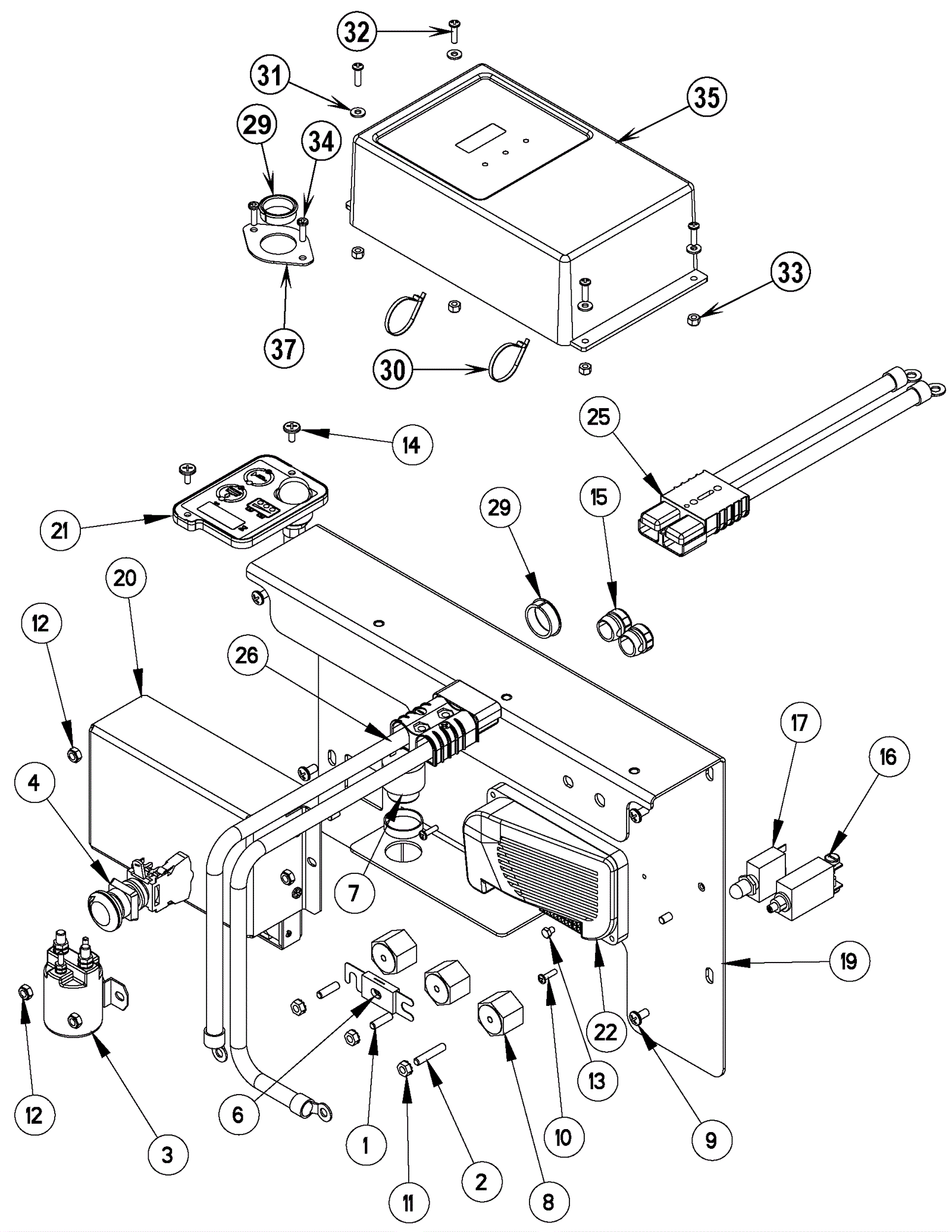

ADVOLUTION 2710 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-0345 Terminal stud $11.99 2 usually ships 16-41 days
2 172-0346 Stud 1/4-20 $11.99 1 ships same day
3 172-2805 36V contactor $97.47 1 ships same day
4 172-9233 Emergency stop button $261.33 1 usually ships 16-41 days
6a 172-8836 150amp fuse $19.15 1 usually ships 16-41 days
6b 991-3061 150amp fuse $48.06 1 ships same day
7 172-8839 Backup alarm $51.28 1 usually ships 16-41 days
8 172-0103 Electrical mount $13.40 3 usually ships 1-5 days
9 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 4 ships same day
10 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
11 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
12 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
13 172-4627 Screw 10-24 x 1/4 hex washer head thread form $11.99 1 usually ships 1-5 days
14 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 2 ships same day
15 272-9435 Strain relief $11.99 2 usually ships 1-5 days
16 272-9436 40amp circuit breaker $261.33 1 (drive wheel) ships same day
17 991-1628 5amp circuit breaker $13.40 1 (control circuit) usually ships 16-41 days
19 272-9437 Electronic panel $186.96 1 usually ships 1-5 days
20 272-9438 Control box assembly $1,059.12 1 usually ships 1-5 days
21a 272-9439 On/off panel assembly $487.51 1 (includes 021b and 021c) usually ships 16-41 days
21b 172-3785 Key switch with two keys $64.90 1 (includes 021c) usually ships 1-5 days
21c 991-1634 Key (pkg of 2) $10.67 1 ships same day
22 272-9440 Speed controller $862.04 1 usually ships 16-41 days
25 272-9443 Connector assembly $85.24 1 usually ships 16-41 days
26 272-9444 Connector assembly $106.08 1 usually ships 16-41 days
29 272-9447 Bushing $15.07 2 usually ships 16-41 days
30 997-2101 6 inch cable tie $0.99 2 ships same day
31 999-1862 Washer #10 flat SAE stainless steel $0.99 4 ships same day
32 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 4 ships same day
33 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
34 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B $0.99 2 ships same day
35 272-8575 36V onboard battery charger $2,087.25 1 usually ships 16-41 days
37 272-9448 Cord holder $23.95 1 usually ships 16-41 days
N/S 172-8828 Battery cable $46.92 5 ships same day
N/S 172-0223 Battery cable boot $9.02 12 ships same day
N/S 272-9441 Main harness $894.59 1 usually ships 1-5 days
N/S 272-9442 Traction harness $100.30 1 usually ships 16-41 days
N/S 272-9445 4/1 cable assembly (red) $19.45 1 usually ships 1-5 days
N/S 272-9446 4/2 cable assembly (red) $51.28 1 usually ships 1-5 days
