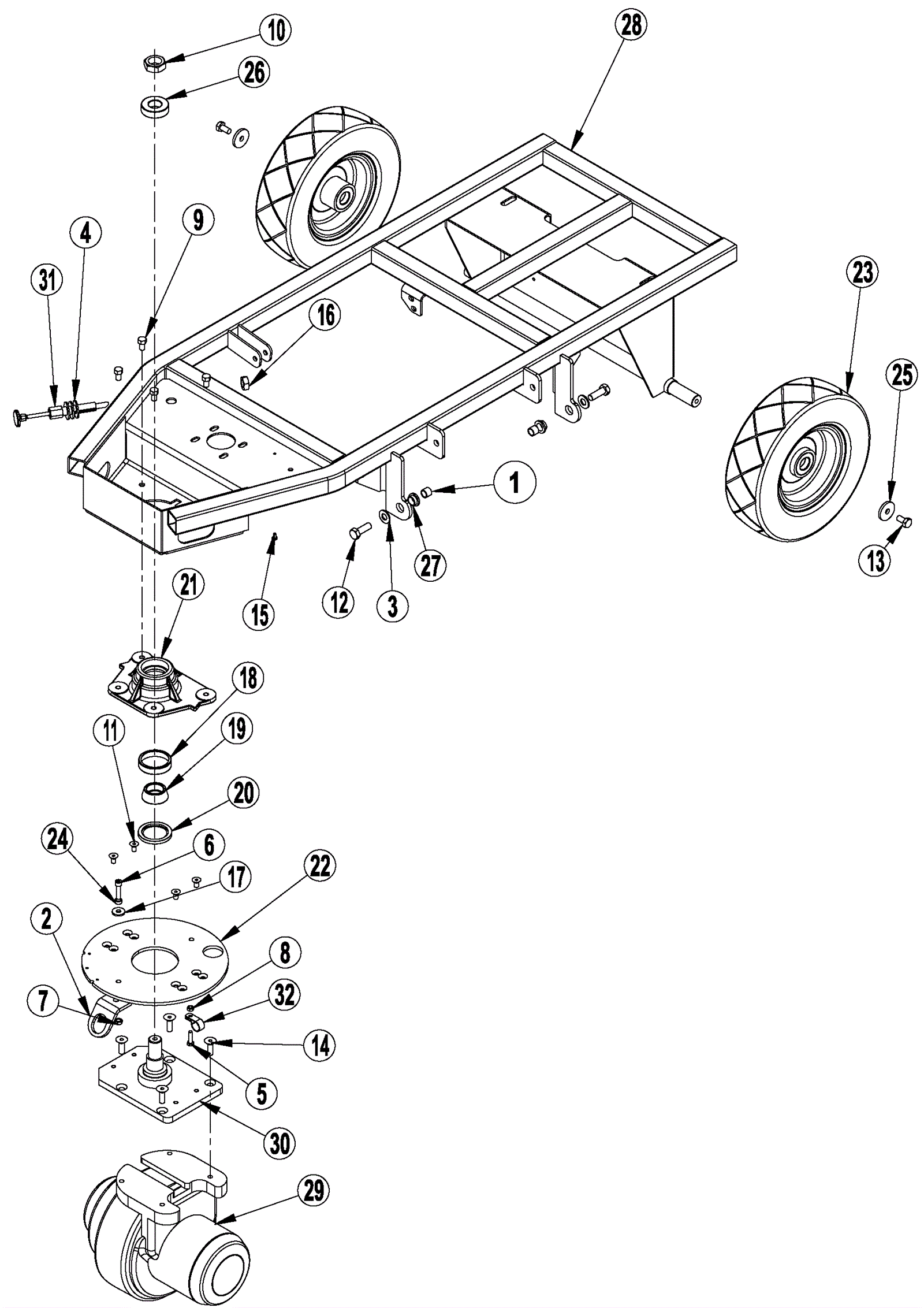

ADVOLUTION 2710 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-9420 Bushing M12 $11.69 2 usually ships 1-5 days
2 172-8867 Tie down bracket $85.24 1 usually ships 1-5 days
3 172-0550 Washer 33/64 x 3/4 flat $10.56 2 usually ships 16-41 days
4 999-0349 Washer 5/8 SAE flat $0.99 3 ships same day
5 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
6 999-0573 Screw 5/16-18 x 1 1/4 socket head alloy plain finish $0.99 1 ships same day
7 172-4883 Nut 3/4-10 hex nylok $11.99 1 usually ships 1-5 days
8 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
9 272-1652 Bolt 3/8-16 x 5/6 lock $11.99 4 usually ships 1-5 days
10 172-0951 Nut 1-14 hex thin nylock UNF $5.26 1 usually ships 1-5 days
11 999-1258 Screw 5/16-18 x 3/4 flat head phillips stainless steel $1.51 4 ships same day
12 999-1128 Bolt M12-1.75 x 35mm hex hd stainless steel part thread $6.60 2 ships same day
13 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock $11.99 2 usually ships 16-41 days
14 272-9421 Screw M10-1.5 x 25mm flathead socket $11.99 4 usually ships 1-5 days
15 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 1 ships same day
16 181-0988 Nut 5/8-18 hex jam lock $11.99 1 usually ships 1-5 days
17 172-2067 Washer 11/32 x 1/8 flat $11.99 1 usually ships 16-41 days
18 172-3315 Bearing cup $41.84 1 usually ships 16-41 days
19 172-3316 Bearing cone $67.20 1 usually ships 16-41 days
20 172-3317 Seal $52.69 1 usually ships 16-41 days
21 172-3319 Bearing block $223.84 1 usually ships 16-41 days
22 172-3320 Steering plate $201.47 1 usually ships 1-5 days
23 172-3283 Wheel and bearing assembly $298.24 2 ships same day
24 172-4008 Bushing $32.55 1 ships same day
25 272-1606 Washer flat $22.69 2 ships same day
26 172-0435 Top bearing $41.84 1 usually ships 16-41 days
27 272-1843 Flanged bearing $13.40 2 usually ships 16-41 days
28 272-9422 Chassis weldment $984.04 1 usually ships 1-5 days
29 272-9423 Drive motor wheel $4,174.63 1 usually ships 1-5 days
30 272-8599 Spindle weldment $209.34 1 usually ships 1-5 days
31 272-9425 Latch assembly $164.67 1 ships same day
32 172-2122 P clamp $11.99 1 usually ships 16-41 days
N/S 272-8592 Drive wheel tire kit $1,446.96 1 usually ships 16-41 days
N/S 272-8594 Brush and spring kit $164.67 1 usually ships 16-41 days
N/S 272-8595 Tire $909.79 1 usually ships 1-5 days
N/S 272-8596 Electromagnetic brake $992.62 1 usually ships 1-5 days
N/S 272-8597 Gearbox motor cover $46.92 1 usually ships 16-41 days
N/S 172-8810 Ball bearing $88.06 1 usually ships 1-5 days
N/S 272-8598 Drive motor cover $89.61 1 usually ships 1-5 days
N/S 272-8604 Tire puller kit $462.80 1 usually ships 1-5 days
