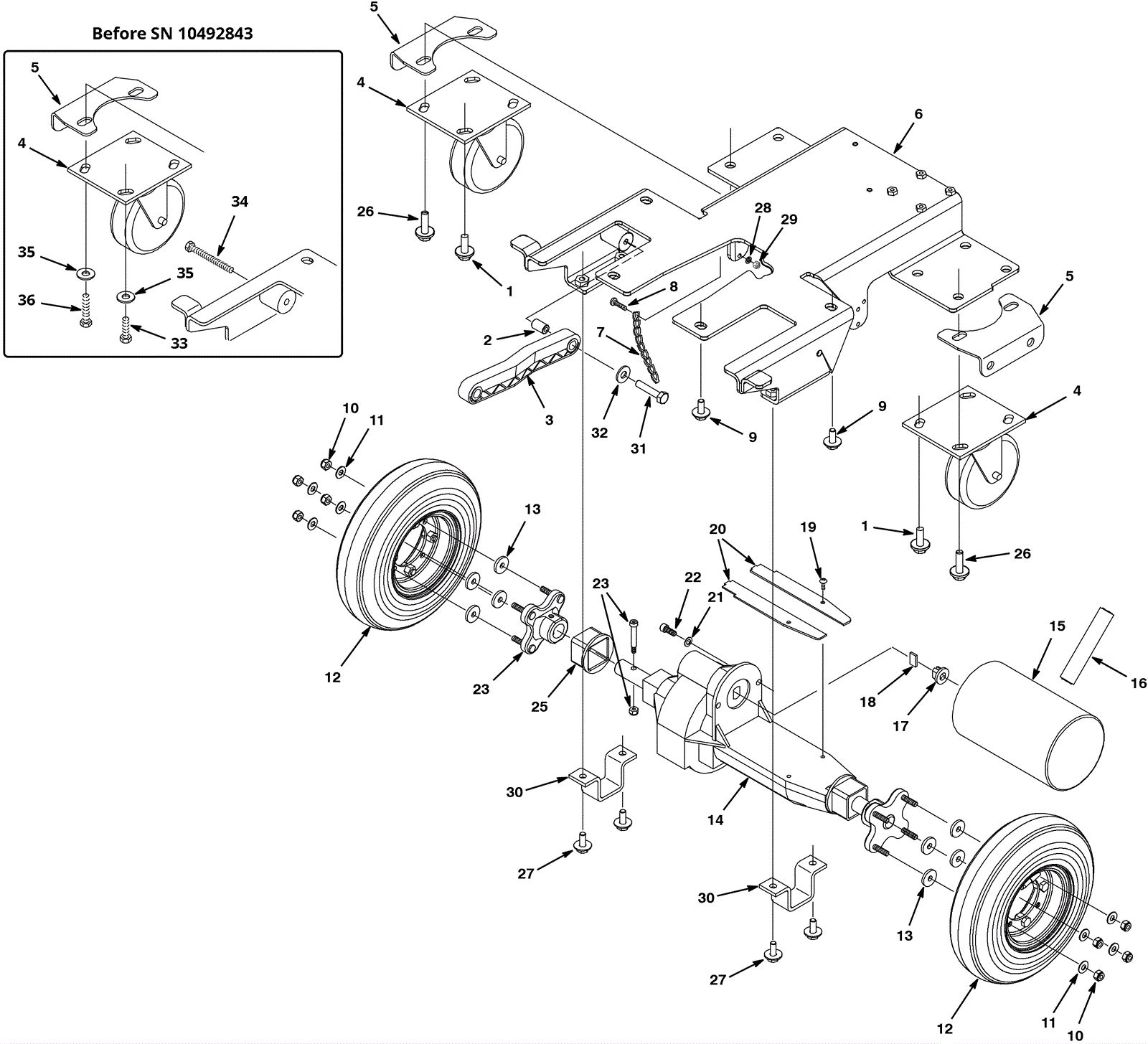

1610 Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-9082 Screw M8-1.25 x 25mm hex head stainless steel $1.85 4 (after SN 10492842) ships same day
2 175-4343 1 inch tube $6.27 2 ships same day
3 175-2102 Scrub head lifting arm $48.95 2 ships same day
4 175-2991 4 inch caster wheel $63.27 2 ships same day
5 175-8807 Caster tiedown bracket $17.93 2 usually ships 5-16 days
6 175-8808 Transaxle frame $316.03 1 usually ships 1-5 days
7 175-8876 Static chain $11.66 1 (after SN 10314331) usually ships 1-5 days
8 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel $0.99 1 ships same day
9 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 4 ships same day
10 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
11 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
12a 175-3652 Foam filled wheel $189.09 2 (after SN 10492842) ships same day
12b 175-4347 Wheel $124.74 2 (before SN 10492843) usually ships 5-16 days
13 175-1097 Washer flat stainless steel $4.73 8 ships same day
14a 475-2878 TRANSAXLE, 24VDC, 116RPM $2,157.76 1 (includes 14b-25) (after SN 10440492) usually ships 5-16 days
14b 175-3654 Transaxle body $2,093.96 1 usually ships 5-16 days
15 175-3657 24V transaxle motor $653.07 1 (includes 16-22) usually ships 5-16 days
16 175-7898 Carbon brush (pkg of 4) $65.45 1 ships same day
17 175-3655 Transaxle coupling $9.79 1 ships same day
18 175-3656 Transaxle key $10.01 1 usually ships 5-16 days
19 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc $0.99 2 ships same day
20 N/A Not available Call for price 2 (shaft cover) usually ships 3-26 days
21 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
22 175-3663 Screw 1/4-20 x 5/8 socket $2.42 2 usually ships 1-5 days
23 275-5229 Transaxle wheel hub with retainer $134.86 1 usually ships 5-16 days
25 175-3660 Transaxle sleeve $10.12 2 usually ships 5-16 days
26 999-1653 Screw M8-1.25 x 30mm hex head stainless steel $4.36 4 (after SN 10492842) ships same day
27 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 4 ships same day
28 999-1652 Washer M4.3 flat $1.93 1 (after SN 10314331) ships same day
29 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 1 (after SN 10314331) ships same day
30 175-4349 Transaxle bracket $36.74 2 usually ships 5-16 days
31 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 (after SN 10492843) ships same day
32 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
33 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 (before SN 10492843) ships same day
34 999-9079 Screw M8 x 80mm hex head stainless steel $4.41 2 (before SN 10492843) ships same day
35 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 8 (before SN 10492843) ships same day
36 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 4 (before SN 10492843) ships same day
N/S 175-0921 Wire tie $3.96 2 usually ships 5-16 days
