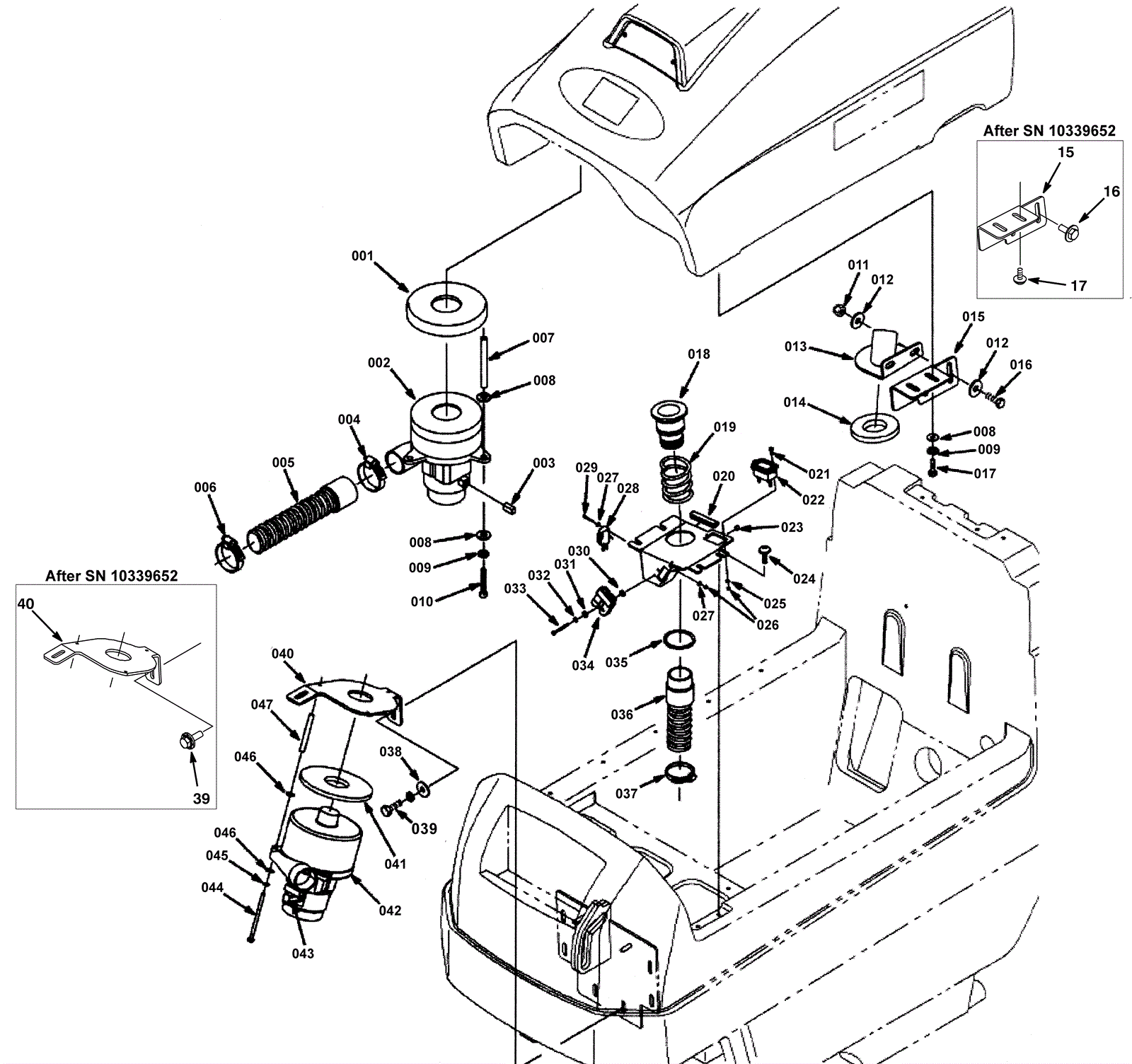

Vacuum Motor Assembly

#PartDescription ReqNotesAvailability
1 675-9893 Vacuum motor gasket 1
2 175-4245 24V 3 stage vacuum motor 1 (includes 3)
3 175-2658 Carbon brush (pkg of 2) 1
4 175-2057 Hose clamp 1
5 175-4246 Vacuum hose with one cuff 1
6 997-2000 Hose clamp 1
7 175-4243 Spacer 3
8 999-0016 Washer 1/4 flat plain finish 6
9 999-0632 Washer 1/4 split lock stainless steel 3
10 999-1169 Bolt M6-1 x 100mm hex head full thread plain finish 3
11 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
12 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
13 175-4247 Bracket 1
14 175-2028 Gasket 1
15 175-8789 Vacuum mounting bracket 1
16a 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2 (before SN 10339653)
16b 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2 (after SN 10339652)
17a 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2 (before SN 10339653)
17b 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2 (after SN 10339652)
18 175-3635 Transition tube 1
19 175-4353 Compression spring 1
20 175-8621 Plastic edging 1
21 999-0738 Screw M3-.5 x 16mm pan head phillips zinc 2
22 275-6915 Hourmeter gauge 1
23 999-0144 Nut 6-32 k-lock zinc plated 2
24 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
25 999-1521 Washer M3 flat stainless steel 2
26 999-1161 Nut M3-.5 hex nylock stainless steel 4
27 175-1202 Flat washer 4
28 175-4273 Switch 1
29 175-1333 Screw M3-.5 x 20mm hex head 2
30 999-0393 Washer 3/16 flat aluminum 2
31 999-1215 Washer #6 SAE flat zinc plated 2
32 999-0148 Washer #6 external star lock zinc plated 2
33 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
34 991-9284 50amp charger plug SB50 with pins (red) 1
35 175-4355 Retaining ring 1
36 175-8811 Vacuum hose 1 1/2 x 6 inch 1
37 997-2000 Hose clamp 1
38 175-4243 Spacer 3
39a 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 1 (before SN 10339653)
39b 999-9082 Screw M8-1.25 x 25mm hex head stainless steel 1 (after SN 10339652)
40 175-8813 Vacuum motor bracket 1
41 675-9893 Vacuum motor gasket 1
42 175-4361 24V 3 stage vacuum motor 1 (includes 43)
43 175-2658 Carbon brush (pkg of 2) 1
44 999-1169 Bolt M6-1 x 100mm hex head full thread plain finish 3
45 999-0632 Washer 1/4 split lock stainless steel 3
46 999-0016 Washer 1/4 flat plain finish 6
