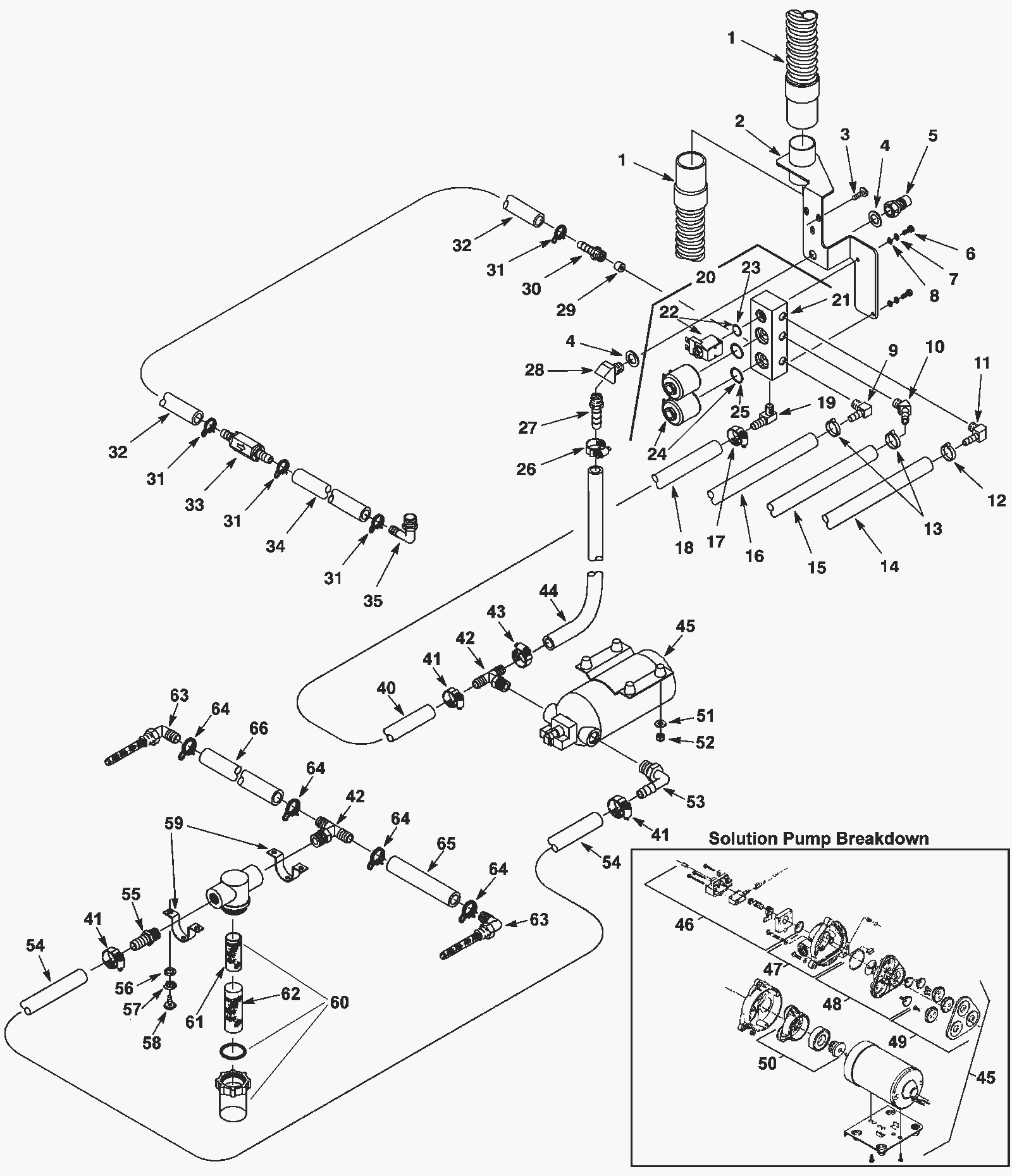

Solution Assembly - After SN 10314331

#PartDescription ReqNotesAvailability
1 175-0887 Vacuum hose 1 1/2 x 33 inch 2
2 275-5075 Vacuum hose bracket 1
3 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 3
4 999-0187 Washer 1/2 flat plain finish 2
5 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
6 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 2
7 999-9132 Washer M5 split lock stainless steel 2
8 999-0393 Washer 3/16 flat aluminum 2
9 175-2997 Elbow 1
10 175-3061 Hosebarb 1
11 175-4307 Hosebarb 1
12 175-6170 Hose clamp 1
13 175-6032 Hose clamp 2
14 275-5071 Hose 1/4 x 1/2 x 33 inches (gray) 33 inch
15 275-5074 Hose 3/8 x 75 inch 72 inch
16 275-3863 Hose 3/8 x 40 inch (gray) 41 inch
17 175-6081 Hose clamp 1
18 175-8699 Hose 1/2 x 20 inch 18 inch
19 175-5226 Brass fitting 1
20 275-5076 24V 3 station solenoid valve 1 (includes 21-25)
21 275-5077 Manifold block 1
22 275-5078 24V series 3 solenoid valve 1 (includes 23)
23 275-5079 Solenoid seal 1
24 275-5080 24V series 6 solenoid valve 2 (includes 25)
25 275-5081 Solenoid seal 2
26 175-0199 Hose clamp 1
27 175-6030 Straight hosebarb 1
28 175-6031 Straight jet fitting 1
29 175-8875 Pipe plug 1
30 175-8694 Brass fitting 1
31 175-3671 Hose clamp 4
32 275-5082 20 inch hose 21 inch
33 175-2842 Check valve 1
34 175-8662 Hose 3/8 x 7 3/4 inch 5 inch
35 175-6019 90 degree barbed elbow 1
40 175-8699 Hose 1/2 x 20 inch 18 inch
41 175-6081 Hose clamp 3
42 175-3692 Tee fitting 2
43 175-0199 Hose clamp 1
44 175-4298 11 inch hose (red) 10 inch
45 175-4191 24V 100PSI solution pump 1 (includes 46a-50)
45b 991-6047 24V pump 100PSI (NON-OEM)
46a 175-6003 Pressure switch kit 1
46b 175-6004 Viton pressure switch kit 1
46c 175-6005 Shurflo diaphragm switch kit 1
47a 175-6006 Upper pump housing kit 1
47b 175-6007 Check valve kit 1
48 175-6008 Viton valve kit 1
49 175-6009 Shurflo valve kit 1
50 175-6010 Lower pump housing kit 1
51 999-0006 Washer 3/16 flat zinc plated 2
52 999-0442 Nut 10-24 nylon insert lock stainless steel 2
53 175-3685 90 degree elbow fitting 1
54 175-8684 15 inch reinforced hose 12 inch
55 175-1025 Straight brass fitting 1
56 999-0393 Washer 3/16 flat aluminum 4
57 999-9132 Washer M5 split lock stainless steel 4
58 999-1225 Screw M5-.8 x 12mm pan head phillips zinc 4
59 175-3690 U clamp 2
60 175-4310 Solution filter bowl assembly 1 (includes 61)
61 175-6250 Strainer 1
62 175-4311 Mesh filter screen 1
63 175-4303 Inline filter with mesh screen 2
64 375-0291 Hose clamp 4
65 175-8873 Hose 1/2 x 3/4 inch 4 inch
66 175-8874 Hose 1/2 x 3/4 inch 9 inch
