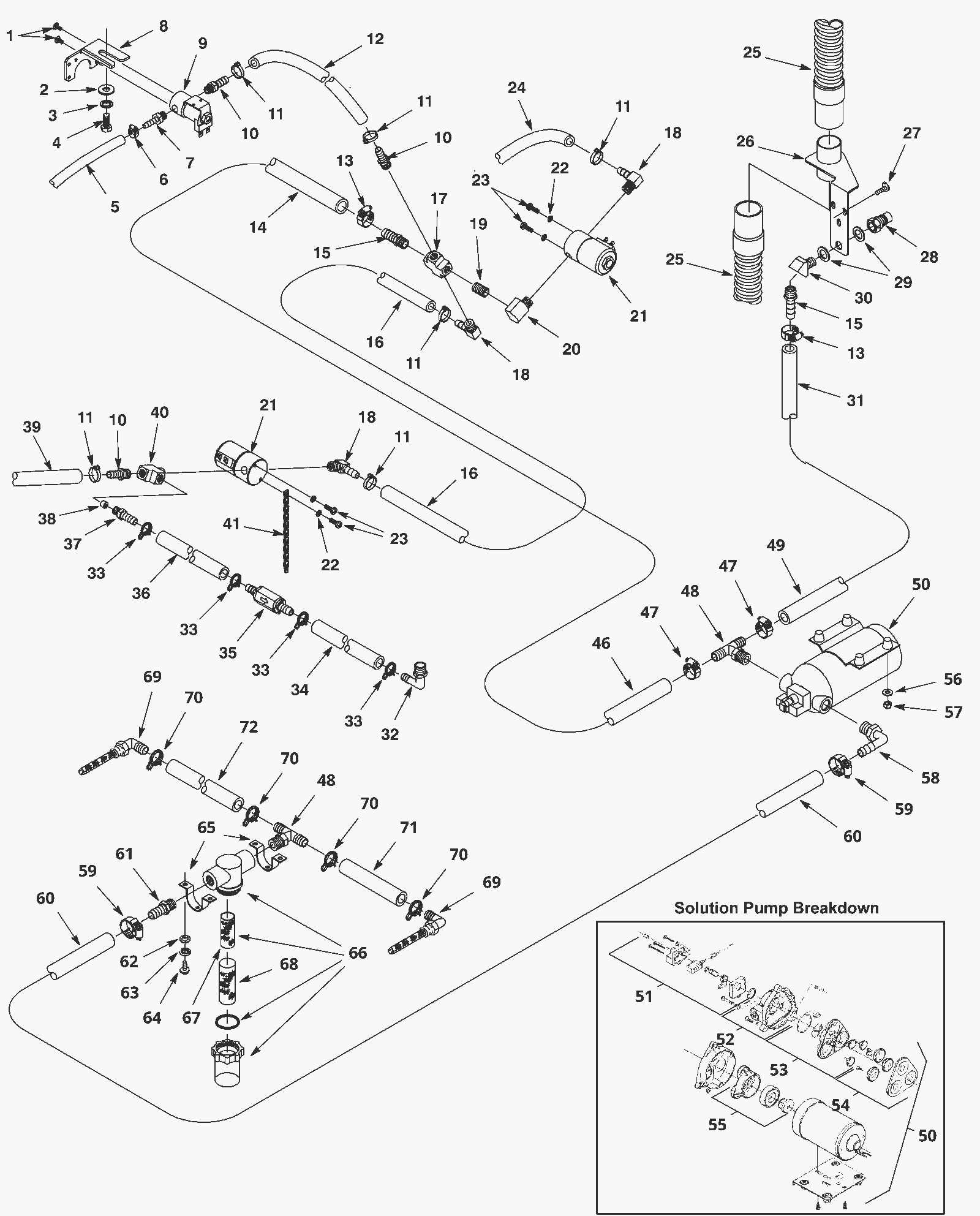

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1165
|
Screw 8-32 x 3/8 truss head phillips stainless steel |
2 |
|
|
2 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
3 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
1 |
|
|
4 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
|
5 |
175-7302
|
Hose 1/4 x 1/2 x 8 inches (gray) |
8 inch |
|
|
6 |
175-6170
|
Hose clamp |
1 |
|
|
7 |
175-6024
|
Hosebarb |
1 |
|
|
8 |
175-8776
|
Bracket (OBSOLETE) |
1 |
|
|
9 |
175-4308
|
24V solenoid valve |
1 |
|
|
10 |
175-2613
|
Straight brass fitting |
3 |
|
|
11 |
175-6032
|
Hose clamp |
6 |
|
|
12 |
175-8871
|
Hose 3/8 x 8 inch |
8 inch |
|
|
13 |
175-0199
|
Hose clamp |
4 |
|
|
14 |
175-4298
|
11 inch hose (red) |
8 inch |
|
|
15 |
175-6030
|
Straight hosebarb |
2 |
|
|
16 |
175-8871
|
Hose 3/8 x 8 inch |
7 inch |
|
|
17 |
175-1829
|
Tee fitting |
1 |
|
|
18 |
175-2997
|
Elbow |
3 |
|
|
19 |
175-6244
|
Nipple |
1 |
|
|
20 |
175-2614
|
90 degree elbow fitting |
1 |
|
|
21 |
175-8872
|
24V solenoid valve |
2 |
|
|
22 |
999-1026
|
Washer #10 internal lock stainless steel |
4 |
|
|
23 |
999-0726
|
Screw 10-32 x 5/8 pan head phillips zinc plated |
4 |
|
|
24 |
175-8870
|
Hose 3/8 x 62 inch |
61 inch |
|
|
25 |
175-0887
|
Vacuum hose 1 1/2 x 33 inch |
2 |
|
|
26 |
175-4302
|
Bracket |
1 |
|
|
27 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
3 |
|
|
28 |
991-8150
|
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
|
29 |
999-0187
|
Washer 1/2 flat plain finish |
2 |
|
|
30 |
175-6031
|
Straight jet fitting |
1 |
|
|
31 |
175-4298
|
11 inch hose (red) |
10 inch |
|
|
32 |
175-6019
|
90 degree barbed elbow |
1 |
|
|
33 |
175-3671
|
Hose clamp |
4 |
|
|
34 |
175-8662
|
Hose 3/8 x 7 3/4 inch |
8 inch |
|
|
35 |
175-2842
|
Check valve |
1 |
|
|
36 |
175-8662
|
Hose 3/8 x 7 3/4 inch |
8 inch |
|
|
37 |
175-8694
|
Brass fitting |
1 |
|
|
38 |
175-8875
|
Pipe plug |
1 |
|
|
39 |
175-1978
|
Hose 3/8 x 24 inch |
24 inch |
|
|
40 |
175-6029
|
Straight tee |
1 |
|
|
41 |
175-8876
|
Static chain |
1 |
|
|
46 |
175-4298
|
11 inch hose (red) |
8 inch |
|
|
47 |
175-0199
|
Hose clamp |
4 |
|
|
48 |
175-3692
|
Tee fitting |
2 |
|
|
49 |
175-4298
|
11 inch hose (red) |
10 inch |
|
|
50 |
175-4191
|
24V 100PSI solution pump |
1 |
(includes 51a-55) |
|
50b |
991-6047
|
24V pump 100PSI |
|
(NON-OEM) |
|
51a |
175-6003
|
Pressure switch kit |
1 |
|
|
51b |
175-6004
|
Viton pressure switch kit |
1 |
|
|
51c |
175-6005
|
Shurflo diaphragm switch kit |
1 |
|
|
52a |
175-6006
|
Upper pump housing kit |
1 |
|
|
52b |
175-6007
|
Check valve kit |
1 |
|
|
53 |
175-6008
|
Viton valve kit |
1 |
|
|
54 |
175-6009
|
Shurflo valve kit |
1 |
|
|
55 |
175-6010
|
Lower pump housing kit |
1 |
|
|
56 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
57 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
2 |
|
|
58 |
175-3685
|
90 degree elbow fitting |
1 |
|
|
59 |
175-6081
|
Hose clamp |
2 |
|
|
60 |
175-8684
|
15 inch reinforced hose |
12 inch |
|
|
61 |
175-1025
|
Straight brass fitting |
1 |
|
|
62 |
999-0393
|
Washer 3/16 flat aluminum |
4 |
|
|
63 |
999-9132
|
Washer M5 split lock stainless steel |
4 |
|
|
64 |
999-1225
|
Screw M5-.8 x 12mm pan head phillips zinc |
4 |
|
|
65 |
175-3690
|
U clamp |
2 |
|
|
66 |
175-4310
|
Solution filter bowl assembly |
1 |
(includes 67) |
|
67 |
175-6250
|
Strainer |
1 |
|
|
68 |
175-4311
|
Mesh filter screen |
1 |
|
|
69 |
175-4303
|
Inline filter with mesh screen |
2 |
|
|
70 |
375-0291
|
Hose clamp |
4 |
|
|
71 |
175-8873
|
Hose 1/2 x 3/4 inch |
4 inch |
|
|
72 |
175-8874
|
Hose 1/2 x 3/4 inch |
9 inch |
|
|
