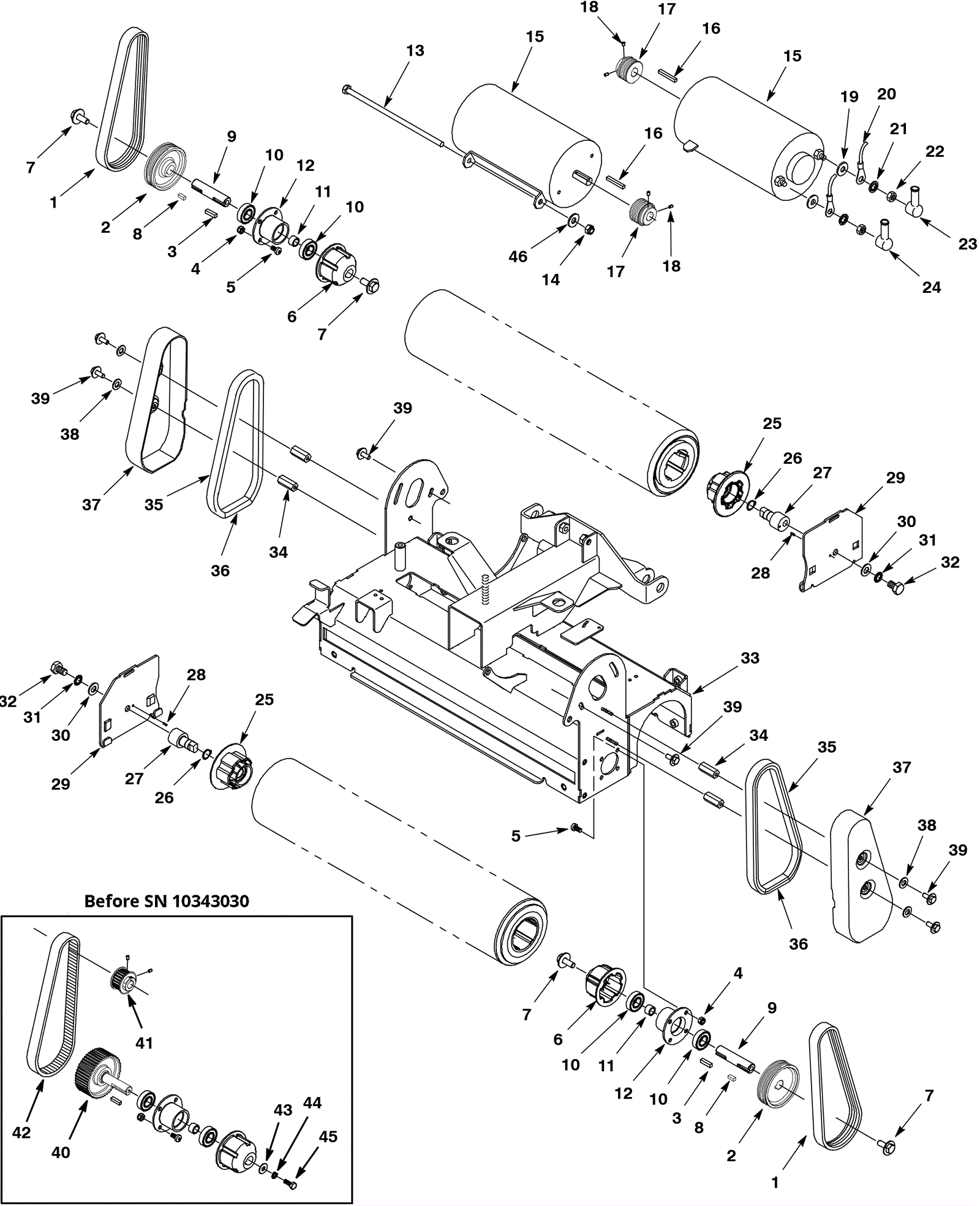

1610 Brush Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-4735 Drive belt $34.32 2 (after SN 10343029) ships same day
2 275-4737 Sheave $111.76 2 (after SN 10343029) usually ships 5-16 days
3 175-8818 Square keyway $3.30 2 usually ships 5-16 days
4 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 8 ships same day
5 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel $0.99 8 ships same day
6 175-8819 Drive plug $54.78 2 ships same day
7 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 4 ships same day
8 275-1489 KEY, SQ, 0.19 X 0.19, 0.50L (Tennant Industrial) $6.01 2 (after SN 10343029) ships same day
9 275-1492 Drive shaft $142.23 2 (after SN 10343029) ships same day
10 175-2471 Ball bearing $18.81 4 ships same day
11 175-8820 Spacer $15.62 2 ships same day
12 175-8821 Bearing housing $120.56 2 usually ships 5-16 days
13 275-9683 Screw M8-1.25 x 210mm hex head $19.36 2 usually ships 1-5 days
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
15a 275-7482 Brush motor $1,099.12 2 (includes 15b, 16) (after SN 10409691) usually ships 5-16 days
15b 275-5306 Carbon brush (pkg of 4) $99.44 1 (after SN 10409691) ships same day
15c 175-8674 Carbon brush (pkg of 4) $27.28 1 (before SN 10409692) usually ships 1-5 days
16 175-4202 Square keyway $3.96 1 usually ships 5-16 days
17 275-4738 Sheave $85.58 2 (after SN 1033029)` usually ships 5-16 days
18 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 4 ships same day
19 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
20 175-8677 Brush motor harness $33.00 2 usually ships 1-5 days
21 999-1053 Washer 5/16 internal star lock stainless steel $0.99 4 ships same day
22 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 ships same day
23 175-8682 Terminal boot (black) $4.29 2 usually ships 1-5 days
24 175-8681 Terminal boot (red) (OBSOLETE) $1.85 2 usually ships 5-16 days
25a 175-2475 Idler plug assembly $107.36 2 (includes 25b-28) usually ships 5-16 days
25b 175-2478 Brush idler plug $28.27 1 ships same day
26 175-2472 Retaining ring $2.42 1 usually ships 5-16 days
27 175-2476 Idler plug shaft $73.15 1 usually ships 5-16 days
28 175-2477 Roll pin $2.42 1 usually ships 5-16 days
29 175-8824 Roller door $43.34 2 usually ships 5-16 days
30 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
31 175-4494 Washer M10 $3.30 2 ships same day
32 175-2947 Bolt M10 x 1-1/2 x 16 hex head stainless steel $3.96 2 ships same day
33 175-8825 Housing weldment $2,045.89 1 usually ships 5-16 days
34 175-8826 Spacer $17.71 4 usually ships 5-16 days
35 175-8827 Foam gasket $24.64 2 ships same day
36 175-4292 Console gasket $17.71 2 ships same day
37 175-8828 Belt cover $130.13 2 usually ships 5-16 days
38 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
39 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 8 ships same day
40 275-6250 Belt kit (includes belts, square keyways and hardware) $364.43 2 usually ships 5-16 days
41 175-2465 Drive sprocket $67.87 2 (before SN 10343030) usually ships 5-16 days
42 175-8816 Belt $88.55 2 (before SN 10343030) usually ships 5-16 days
43 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 (before SN 10343030) ships same day
44 175-4544 Washer M6 locking $4.62 2 (before SN 10343030) ships same day
45 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 (before SN 10343030) ships same day
46 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
