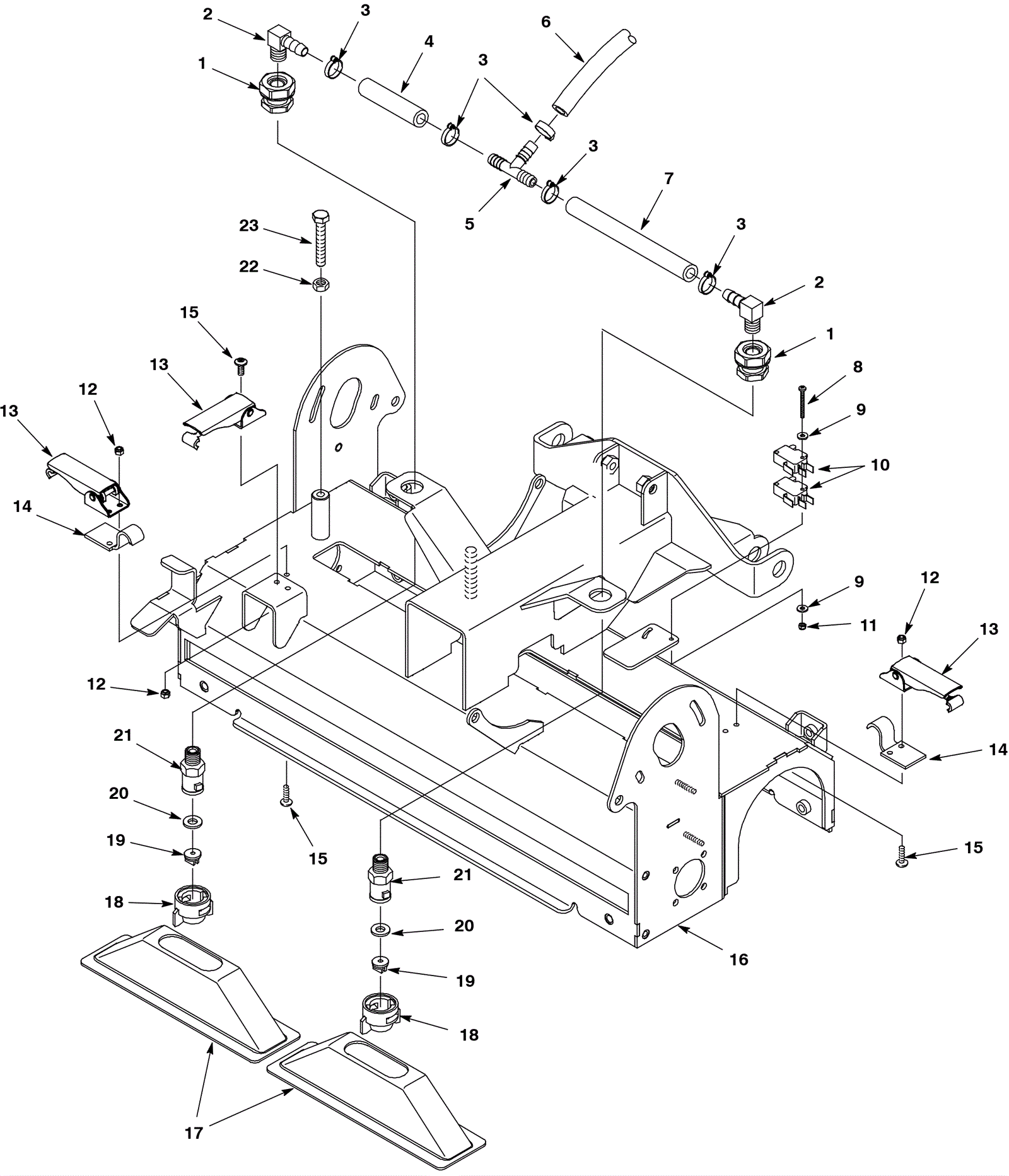

1610 Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-4814 Brass strainer fitting $31.90 2 ships same day
2 175-2997 Elbow $14.85 2 usually ships 10-16 days
3 175-6032 Hose clamp $5.50 5 ships same day
4 175-8829 Hose 3/8 x 2 1/2 inch $8.91 24 inch usually ships 10-16 days
5 175-1615 Tee fitting $7.37 1 usually ships 10-16 days
6a 275-3863 Hose 3/8 x 40 inch (gray) $17.49 40 inch (after SN 10314331) usually ships 10-16 days
6b 175-1978 Hose 3/8 x 24 inch $11.66 24 inch (before SN 10314332) usually ships 1-5 days
7 175-8830 Hose 3/8 x 7 inch (gray) $10.01 6 inch usually ships 10-16 days
8 999-1520 Screw M3-.5 x 30mm pan head phillips zinc plated $0.99 2 ships same day
9 999-1158 Washer #6 flat stainless steel $0.99 4 ships same day
10 175-4273 Switch $15.84 2 ships same day
11 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
12 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 6 ships same day
13 175-8831 Latch $33.77 3 usually ships 10-16 days
14 175-8832 Keeper clip $16.94 2 ships same day
15 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 6 ships same day
16 175-8825 Housing weldment $2,232.89 1 usually ships 10-16 days
17 175-8833 Splash shroud $19.47 2 usually ships 1-5 days
18 175-4194 Quick jet cap (green) $7.26 2 ships same day
19 175-6330 Spray nozzle $21.01 2 ships same day
20 175-4193 Quick jet gasket $4.49 2 ships same day
21 175-4192 Quick jet body $15.40 2 usually ships 10-16 days
22 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
23 999-1692 Screw M8-1.25 x 50mm hex stainless steel $3.28 2 ships same day
