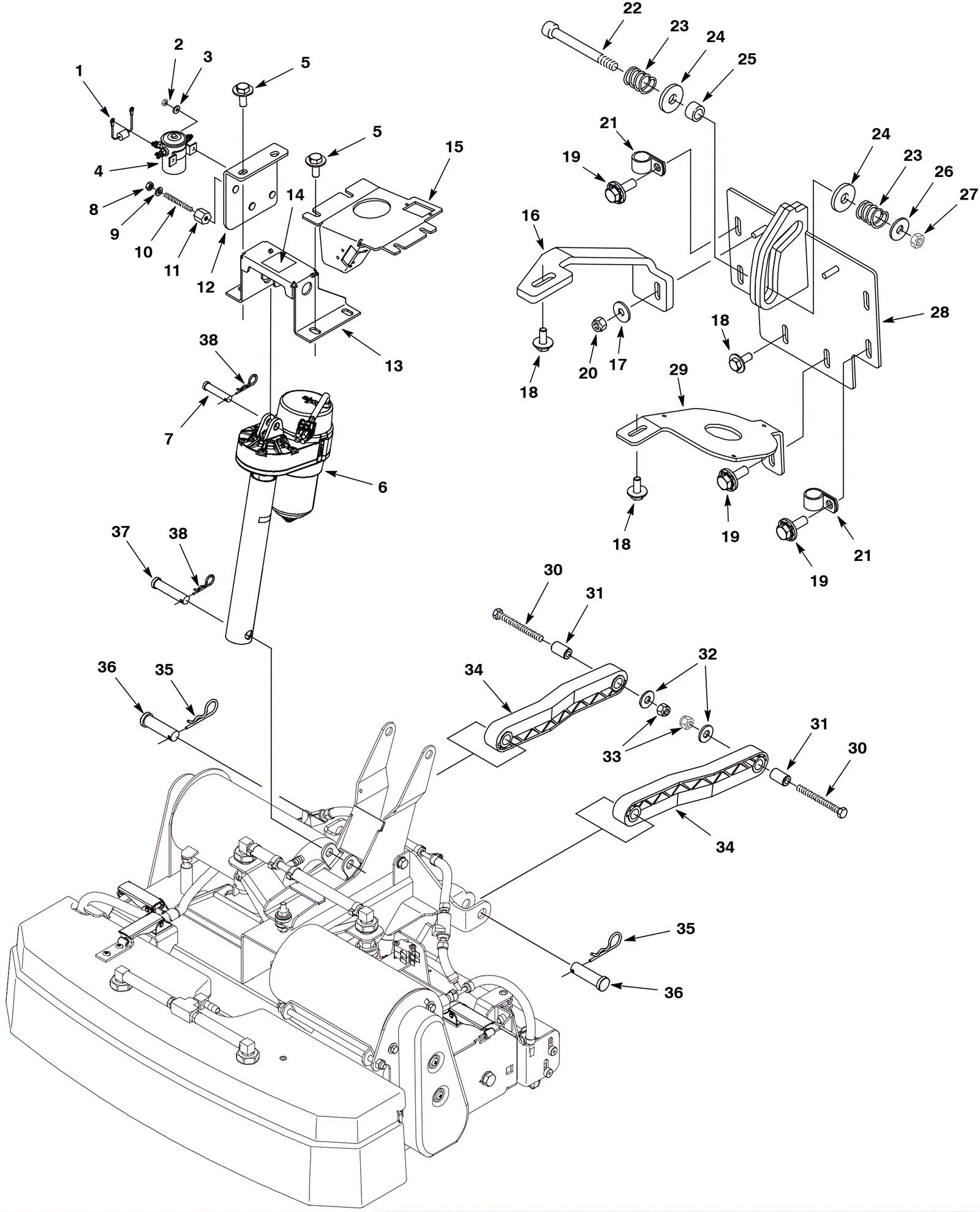

Scrub Head Lift Assembly

#PartDescription ReqNotesAvailability
1 175-2757 Diode with ring terminals (small) 1
2 999-0469 Nut M6-1 nylon insert lock zinc plated 2
3 999-0123 Washer 1/4 SAE flat zinc plated 2
4 175-2023 24V solenoid contactor 1
5 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 4
6 175-8814 Actuator 1
7 175-2111 Clevis pin 1
8 999-0181 Nut 1/4-20 hex jam plain finish 1
9 999-0632 Washer 1/4 split lock stainless steel 1
10 175-3227 Threaded rod 1
11 175-3226 Insulated stand off 1
12 175-4352 Contactor bracket 1
13 175-8644 Actuator mounting bracket 1
14 175-4351 General hazard decal 1
15 175-8815 Bracket 1
16 175-4357 Bracket 1
17 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
18 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 5
19 999-9082 Screw M8-1.25 x 25mm hex head stainless steel 3
20 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
21 175-3005 P clamp 2
22 175-8812 Bolt 1/2 x 3 1/4 shield 1
23 175-4371 Compression spring 2
24 175-4358 Washer 1 1/2 thrust 2
25 175-4359 Linkage roller 1
26 999-0032 Washer 3/8 USS flat plain finish 1
27 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
28 175-4013 Bracket 1
29 175-8813 Vacuum motor bracket 1
30 999-9079 Screw M8 x 80mm hex head stainless steel 2
31 175-4343 1 inch tube 2
32 999-0024 Washer 5/16 flat stainless steel 2
33 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
34 175-2102 Scrub head lifting arm 2
35 175-2106 Cotter hair pin 2
36 175-2105 Clevis pin 2
37 175-9603 Clevis pin 1
38 175-4331 Cotter hair pin 2
