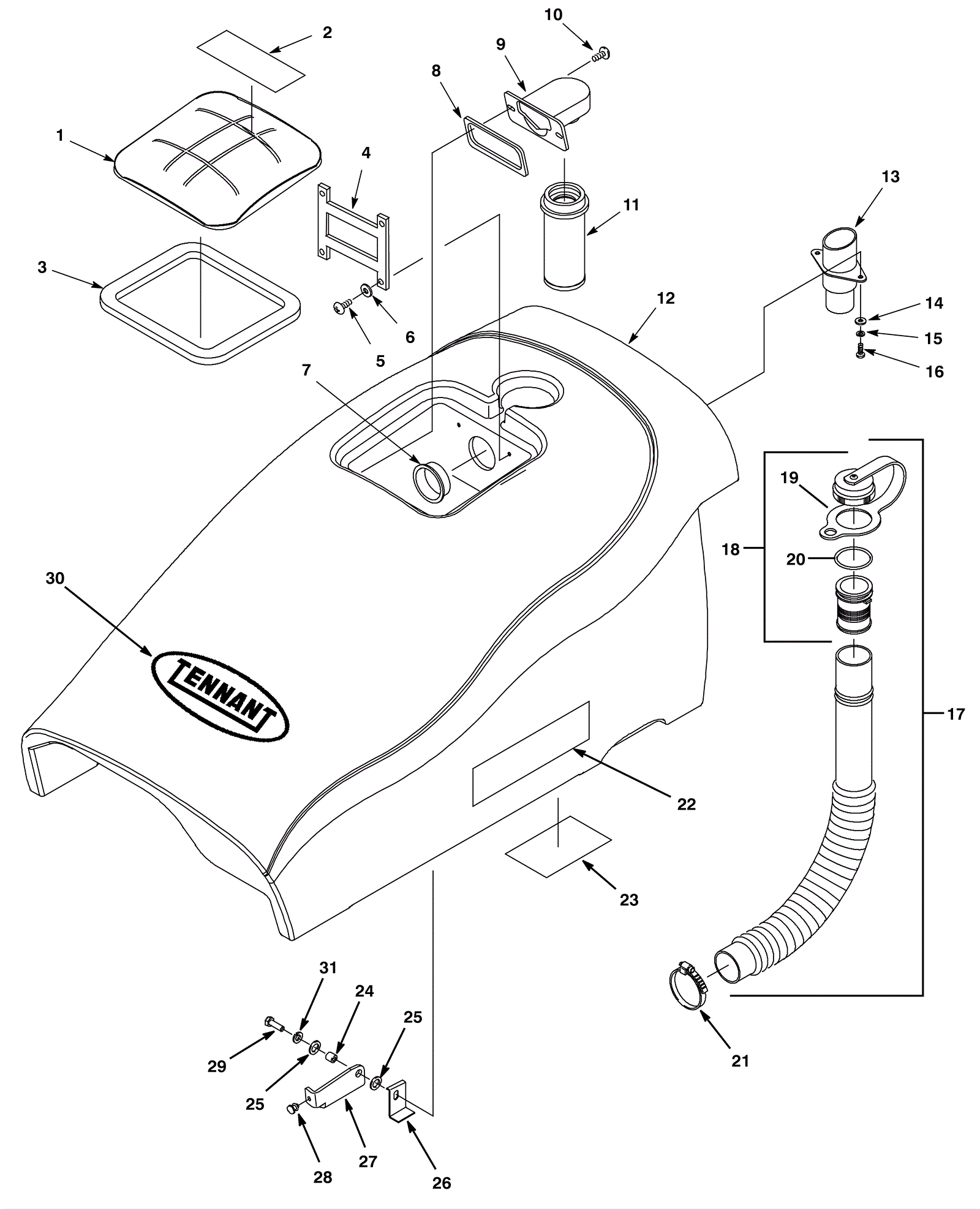

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-4224
|
Tank lid and decal assembly |
1 |
(includes 2 and 3) |
|
2 |
175-2868
|
Warning decal |
1 |
|
|
3 |
175-4226
|
Tank lid gasket |
1 |
|
|
4 |
175-1803
|
Tank lid hinge |
1 |
|
|
5 |
999-0434
|
Screw 6 x 3/8 pan head phillips |
4 |
|
|
6 |
175-5797
|
Washer 1/6 flat zinc |
4 |
|
|
7 |
175-4228
|
2 inch plug |
1 |
|
|
8 |
175-4231
|
Float mount gasket |
1 |
|
|
9 |
175-4232
|
Float cage mount |
1 |
|
|
10 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
|
11 |
175-1804
|
Shut-off float |
1 |
|
|
12a |
175-4227
|
Recovery tank (teal) |
1 |
|
|
12b |
275-5055
|
Recovery tank (gray) |
1 |
|
|
13 |
175-4233
|
Hose adaptor |
1 |
|
|
14 |
175-4234
|
Washer M5.3 flat |
2 |
|
|
15 |
999-9132
|
Washer M5 split lock stainless steel |
2 |
|
|
16 |
175-3234
|
Screw M5-.8 x 10mm pan head |
2 |
|
|
17a |
175-1153
|
Drain hose assembly |
1 |
(includes 18-20) (OEM) |
|
17b |
991-5126
|
Drain hose assembly |
1 |
(NON-OEM) |
|
18a |
175-4214
|
Drain plug assembly |
1 |
(includes 19-20) (OEM) |
|
18b |
991-3028
|
Drain plug assembly |
1 |
(NON-OEM) |
|
19 |
N/A
|
Not available |
1 |
(drain cap strap) (only available with 18) |
|
20 |
175-5804
|
O-ring |
1 |
|
|
21 |
997-2000
|
Hose clamp |
1 |
|
|
22 |
275-5057
|
1610 decal |
2 |
|
|
23 |
175-8788
|
Battery diagram decal |
1 |
|
|
24 |
175-2673
|
Bushing |
1 |
|
|
25 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
26 |
175-4236
|
Stop bracket |
1 |
|
|
27 |
175-4241
|
Tank support |
1 |
|
|
28 |
175-7780
|
Rubber bumper |
1 |
|
|
29 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
30 |
175-4237
|
Tennant decal |
1 |
|
|
31 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
1 |
|
|
