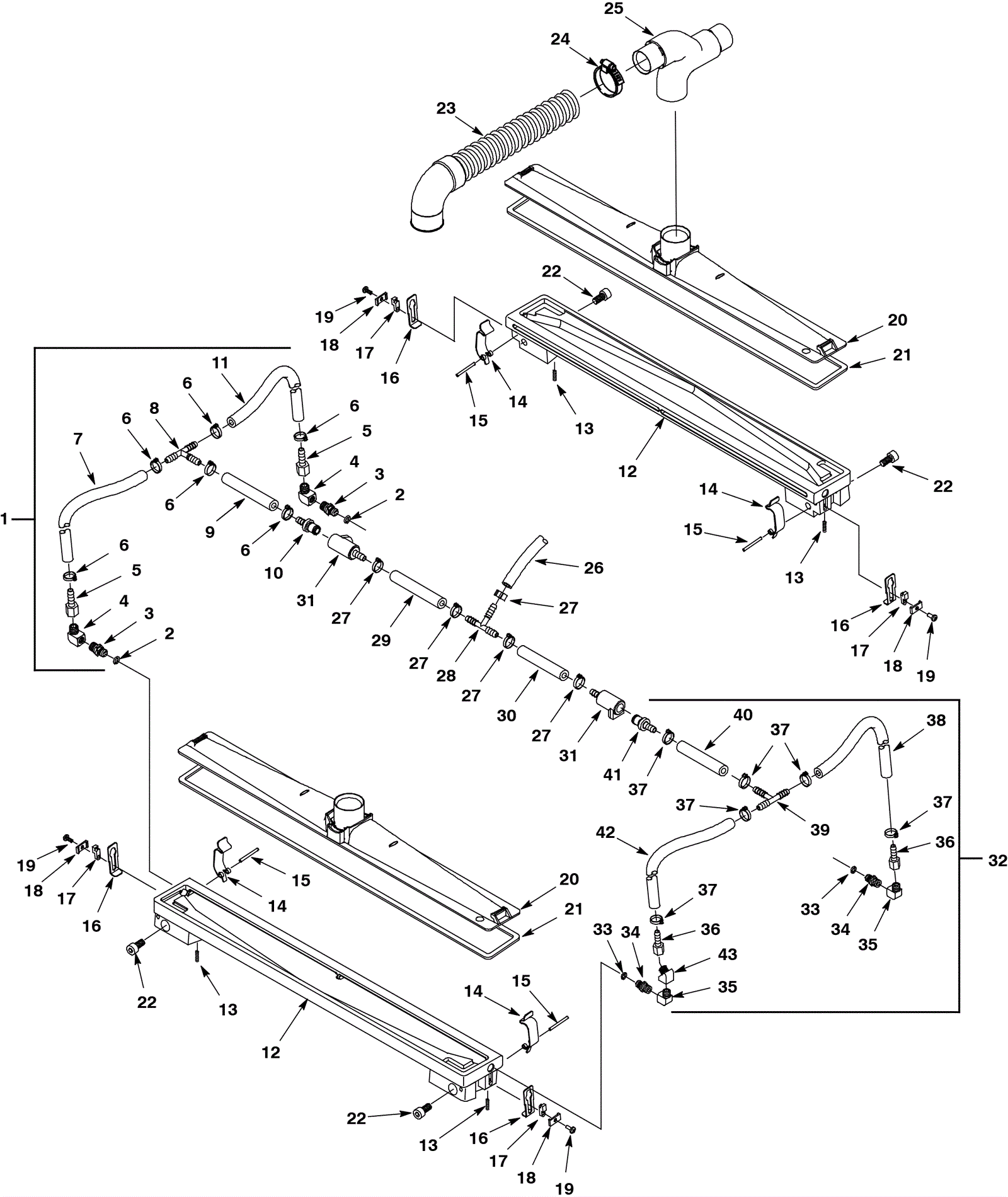

1610 Vacuum Shoe Assembly - ReadySpace

#PartDescriptionPriceReqNotesAvailability
1 175-8834 Right side hose assembly $250.91 1 (includes 2-11) usually ships 10-16 days
2 175-8835 O-ring seal $5.50 2 usually ships 10-16 days
3 175-8836 Brass tip fitting $37.62 2 usually ships 10-16 days
4 175-1661 90 degree elbow fitting $5.50 2 usually ships 10-16 days
5 175-3529 Brass fitting $5.50 2 usually ships 10-16 days
6 175-6170 Hose clamp $4.88 6 ships same day
7 175-8837 Hose 1/4 x 8 inch (gray) $11.99 6 inch usually ships 1-5 days
8 175-7303 1/4 inch union tee $10.34 1 usually ships 10-16 days
9 175-8838 Braided hose 1/4 x 1/2 x 4 inches (gray) $8.58 2 inch usually ships 1-5 days
10 175-8839 Strainer fitting $11.11 1 usually ships 10-16 days
11 175-7364 16 inch hose (gray) $14.63 16 inch usually ships 10-16 days
12a 175-8840 Roller tool assembly $914.10 2 (includes 12b-21) ships same day
12b 175-8841 Roller vacuum tool $434.39 2 usually ships 10-16 days
13 175-8842 Compression spring $5.83 4 ships same day
14 175-8843 Vacuum tool cover mounting clip $5.50 4 usually ships 10-16 days
15 175-8844 Roll pin 1/8 x 1 1/4 inch $3.04 4 ships same day
16 175-8845 Nozzle retaining latch $10.89 4 usually ships 10-16 days
17 175-8846 Timing key $27.39 4 usually ships 10-16 days
18 175-8847 Latch retainer $19.03 4 usually ships 10-16 days
19 999-0534 Screw M4-.7 x 10mm pan head slotted zinc $0.99 4 ships same day
20 175-8848 Tool cover assembly $37.51 2 usually ships 10-16 days
21 175-8849 Gasket $12.76 2 usually ships 10-16 days
22 999-0802 Screw M8-1.25 x 16mm socket head $0.99 4 ships same day
23 175-8850 Vacuum hose 1 1/2 x 11 3/4 inch $30.25 1 usually ships 10-16 days
24 997-2000 Hose clamp $2.37 1 ships same day
25 175-8851 Hose fitting assembly $117.48 1 usually ships 10-16 days
26a 275-5071 Hose 1/4 x 1/2 x 33 inches (gray) $14.63 33 inch (after SN 10314331) usually ships 10-16 days
26b 175-7302 Hose 1/4 x 1/2 x 8 inches (gray) $10.89 8 inch (before SN 10314332) usually ships 1-5 days
27 175-6170 Hose clamp $4.88 5 ships same day
28 175-7303 1/4 inch union tee $10.34 1 usually ships 10-16 days
29 175-8852 Hose 1/4 x 1/2 x 10 inches (gray) $12.98 10 inch usually ships 1-5 days
30 175-4877 Hose 1/4 x 9 1/2 inch (gray) $10.89 7 inch usually ships 10-16 days
31 175-5311 Female fitting with valve $56.65 2 usually ships 10-16 days
32 175-8853 Left side hose assembly $252.67 1 (includes 33-43) usually ships 10-16 days
33 175-8835 O-ring seal $5.50 2 usually ships 10-16 days
34 175-8836 Brass tip fitting $37.62 2 usually ships 10-16 days
35 175-1661 90 degree elbow fitting $5.50 2 usually ships 10-16 days
36 175-3529 Brass fitting $5.50 2 usually ships 10-16 days
37 175-6170 Hose clamp $4.88 6 ships same day
38 175-4876 PVC hose 1/4 x 12 inch (gray) $17.27 11 inch usually ships 10-16 days
39 175-7303 1/4 inch union tee $10.34 1 usually ships 10-16 days
40 175-8838 Braided hose 1/4 x 1/2 x 4 inches (gray) $8.58 2 inch usually ships 1-5 days
41 175-8839 Strainer fitting $11.11 1 usually ships 10-16 days
42 175-8838 Braided hose 1/4 x 1/2 x 4 inches (gray) $8.58 2 inch usually ships 1-5 days
43 175-6041 Elbow 1/8 x 1/8 inch $6.05 1 usually ships 10-16 days
