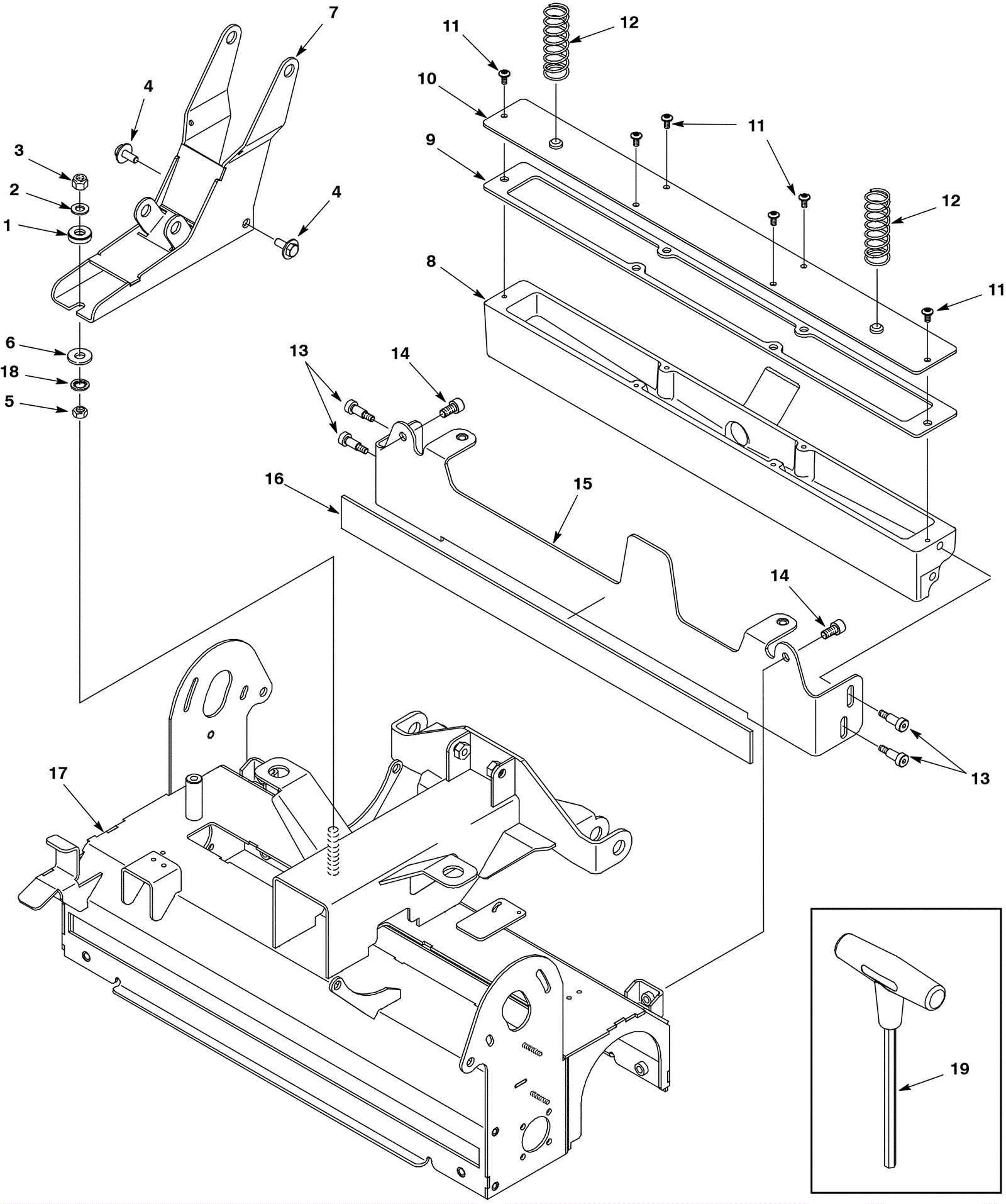

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-4334
|
Washer spherical |
1 |
|
|
2 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
3 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
4 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
2 |
|
|
5 |
999-1424
|
Nut M8-1.25 hex stainless steel |
1 |
|
|
6 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
7 |
175-8854
|
Scrub deck mounting bracket |
1 |
|
|
8a |
175-8855
|
Vacuum shoe assembly |
1 |
(includes 8b-16) |
|
8b |
175-8856
|
Carpet pickup tool |
1 |
|
|
9 |
175-8857
|
Carpet tool gasket |
1 |
|
|
10 |
175-8858
|
Carpet tool plate |
1 |
|
|
11 |
175-4398
|
Screw M5-.8 x 10mm phillips truss head zinc |
6 |
|
|
12 |
175-8859
|
Compression spring |
2 |
|
|
13 |
175-8860
|
Bolt M6 x 1 stainless steel |
4 |
|
|
14 |
999-0802
|
Screw M8-1.25 x 16mm socket head |
2 |
|
|
15 |
175-8861
|
Mounting bracket |
1 |
|
|
16 |
175-8862
|
Gasket |
1 |
|
|
17 |
175-8825
|
Housing weldment |
1 |
|
|
18 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
1 |
(before SN 10314332) |
|
19 |
175-8780
|
6mm hex head T-handle tool |
1 |
|
|
