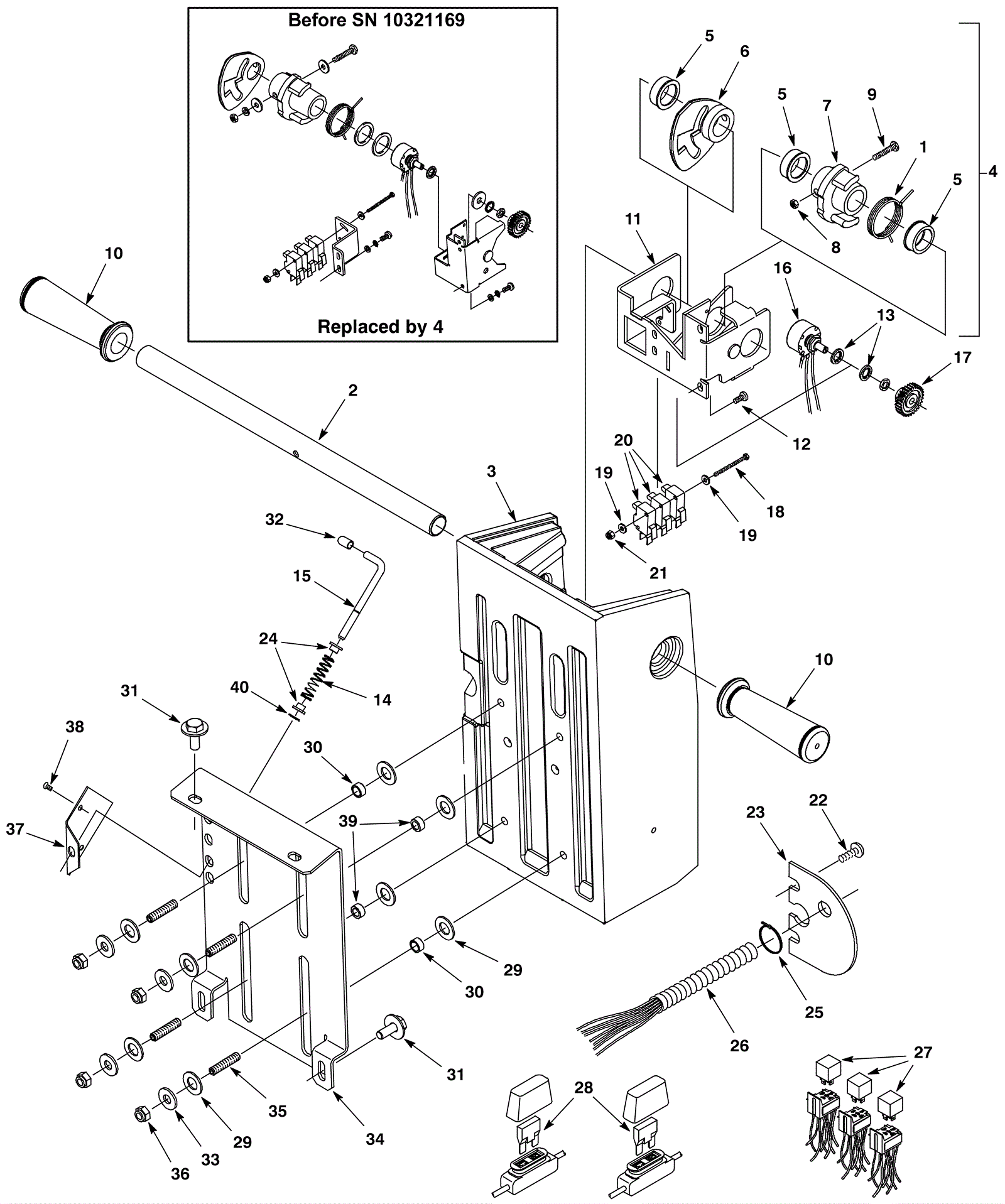

1610 Control Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-4260 Torsion spring $7.37 1 usually ships 10-16 days
2 175-4253 Handle bar $33.55 1 usually ships 10-16 days
3a 175-4263 Console (teal) (OBSOLETE) $161.04 1 usually ships 1-5 days
3b 275-5058 Console (gray) $202.51 1 usually ships 1-5 days
4 175-4259 Potentiometer console bracket $456.72 1 (includes 5a, 6-13) usually ships 10-16 days
5a 475-0806 BUSHING, GRIP, THROTTLE [1610] $11.55 3 (after SN 10810182) usually ships 10-16 days
5b 175-3093 Flanged bushing $5.28 3 (between SN 10321169 and SN 10810182) usually ships 10-16 days
6 275-5060 Cam switch plate $115.39 1 (after SN 10321168) usually ships 1-5 days
7 275-5061 Hub assembly with gear $20.02 1 (after SN 10321168) usually ships 10-16 days
8 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
9 275-5062 Screw M6-1 x 35mm hex head $4.49 1 (after SN 10321168) usually ships 10-16 days
10 675-9894 Handle grip $5.41 2 ships same day
11 275-5063 Potentiometer bracket $232.76 1 (after SN 10321168) usually ships 1-5 days
12 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 4 ships same day
13 999-0201 Washer 3/8 internal star lock $0.99 2 ships same day
14 175-4256 Compression spring $5.28 1 usually ships 10-16 days
15 175-4254 Adjustment lever $15.07 1 usually ships 10-16 days
16 175-4261 Potentiometer and wiring assembly $146.74 1 ships same day
17 275-5064 Toothed gear $38.50 1 usually ships 10-16 days
18 999-1166 Bolt M3-.5 x 40mm hex head stainless steel $9.33 2 ships same day
19 175-1202 Flat washer $4.22 4 usually ships 10-16 days
20 175-4273 Switch $15.84 3 ships same day
21 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
22 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
23 175-4277 Wiring harness retainer $25.74 1 usually ships 1-5 days
24 175-4255 Flanged bushing $5.28 2 usually ships 10-16 days
25 175-7795 Cable tie $5.15 4 ships same day
26a 175-8796 24V main wiring harness $874.06 1 (after SN 10243220) (includes 27-28) usually ships 1-5 days
26b 175-8797 24V main wiring harness $1,679.92 1 (before SN 10243221) (includes 27-28) usually ships 1-5 days
27 175-8635 40amp relay $31.35 3 ships same day
28 375-0043 35amp fuse $3.43 2 usually ships 10-16 days
29 999-0566 Washer 1/2 flat nylon $0.99 8 ships same day
30 175-4269 Bearing $5.28 2 usually ships 10-16 days
31 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 4 ships same day
32 175-4278 Cap $4.49 1 usually ships 10-16 days
33 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
34 175-4272 Sliding plate $86.79 1 usually ships 1-5 days
35 175-4271 Screw M8 x 35mm set $5.28 4 usually ships 10-16 days
36 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
37 175-4250 Retainer plate $11.11 1 usually ships 10-16 days
38 175-4251 Screw M4 x 8mm flat head phillips $4.36 2 usually ships 10-16 days
39 175-4270 Bearing $5.28 2 usually ships 10-16 days
40 175-4252 Retaining ring $5.28 1 usually ships 10-16 days
