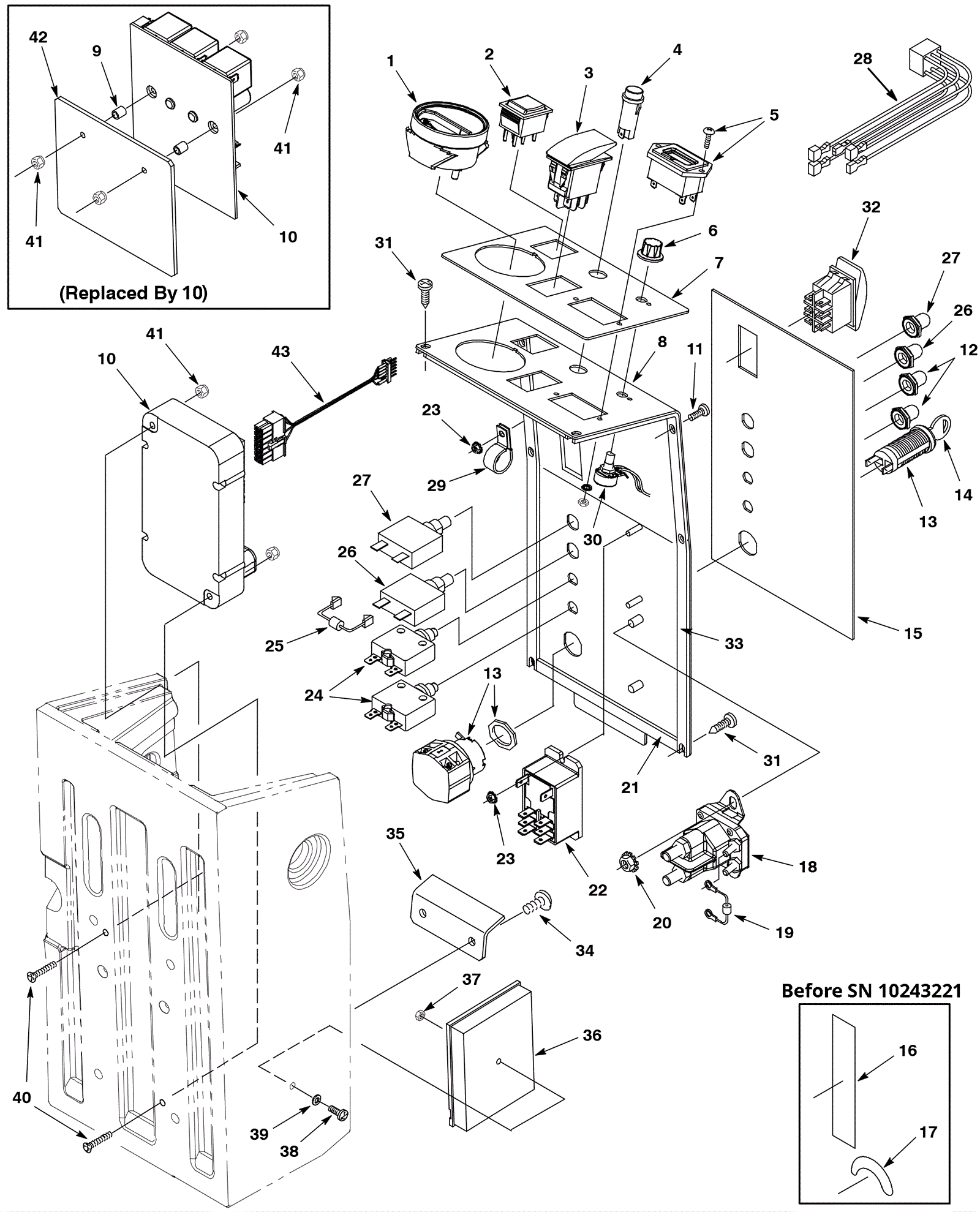

Control Panel Assembly

#PartDescription ReqNotesAvailability
1 175-8800 Brush pressure gauge 1
2 175-8630 Brush pressure switch 1
3 175-4822 Rocker switch 1
4 175-2849 Indicator light 1
5 175-3728 24V battery gauge with screw 1
6 175-4281 Potentiometer knob 1
7 175-8801 Main dash decal 1
8a 175-8803 Console panel (OBSOLETE) 1 (before SN 10243221)
8b 175-8802 Console panel 1 (after SN 10243220)
9 175-4898 Spacer 4 (before SN 10988798)
10a 175-3124 Retrofit kit circuit board replacement 4 (before SN 10988798)
10b 375-2527 Propel controller 1 (after SN 10988797)
11 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 4
12 175-7699 Switch boot 2
13a 175-4287 Key switch assembly (OBSOLETE) 1 (includes 014)
13b 775-0110 Retrofit kit, Panel key switch (1610)
14 175-0185 Double sided key (steel) 1
15 175-8804 Console panel decal 1 (after SN 10243220)
16 175-8805 Circuit breaker decal (OBSOLETE) 1 (before SN 10243221)
17 175-4288 Key switch decal 1 (before SN 10243221)
18 175-4293 24V relay 1
19 175-2757 Diode with ring terminals (small) 1
20 999-0497 Nut M6-1 nylon insert lock stainless steel 2
21 175-4292 Console gasket 2
22 175-8806 20amp relay 1
23 175-4290 Nut M4 x .70mm hex 3
24 175-6630 17amp circuit breaker 2
25 175-4295 Terminal diode 1
26 175-2337 20amp circuit breaker 1
27 175-2336 10amp circuit breaker 1
28 275-5067 Relay interrupter 1
29 175-8767 P clamp 1
30 175-4285 Potentiometer 1
31 175-5815 Screw 10 x 1/2 pan head phillips black 4
32 175-3098 Lighted on/off rocker switch 1
33 175-4291 Console gasket 2
34 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
35 175-4264 Bracket 1
36 175-8799 Dual timer module 1
37 999-0954 Nut M4-.7 nylon insert lock stainless steel 1
38 999-1518 Screw M4-.7 x 30mm pan head phillips zinc plated 1
