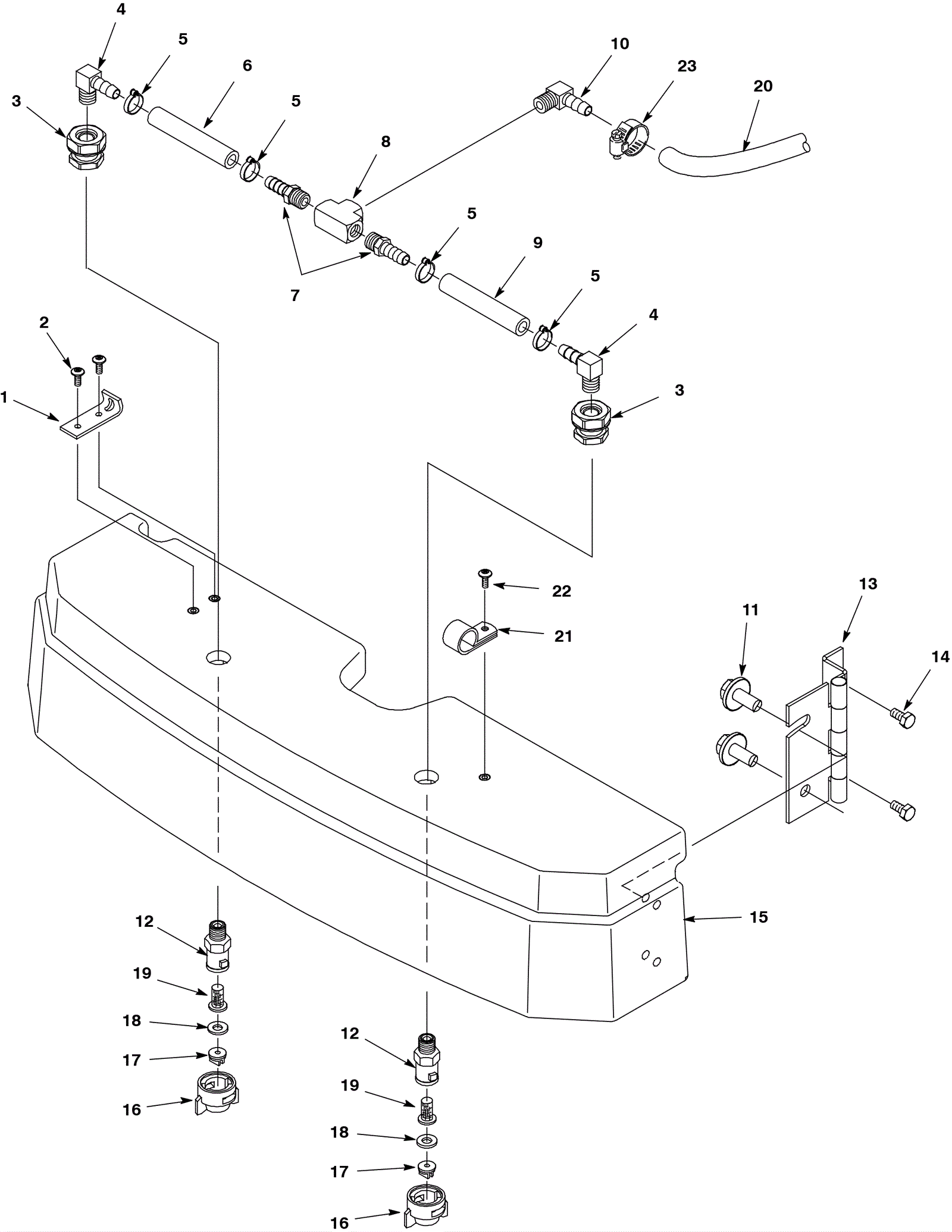

1610 Bumper Assembly

#PartDescriptionPriceReqNotesAvailability
0 175-8863 Bumper assembly $621.83 1 (includes 1-19) usually ships 1-5 days
1 175-8864 Bracket $15.29 1 usually ships 5-16 days
2 999-1517 Screw M5-.8 x 12mm truss head stainless steel $1.58 2 ships same day
3 175-4814 Brass strainer fitting $29.15 2 ships same day
4 175-2997 Elbow $13.53 2 usually ships 5-16 days
5 175-6032 Hose clamp $4.73 4 ships same day
6 175-8865 Hose 3/4 x 4 inch $9.68 4 inch usually ships 5-16 days
7 175-2613 Straight brass fitting $4.95 2 usually ships 5-16 days
8 175-6253 1/4 inch brass tee $9.35 1 usually ships 5-16 days
9 175-8865 Hose 3/4 x 4 inch $9.68 4 inch usually ships 5-16 days
10 175-2997 Elbow $13.53 1 usually ships 5-16 days
11 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 ships same day
12 175-4192 Quick jet body $13.97 2 usually ships 5-16 days
13 175-8866 Hinge $67.87 1 usually ships 5-16 days
14 175-8867 SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) $5.01 2 usually ships 1-5 days
15 275-5072 Bumper $301.73 1 usually ships 1-5 days
16 175-6431 Quick-jet cap $4.95 2 ships same day
17 175-8869 Brass fitting tip $27.39 2 usually ships 5-16 days
18 175-4193 Quick jet gasket $3.30 2 ships same day
19 175-4204 Check valve filter screen $16.72 2 ships same day
20a 275-5074 Hose 3/8 x 75 inch $21.56 72 inch (after SN 10314331) usually ships 5-16 days
20b 175-8870 Hose 3/8 x 62 inch $19.91 61 inch (before SN 10314332) usually ships 1-5 days
21 175-8767 P clamp $5.28 1 usually ships 1-5 days
22 175-3689 Screw M5-.8 x 12mm truss head phillips stainless steel $3.08 1 ships same day
23 175-6081 Hose clamp $4.84 1 ships same day
