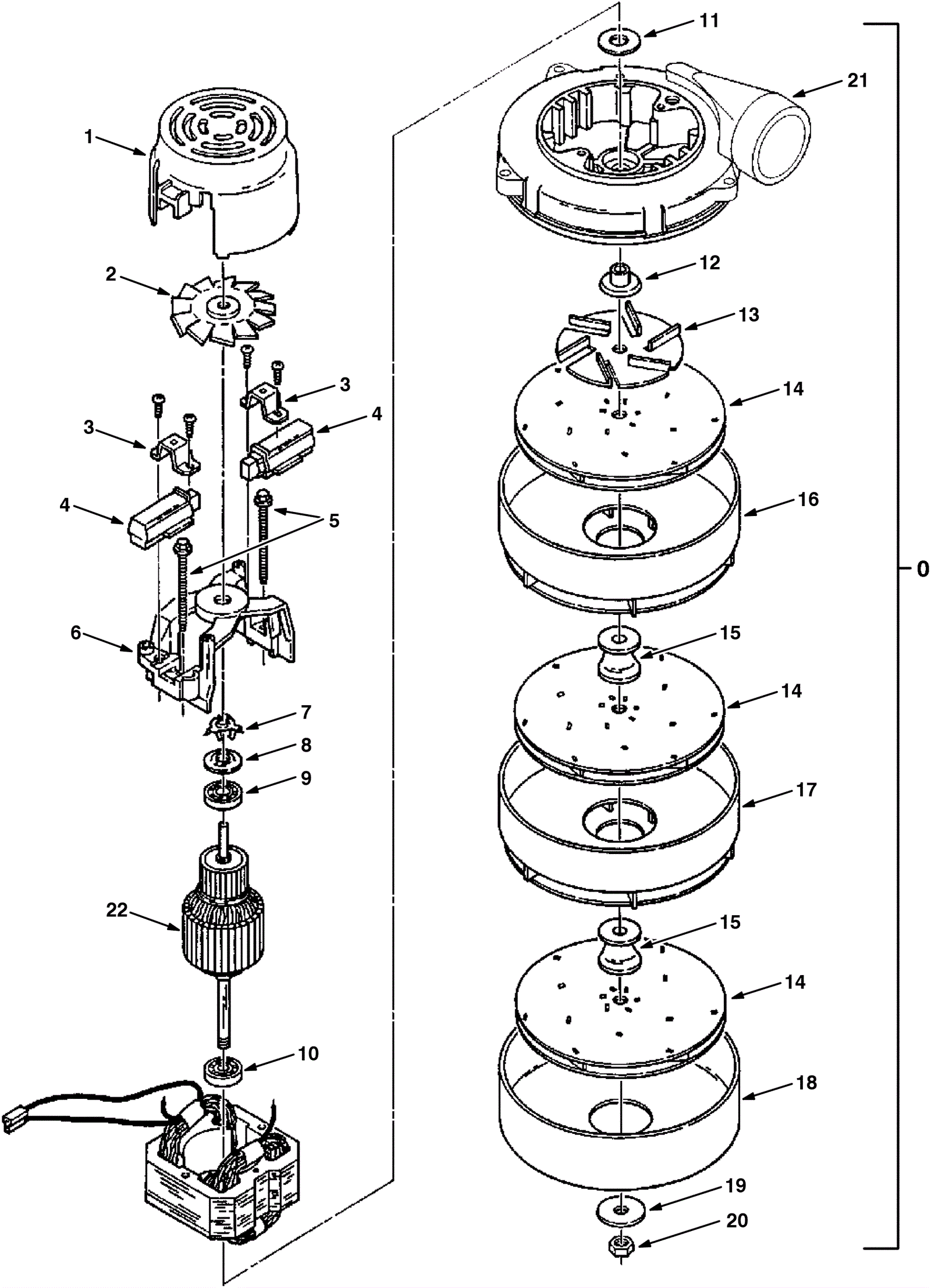

510E Electric Motor Breakdown Assembly - 1

#PartDescriptionPriceReqNotesAvailability
0 275-5200 36V 3 stage vacuum motor kit $361.24 1 (includes 1-22) usually ships 3-26 days
1 275-0172 Vacuum motor housing $20.90 1 usually ships 10-16 days
2 275-0173 Vacuum motor fan $27.50 1 usually ships 10-16 days
3 275-0174 Brush holder clamp $5.02 2 usually ships 1-5 days
4 991-1222 Plastic covered carbon brush (sold individually) $10.77 2 ships same day
5 275-0175 Vacuum motor screw $8.03 2 usually ships 1-5 days
6 275-0176 Vacuum motor bracket $30.58 1 usually ships 1-5 days
7 175-5279 Spring $3.70 1 usually ships 1-5 days
8 275-0177 Vacuum motor armature disc $5.02 1 usually ships 1-5 days
9 275-0178 Vacuum motor bearing $36.30 1 usually ships 10-16 days
10 175-5281 Bearing $34.43 1 usually ships 10-16 days
11 175-5282 Washer neoprene $5.15 1 usually ships 1-5 days
12 275-0179 Vacuum impeller spacer $12.98 1 usually ships 1-5 days
13 175-5284 Fan $6.60 1 usually ships 1-5 days
14 175-5285 Vacuum fan $13.97 3 usually ships 10-16 days
15 275-0180 Vacuum fan impeller spacer $19.14 2 usually ships 1-5 days
16 175-5287 Stationary fan $25.30 1 usually ships 1-5 days
17 175-5288 Stationary fan $23.87 1 usually ships 1-5 days
18 275-0181 Vacuum fan shell $19.03 1 usually ships 1-5 days
19 275-0182 VR, WASHER (Tennant Industrial) $6.33 1 usually ships 1-5 days
20 175-5290 Nut $5.15 1 usually ships 1-5 days
21 175-5291 Fan end bracket $104.72 1 usually ships 1-5 days
22 275-0183 Motor armature $245.96 1 usually ships 1-5 days
N/S 175-5293 Female connector $10.23 1 (included with 0) ships same day
N/S 175-5294 Female terminal $4.09 1 (included with 0) usually ships 1-5 days
