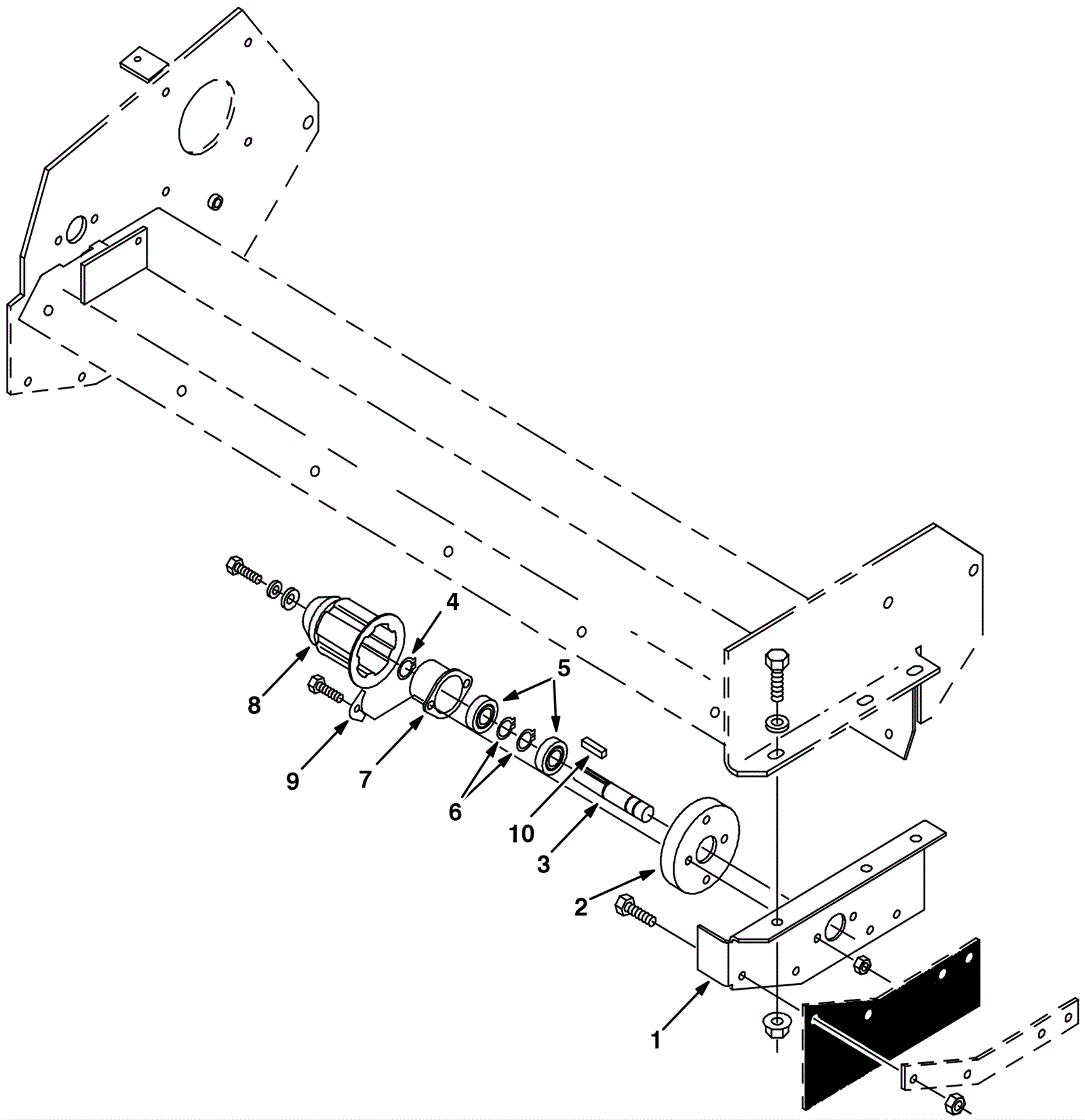

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(brush mounting plate) |
usually ships 3-26 days |
2 |
275-0095
|
SHIELD, PLUG, DRIVE (Tennant Industrial) |
1 |
|
usually ships 16-21 days |
3a |
275-0091
|
BEARING ASSY, W/ SHAFT (Tennant Industrial) |
1 |
(includes 3b-7) |
usually ships 16-21 days |
3b |
275-8949
|
SHAFT, IDLER, BRUSH, MAIN (Tennant Industrial) |
1 |
|
usually ships 1-5 days |
4 |
275-8947
|
RING, RETAINING, EXT, 0.59D, BASIC (Tennant Industrial) |
1 |
|
usually ships 1-5 days |
5 |
175-2471
|
Ball bearing |
2 |
|
usually ships 16-21 days |
6 |
175-2472
|
Retaining ring |
2 |
|
usually ships 16-21 days |
7 |
175-8950
|
2 Hole flange bushing assembly |
1 |
|
usually ships 1-5 days |
8 |
275-0098
|
PLUG, DRIVE, BRUSH, NYL (Tennant Industrial) |
1 |
|
usually ships 16-21 days |
9 |
275-0096
|
PLATE, HOLD-DOWN (Tennant Industrial) |
2 |
|
usually ships 1-5 days |
10 |
175-3200
|
Square keyway |
1 |
|
usually ships 16-21 days |
