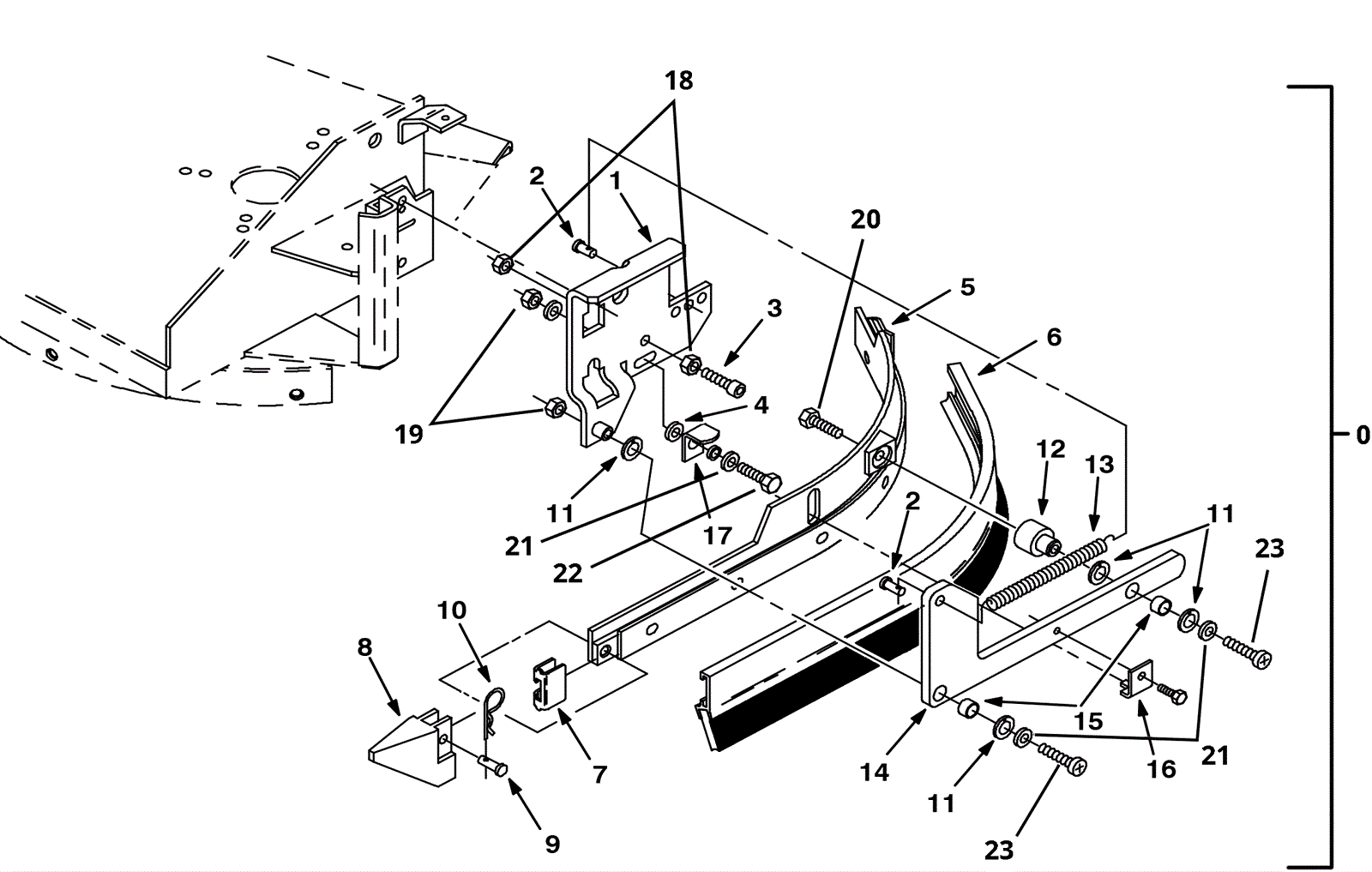

510E Left Side Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 275-2201 SQUEEGEE ASSY, SIDE, LH (Tennant Industrial) (OBSOLETE) $1,847.02 1 (includes 1-17 usually ships 5-16 days
1 275-2202 BRACKET WLDT, LH (Tennant Industrial) $308.95 1 usually ships 1-5 days
2 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) $5.17 2 usually ships 5-16 days
3 175-6821 SCREW, SOC, M8 X 1.25 X 35, 12.9 (Tennant Industrial) $5.64 1 ships same day
4 275-2194 SPACER (Tennant Industrial) $27.22 1 usually ships 1-5 days
5 275-2203 FRAME WLDT, SQGE, SIDE, LH (Tennant Industrial) (OBSOLETE) $576.15 1 usually ships 5-16 days
6 175-3343 Side squeegee blade linatex $65.78 1 ships same day
7 175-3357 Squeegee blade retainer $11.22 1 ships same day
8 275-2196 GUIDE, SQGE, SIDE (Tennant Industrial) (OBSOLETE) $86.84 1 usually ships 5-16 days
9 175-3351 Clevis pin $4.09 1 ships same day
10 175-2117 Cotter pin $4.88 1 ships same day
11 175-3354 Thrust washer $9.90 4 usually ships 5-16 days
12 275-2197 BAR, RND, PIVOT, MTG, SQGE (Tennant Industrial) (OBSOLETE) $258.85 1 usually ships 5-16 days
13 175-3345 Extension spring $9.35 1 ships same day
14 275-2198 BELLCRANK, LIFT, SQGE, SIDE (Tennant Industrial) $158.15 1 usually ships 1-5 days
15 175-3355 Sleeved bushing $6.82 2 usually ships 5-16 days
16 275-2199 Stop angle (Tennant Industrial) $49.60 1 usually ships 1-5 days
17 275-2200 ANGLE, MTG, STL, .18 1.3 1.0 00.8L (Tennant Industrial) $59.62 1 usually ships 1-5 days
18 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
19 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
20 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 1 ships same day
21 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 3 ships same day
22 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
23 275-2235 SCREW, BTN, M8 X 1.25 X 16, SS (Tennant Industrial) $10.00 2 usually ships 1-5 days
