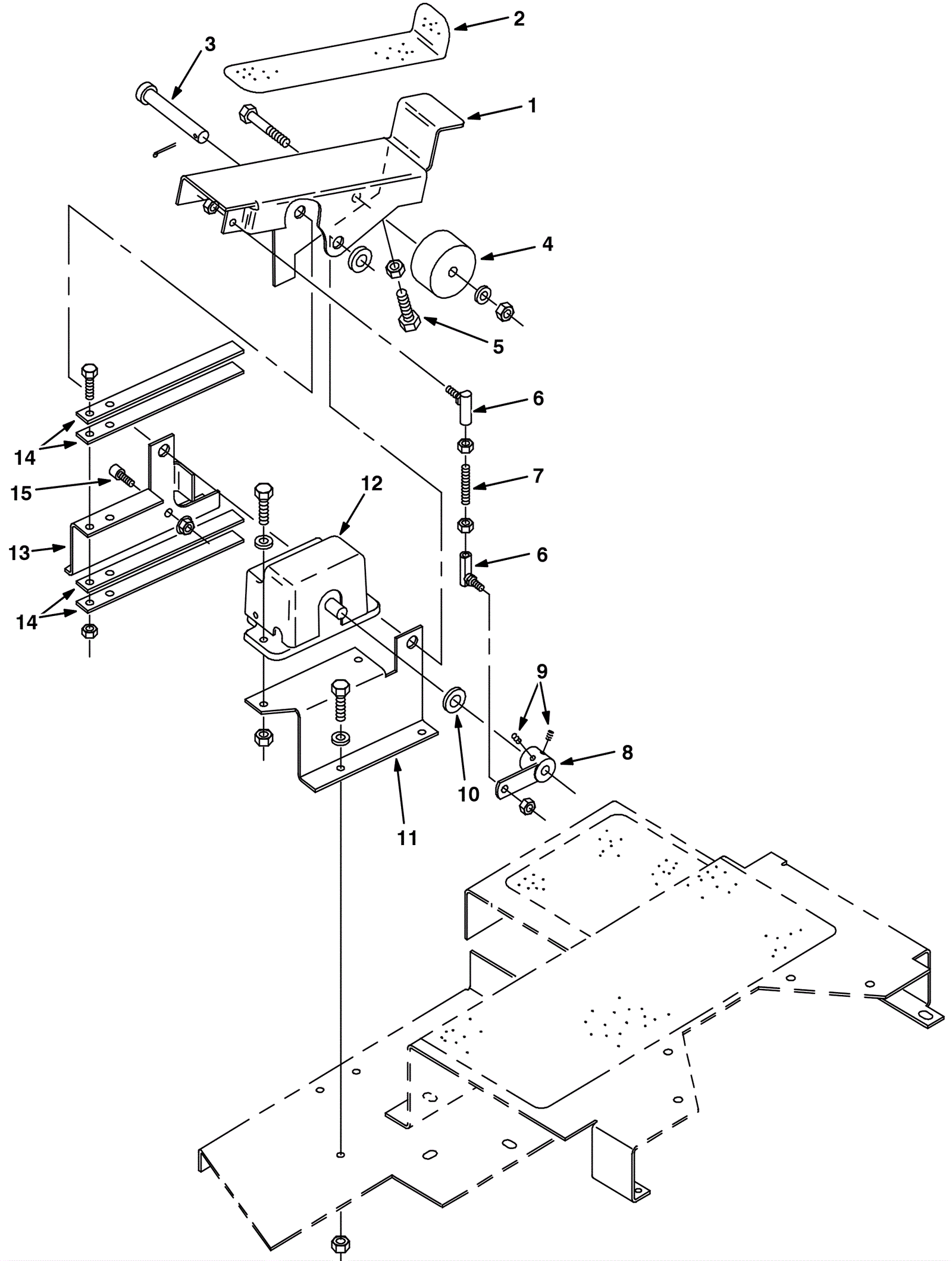

510E Directional Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-8850 PEDAL WLDT, PROPEL, ELE (Tennant Industrial) $297.76 1 usually ships 1-5 days
2 175-3307 Non-skid tread $6.05 1 usually ships 5-16 days
3 175-3280 Clevis pin $6.05 1 usually ships 5-16 days
4 175-3303 Spacer $7.48 1 usually ships 1-5 days
5 275-8849 SCREW, HEX, .38-16 X 1.50, FL (Tennant Industrial) $5.00 1 usually ships 1-5 days
6 275-2045 BALLJOINT, M6 X 1.0 FEM, M6 X 1.0 MAL (Tennant Industrial) $42.84 2 usually ships 1-5 days
7 275-2046 ROD, THRD, 2 END, M06 X 1.0 02.2L (Tennant Industrial) $56.18 1 usually ships 1-5 days
8 275-2047 ARM WLDT, CNTRL, DIR (Tennant Industrial) $168.84 1 usually ships 1-5 days
9 275-4147 HOSE, FLEX, VACUUM, 03.0D, 023.5L (Tennant Industrial) (OBS $90.01 2 usually ships 5-16 days
10 175-3435 Washer 25/64 x 3/4d x 1/16 nylon $4.09 1 usually ships 1-5 days
11 N/A Not available Call for price 1 (left hand mounting bracket) usually ships 3-26 days
12 275-2050 THROTTLE, ELECTRONIC, 0000/5000 OHM (Tennant Industrial) $1,007.37 1 usually ships 1-5 days
13 275-2051 BRACKET, MTG, PEDAL, DIR CNTRL, RH (Tennant Industrial) $53.61 1 usually ships 1-5 days
14 275-2052 SPRING, FLAT, .06, 0.75W X 07.8L (Tennant Industrial) $20.00 4 usually ships 1-5 days
15 175-0602 Screw M8-1.25 x 25mm socket $4.09 1 usually ships 5-16 days
