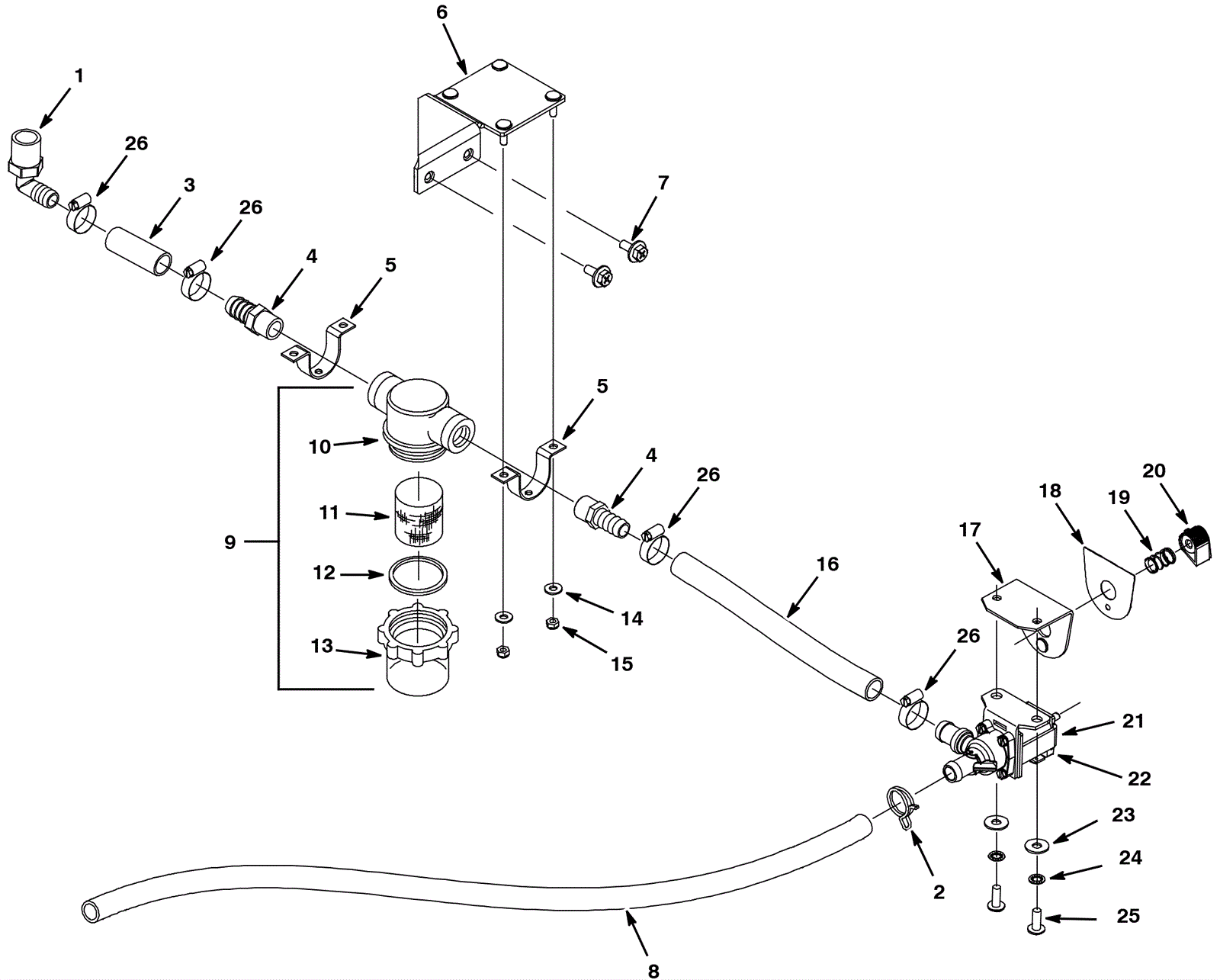

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-7834
|
Plastic fitting |
1 |
|
|
2 |
375-0291
|
Hose clamp |
1 |
|
|
3 |
175-1043
|
3 inch hose |
1 |
|
|
4 |
175-1025
|
Straight brass fitting |
2 |
|
|
5 |
175-3690
|
U clamp |
2 |
|
|
6 |
175-2882
|
Filter mounting bracket weldment |
1 |
|
|
7 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
8 |
275-1537
|
45 inch vinyl tubing |
1 |
|
|
9a |
175-9025
|
In-line screen filter assembly |
1 |
(includes 10-13) (OEM) |
|
9b |
991-8582
|
Mesh inline filter |
1 |
(NON-OEM) |
|
10 |
175-5865
|
Top filter body housing |
1 |
|
|
11a |
175-5866
|
Mesh filter screen |
1 |
(OEM) |
|
11b |
991-8569
|
Mesh filter screen stainless steel |
1 |
(NON-OEM) |
|
12 |
175-5867
|
Filter gasket |
1 |
|
|
13a |
175-5868
|
Short clear filter bowl |
1 |
(OEM) |
|
13b |
991-8575
|
Short bowl (clear) |
1 |
(NON-OEM) |
|
14 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
15 |
999-0740
|
Nut M5-.8 hex stainless steel |
4 |
|
|
16a |
275-1454
|
12 inch vinyl hose |
1 |
(OEM) |
|
16b |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
10 in |
(NON-OEM) |
|
17 |
175-2883
|
Solution decal bracket |
1 |
|
|
18 |
175-2884
|
Solution flow decal |
1 |
|
|
19 |
175-7931
|
Compression spring |
1 |
|
|
20 |
175-7930
|
Indicator valve knob (black) |
1 |
|
|
21 |
175-7884
|
24V solution solenoid valve assembly |
1 |
(includes 22) |
|
22 |
175-8698
|
Solenoid valve rebuild kit (internal parts) |
1 |
|
|
23 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
24 |
175-4544
|
Washer M6 locking |
2 |
|
|
25 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
|
26 |
175-6081
|
Hose clamp |
4 |
|
|
