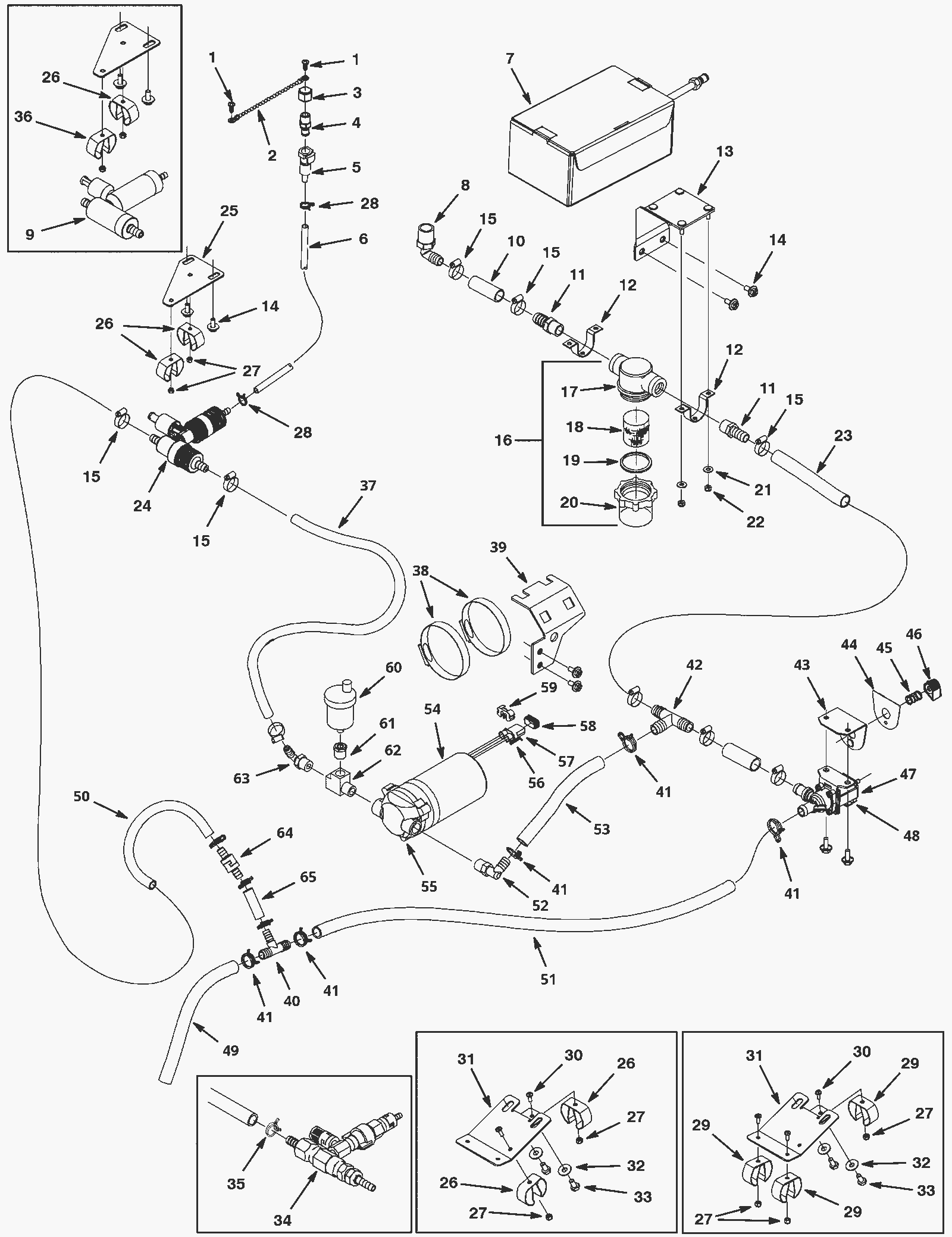

Solution Assembly - FaST Model

#PartDescription ReqNotesAvailability
1 999-0531 Screw M5-.8 x 16mm pan head slotted zinc 2
2 175-5129 Ball chain #10 stainless steel 1
3 175-5313 Plastic cap fitting 1
4 275-4743 Straight plastic fitting 1
5 275-4744 Female coupling 1
6 175-5305 Hose 1/4 x 3 foot 1
7 N/A Not available 1 (detergent) (order through Tennant directly)
8 175-7834 Plastic fitting 1
9a 275-5727 FaST injector kit 1 (between SN 10348538 and SN 10538042)
9b 275-5726 FaST injector kit 1 (between SN 10347532 and SN 10582616)
10 175-1043 3 inch hose 1
11 175-1025 Straight brass fitting 2
12 175-3690 U clamp 2
13 175-2882 Filter mounting bracket weldment 1
14 999-1383 Screw M6-1 x 16mm hex head stainless steel 4 (after SN 10369602)
15 175-6081 Hose clamp 2 (after SN 10348537)
16a 175-9025 In-line screen filter assembly 1 (includes 17-20) (OEM)
16b 991-8582 Mesh inline filter 1 (NON-OEM)
17 175-5865 Top filter body housing 1
18a 175-5866 Mesh filter screen 1 (OEM)
18b 991-8569 Mesh filter screen stainless steel 1 (NON-OEM)
19 175-5867 Filter gasket 1
20a 175-5868 Short clear filter bowl 1 (OEM)
20b 991-8575 Short bowl (clear) 1 (NON-OEM)
21 999-0998 Washer #10 flat stainless steel 4
22 999-0740 Nut M5-.8 hex stainless steel 4
23 275-1454 12 inch vinyl hose 4
24a 275-5727 FaST injector kit 1 (after SN 10538042)
24b 275-7549 FaST injector kit 1 (after SN 10582616)
25 275-5728 FaST injector plate 1 (after SN 10369602)
26 175-4526 Spring clip 2 (after SN 10538042) (24 inch disk and 26 inch cylindrical models)
27 999-0954 Nut M4-.7 nylon insert lock stainless steel 2 (qty 3 before SN 10347532)
28 175-5304 Hose clamp 2
29 175-7938 Spring clip (black) 3 (before SN 10347532)
30 999-0534 Screw M4-.7 x 10mm pan head slotted zinc 2 (before SN 10369603)
31 N/A Not available 1 (FaST injector plate) (replaced by 25)
32 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2 (before SN 10369603)
33 999-9116 Screw M6-1 x 12mm hex head stainless steel 2
34a 275-5730 FaST conversion kit (24 and 26 inch) 1 (before SN 10348538)
34b 275-5729 FaST conversion kit (28 and 32 inch) 1 (before SN 10347532)
35 175-3671 Hose clamp 5 (before SN 10348538)
36 175-7938 Spring clip (black) 1 (28 inch - 32 inch disk and 32 inch cylindrical models)
37 275-1534 3 foot PVC hose (braided) (Tennant Industrial) 1
38 997-2009 Hose clamp 2
39 275-1535 Pump mounting bracket 1
40 175-4810 Tee fitting 1
41 375-0291 Hose clamp 5
42 175-3329 Plastic tee fitting 1
43 175-2883 Solution decal bracket 1
44 175-2884 Solution flow decal 1
45 175-7931 Compression spring 1
46 175-7930 Indicator valve knob (black) 1
47 175-7884 24V solution solenoid valve assembly 1 (includes 48)
48 175-8698 Solenoid valve rebuild kit (internal parts) 1
49 275-1454 12 inch vinyl hose 1
50 275-1538 2 1/2 foot hose 1
51 275-1537 45 inch vinyl tubing 1
52 175-3685 90 degree elbow fitting 1
53 275-1454 12 inch vinyl hose 1
54 175-7934 24V solution pump 1 (includes 55-59)
55 275-1536 Solution pump head 1
56 175-8753 Female connector 1
57 175-8755 TERMINAL, FEM, MP280, SEALED, 18-16GA (Tennant Industrial) 1
58 175-8754 14/16 wire seal 1
59 175-8756 Male and female secondary lock 1
60 175-7941 Air vent valve 1
61 175-6863 Straight brass fitting 1
62 175-5869 Tee fitting 3/8 x 3/8 inch 1
63 175-7933 90 degree plastic elbow 1
64 175-7929 Check valve 1
65 175-8670 Hose 3/8 x 6 1/2 inch 1
