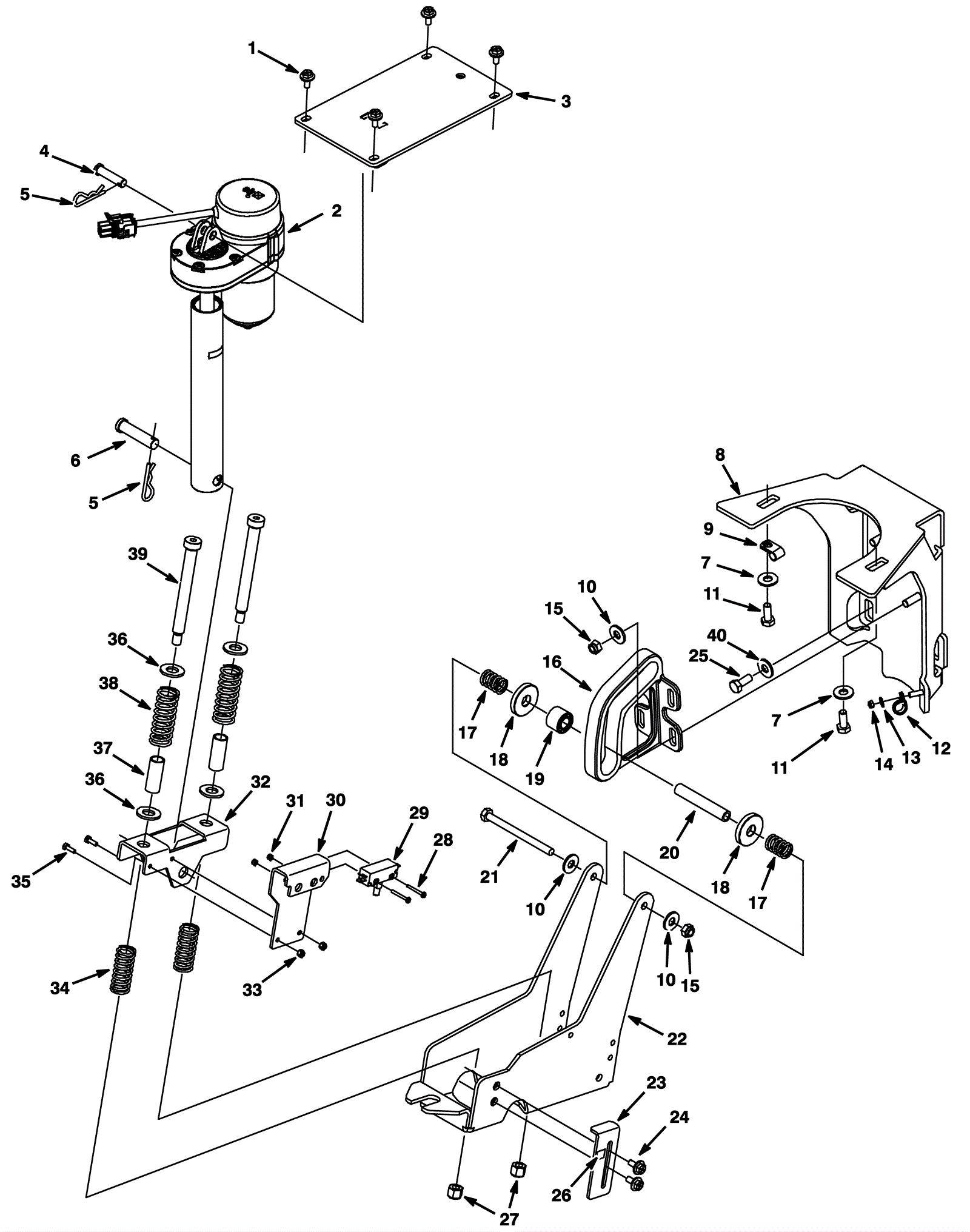

SS5 Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 4 ships same day
2 175-8654 Actuator $416.35 1 ships same day
3 275-1513 Actuator weldment $134.09 1 usually ships 5-16 days
4 175-2111 Clevis pin $3.85 1 ships same day
5 175-4331 Cotter hair pin $3.96 2 ships same day
6 175-2382 Clevis pin $4.84 1 usually ships 5-16 days
7 175-3176 Washer 3/8 flat steel plated $2.42 2 ships same day
8 275-5313 Actuator support bracket $150.81 1 usually ships 1-5 days
9 175-2152 P clamp $3.30 1 usually ships 1-5 days
10 999-9097 Washer M8 flat stainless steel $0.99 6 ships same day
11 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
12 275-0559 P clamp $3.96 1 usually ships 5-16 days
13 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
14 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
15 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 5 usually ships 11-24 days
16 275-1516 Roller guide bracket $172.59 1 ships same day
17 175-4371 Compression spring $3.96 2 usually ships 5-16 days
18 175-4358 Washer 1 1/2 thrust $13.75 2 usually ships 5-16 days
19 275-1517 Roller $4.07 1 ships same day
20 275-1518 Roller shaft $68.42 1 ships same day
21 175-0822 SCREW, HEX, M8 X 1.25 X 100, SS (Tennant Industrial) $7.52 1 usually ships 5-16 days
22 275-1521 Roller bracket $281.49 1 usually ships 1-5 days
23 275-4784 Shut off switch bracket $19.47 1 usually ships 5-16 days
24 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
25 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
26 275-4785 Scrubhead switch label $3.63 1 usually ships 1-5 days
27 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
28 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
29a 175-0084 Actuator push switch $17.16 1 (OEM) ships same day
29b 991-8558 Switch $14.16 1 (NON-OEM) ships same day
30 275-4786 275-7133 $100.21 1 ships same day
31 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
32 275-1519 Spring bracket $33.66 1 ships same day
33 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
34 175-2443 2 1/2 inch compression spring $4.95 2 usually ships 5-16 days
35 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 2 ships same day
36 999-0114 Washer 1/2 SAE flat $0.99 4 ships same day
37 275-1520 Sleeve $4.29 2 usually ships 1-5 days
38 175-2199 Compression spring $4.95 2 usually ships 5-16 days
39 175-2856 Bolt 3/8-16 x 1/2 x 4 shoulder $21.01 2 usually ships 1-5 days
40 275-7133 Washer .34B x 1.25D x .11 flat stainless steel $4.95 2 ships same day
N/S 175-7795 Cable tie $3.85 3 ships same day
