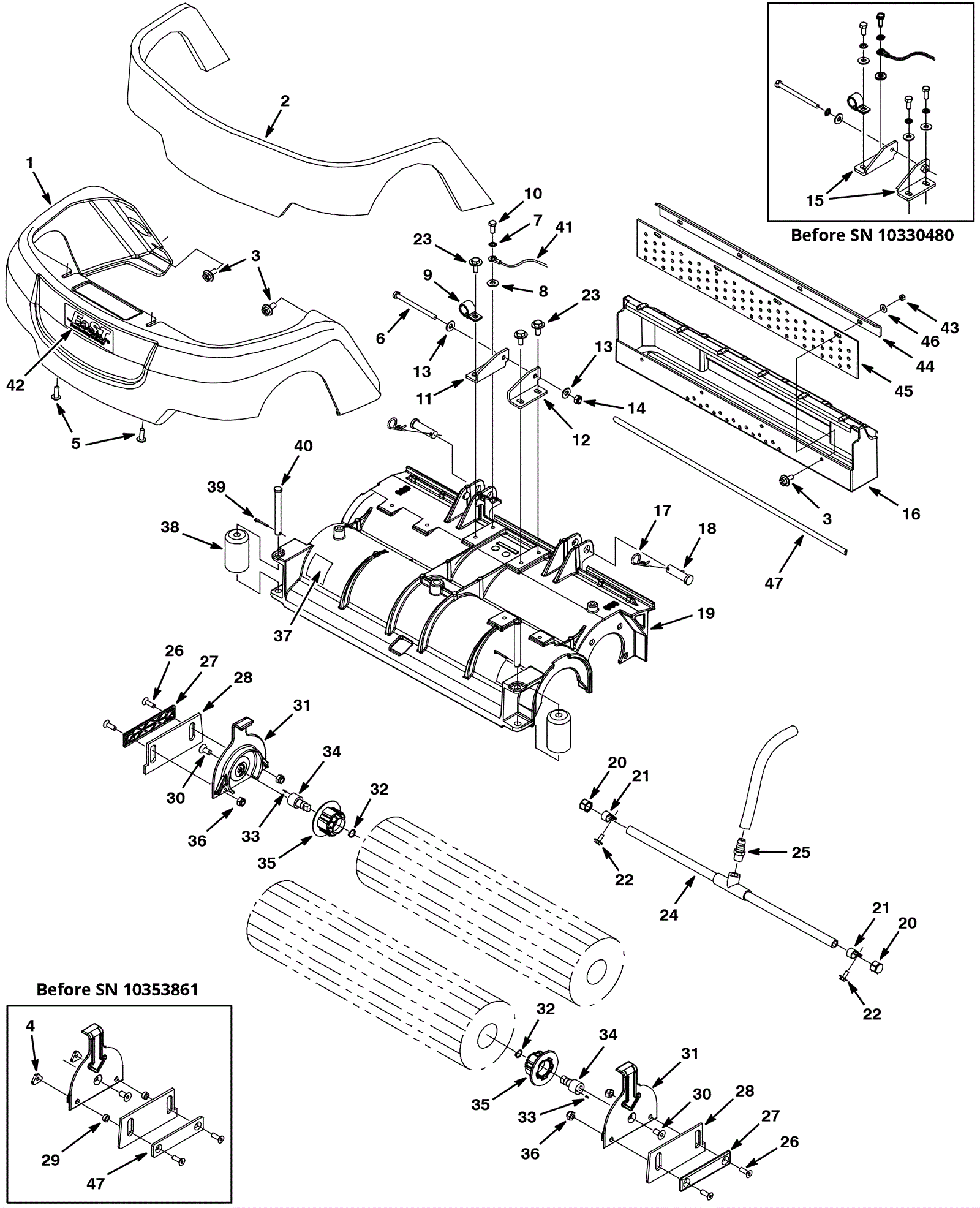

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-4739
|
Replacement cylindrical head cover kit |
1 |
(includes item 2) |
|
2 |
275-4740
|
Cylindrical front sound insulation |
1 |
|
|
3 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
6 |
(qty 7 for 32 inch model) |
|
4 |
175-8691
|
Nut scrubhead skirt retainer |
4 |
(before SN 10353861) |
|
5 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
|
6 |
275-1474
|
Screw M8-1.25 x 110mm hex head (Tennant Industrial) |
1 |
|
|
7 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
1 |
|
|
8 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
9 |
175-3005
|
P clamp |
1 |
|
|
10 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
|
11 |
275-1500
|
Right head lift bracket |
1 |
(after SN 10330479) |
|
12 |
275-4742
|
Left head lift bracket |
1 |
(after SN 10330479) |
|
13 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
14 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
(after SN 10330479) |
|
15 |
N/A
|
Not available |
1 |
(head lift bracket assembly) (replaced by 11-14) (before SN 10330480) |
|
16a |
275-1504
|
Hopper |
1 |
(26 inch) |
|
16b |
275-1511
|
Debris hopper (32 inch) |
1 |
(32 inch) |
|
17 |
175-2106
|
Cotter hair pin |
2 |
|
|
18 |
175-2105
|
Clevis pin |
2 |
|
|
19a |
275-1496
|
Cylindrical brush housing |
1 |
(26 inch) |
|
19b |
275-1507
|
32 inch cylindrical brush housing |
1 |
(32 inch) |
|
20 |
275-1505
|
Cap fitting |
2 |
|
|
21 |
275-0559
|
P clamp |
2 |
|
|
22 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
23 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
3 |
|
|
24a |
275-9424
|
28 inch spray bar tube assembly |
1 |
(26 inch) |
|
24b |
275-1512
|
32 and 36 inch spray bar tube assembly |
1 |
(32 inch) |
|
25 |
175-5234
|
Plastic fitting |
1 |
|
|
26 |
175-9240
|
Screw M8-1.25 x 25mm flat head socket nylok stainless steel |
4 |
|
|
27 |
275-5304
|
Side squeegee blade retainer |
2 |
(after SN 10353860) |
|
28 |
275-1485
|
Cylindrical scrubber side skirt |
2 |
|
|
29 |
275-5304
|
Side squeegee blade retainer |
4 |
(before SN 10353861) (replaced by 27) |
|
30a |
275-6281
|
Cylindrical head door assembly |
2 |
(includes 30b-35) |
|
30b |
175-2863
|
Screw M10-1.5 x 20mm flat head stainless steel nylok |
1 |
|
|
31 |
175-2474
|
Brush door |
1 |
|
|
32 |
175-2472
|
Retaining ring |
1 |
|
|
33 |
175-2477
|
Roll pin |
1 |
|
|
34 |
175-2476
|
Idler plug shaft |
1 |
|
|
35 |
175-2478
|
Brush idler plug |
1 |
|
|
36 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
(after SN 10353860) |
|
37 |
175-1238
|
Moving parts decal |
2 |
|
|
38 |
175-2512
|
Bumper roller |
2 |
|
|
39 |
175-5080
|
Cotter pin |
2 |
|
|
40 |
175-2116
|
Clevis pin |
2 |
|
|
41 |
275-1439
|
Wire 12 gauge x 250mm |
1 |
|
|
42 |
275-4732
|
White and black logo decal (OBSOLETE) |
1 |
|
|
43 |
999-1308
|
Nut M6-1 hex stainless steel |
4 |
(qty 5 for 32 inch model) |
|
44a |
275-1502
|
Scrub head debris tray lip |
1 |
(26 inch) |
|
44b |
275-1509
|
Debris skirt retainer (32 inch) |
1 |
(32 inch) |
|
45a |
275-1503
|
Debris tray skirt |
1 |
(26 inch) |
|
45b |
275-1510
|
Debris skirt (32 inch) |
1 |
(32 inch) |
|
46 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
(qty 5 for the 32 inch model) |
|
47 |
275-5304
|
Side squeegee blade retainer |
2 |
(before SN 10353861) (replaced by 27) |
|
48 |
175-2507
|
Channel |
2 |
(32 inch only) |
|
