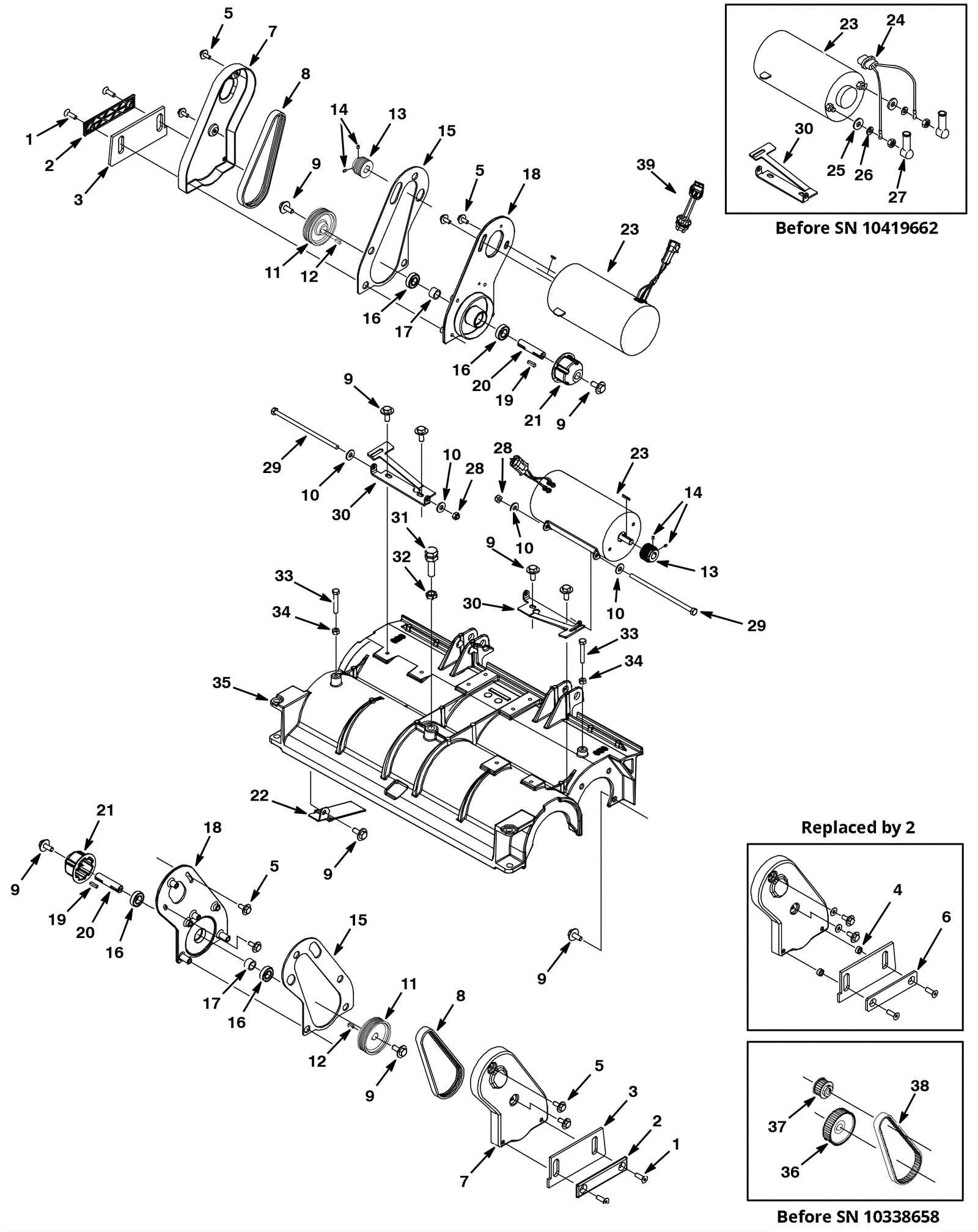

SS5 Scrub Head Assembly - Cylindrical

#PartDescription ReqNotesAvailability
1 175-9240 Screw M8-1.25 x 25mm flat head socket nylok stainless steel 4 usually ships 16-21 days
2 275-5304 Side squeegee blade retainer 2 (after SN 10353861) usually ships 16-21 days
3 275-1485 Cylindrical scrubber side skirt 2 usually ships 16-21 days
4 N/A Not available 4 (bushing) (replaced by 2) (before SN 10353861) usually ships 3-26 days
5 999-1383 Screw M6-1 x 16mm hex head stainless steel 8 usually ships 8-9 days
6 275-5304 Side squeegee blade retainer 2 (before SN 10353861) (replaced by 2) usually ships 16-21 days
7 275-1487 Belt cover 2 usually ships 16-21 days
8 275-4735 Drive belt 2 (after SN 10338657) usually ships 16-21 days
9 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 16 usually ships 16-21 days
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4 usually ships 11-14 days
11 275-4737 Sheave 2 (after SN 10338657) usually ships 16-21 days
12 275-1489 KEY, SQ, 0.19 X 0.19, 0.50L (Tennant Industrial) 2 usually ships 16-21 days
13 275-4738 Sheave 2 (after SN 10338657) usually ships 16-21 days
14 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 4 usually ships 11-14 days
15 275-1490 Belt cover gasket 2 usually ships 16-21 days
16 175-2471 Ball bearing 4 usually ships 16-21 days
17 175-8820 Spacer 2 usually ships 16-21 days
18 275-1491 Motor bracket 2 usually ships 16-21 days
19 175-8818 Square keyway 2 usually ships 16-21 days
20 275-1492 Drive shaft 2 usually ships 16-21 days
21 175-8819 Drive plug 2 usually ships 16-21 days
22 275-1497 Water deflector 1 usually ships 16-21 days
23a 275-5305 24V brush motor 2 (includes 23b) (after SN 10419661) usually ships 16-21 days
23b 275-5306 Carbon brush (pkg of 4) 2 (after SN 10419661) usually ships 16-21 days
23c 275-5307 24V brush motor kit 2 (includes 23d-23e) (before SN 10419662) usually ships 1-5 days
23d 175-8674 Carbon brush (pkg of 4) 2 (before SN 10419662) usually ships 1-5 days
23e 175-8675 Carbon brush spring 8 (before SN 10419662) usually ships 1-5 days
24 175-8677 Brush motor harness 2 (before SN 10419662) usually ships 1-5 days
25 999-0024 Washer 5/16 flat stainless steel 4 (before SN 10419662) usually ships 11-14 days
26 999-1053 Washer 5/16 internal star lock stainless steel 6 (before SN 10419662) usually ships 11-14 days
27 175-8682 Terminal boot (black) 4 (before SN 10419662) usually ships 1-5 days
28 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2 (after SN 10353860) usually ships 11-14 days
29 275-1494 Screw M8-1.25 x 180mm hex head stainless steel 2 usually ships 16-21 days
30 275-5308 Motor mounting bracket 2 usually ships 1-5 days
31 275-1472 Adjustable stud 1 usually ships 16-21 days
32 175-9223 Nut M16 x 2 hex jam 1 usually ships 1-5 days
33 999-1692 Screw M8-1.25 x 50mm hex stainless steel 2 usually ships 11-14 days
34 999-1424 Nut M8-1.25 hex stainless steel 2 usually ships 11-14 days
35a 275-1496 Cylindrical brush housing 1 (26 inch) usually ships 1-5 days
35b 275-1507 32 inch cylindrical brush housing 1 (32 inch) usually ships 1-5 days
36 175-8817 Belt kit (belts, square keyways and hardware) 2 (before SN 10338658) usually ships 16-21 days
37 175-2465 Drive sprocket 2 (before SN 10338658) usually ships 16-21 days
38 175-8816 Belt 2 (before SN 10338658) usually ships 16-21 days
39 275-5309 Wiring harness adapter 1 (after SN 10419661) usually ships 16-21 days
