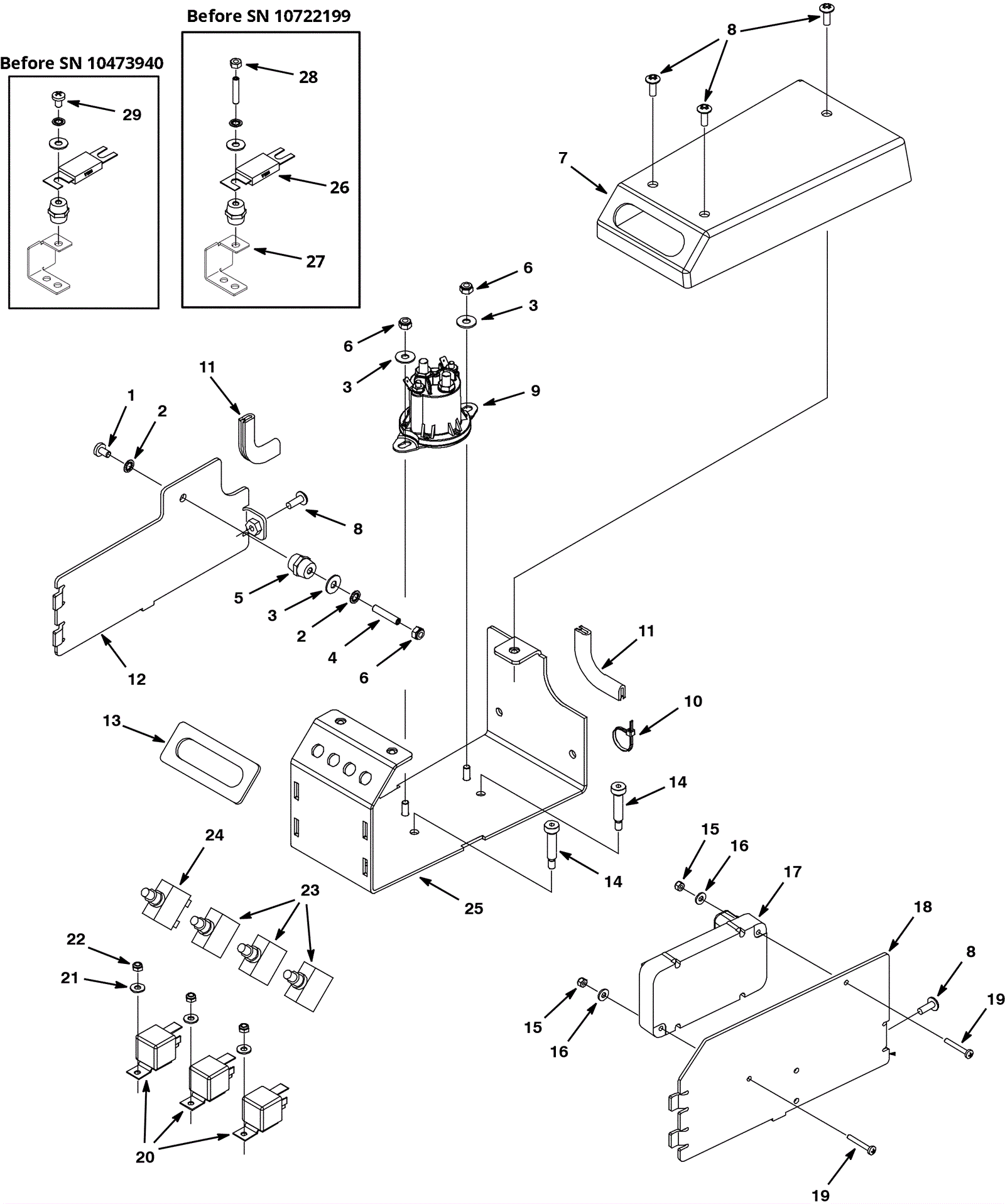

Panel Assembly

#PartDescription ReqNotesAvailability
1 999-0807 Screw M6-1 x 10mm flat head phillips 1 (qty 2 before SN 10722199)
2 175-4544 Washer M6 locking 2 (qty 4 before SN 10722199)
3 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3 (qty 6 before SN 10722199)
4 175-7843 Screw M6-1 x 30mm set stainless steel 1
5 175-7864 Wire stand off 1 (qty 2 before SN 10722199)
6 999-0497 Nut M6-1 nylon insert lock stainless steel 4
7 275-4716 Electronics cover 1
8 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 5
9a 375-1275 150amp relay 1 (after SN 10722198)
9b 275-4717 100amp relay 1 (before SN 10722199)
10 175-7795 Cable tie 1
11 675-9483 Plastic trim molding 2
12 217-4718 Side bracket right side 1
13 247-4719 Electronics cover gasket 1
14 775-0390 Bolt M6-.8 x 30mm shield 2
15 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
16 999-0266 Washer #8 SAE flat stainless steel 2
17 247-4720 Drive module 1
18 275-4721 Side bracket left side 1
19 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel 2
20 175-6588 24V 70amp elevated relay 3
21 999-0998 Washer #10 flat stainless steel 3
22 999-0740 Nut M5-.8 hex stainless steel 3
23 991-1631 25amp circuit breaker 3
24 175-2336 10amp circuit breaker 1
25a 375-1291 Instrument panel 1 (after SN 107722198)
25b 275-4722 Electrical panel weldment 1 (before SN 10722199)
26 275-1438 100amp fuse 1 (before SN 10722199)
27 275-1434 Stand-off bracket 1 (before SN 10722199)
28 999-1308 Nut M6-1 hex stainless steel 1 (between SN 10473940 and SN 10722198)
29 999-0807 Screw M6-1 x 10mm flat head phillips 1 (replaced by 4 and 28)
