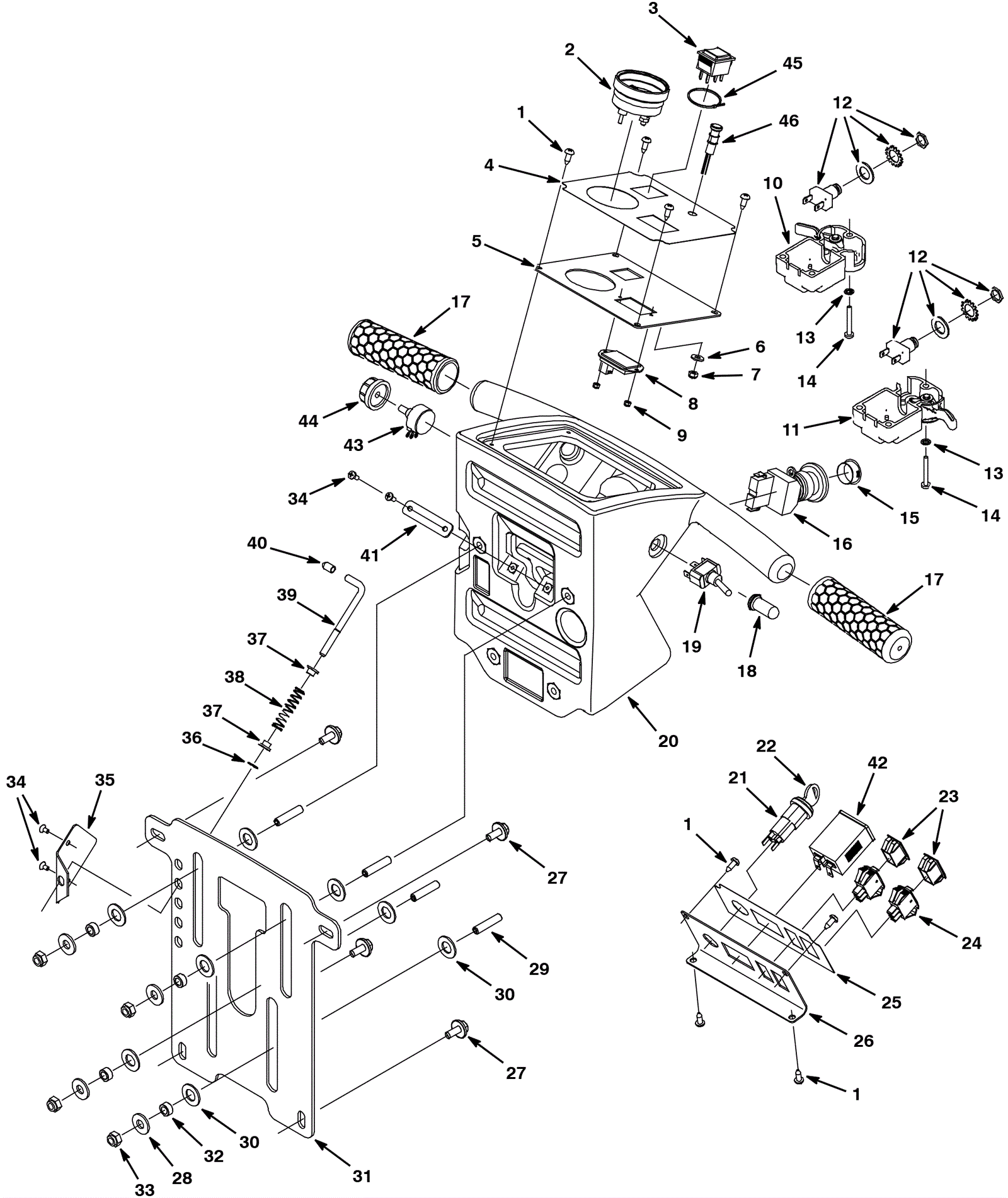

SS5 Control Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-5815 Screw 10 x 1/2 pan head phillips black $3.08 8 ships same day
2 275-4700 Brush pressure gauge 20-40amp $81.07 1 ships same day
3 175-8630 Brush pressure switch $26.73 1 ships same day
4a 275-4701 Upper operational label $19.80 1 (standard and FaST models) ships same day
4b 275-5718 Upper console label Ec-H2o $15.62 1 (ec-H20) (after SN 10378379) ships same day
5 275-4703 Upper operational panel $81.40 1 ships same day
6 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
7 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
8 175-4935 36V Battery gauge $89.10 1 usually ships 5-16 days
9 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
10 275-4697 Right hand console trigger assembly $56.65 1 (includes 012) ships same day
11 275-4704 Left hand console trigger assembly $56.65 1 (includes 012) ships same day
12 375-1289 Switch kit $32.89 2 usually ships 5-16 days
13 999-1083 Washer #8 internal star lock stainless steel $0.99 6 ships same day
14 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 6 usually ships 11-24 days
15 175-3126 Plug $3.96 1 ships same day
16 275-1416 Safety shut-off switch $40.01 1 (optional) ships same day
17 275-4706 Handle grip $6.27 2 ships same day
18 175-3104 Switch boot $19.91 1 ships same day
19 175-3103 Toggle switch $60.72 1 ships same day
20 275-4707 Control housing kit $556.82 1 usually ships 5-16 days
21 175-7872 Key switch with 2 keys $53.13 1 (includes 022) ships same day
22 991-1634 Key (pkg of 2) $10.67 1 ships same day
23 175-2698 Switch plug $5.83 2 ships same day
24 175-7871 Rocker switch $17.16 2 (optional) usually ships 5-16 days
25a 275-4708 Lower operational label $11.55 1 (standard and FaST models) usually ships 5-16 days
25b 275-5719 Lower console label Ec-H2o $20.24 1 (ecH20) (after SN 10378379) usually ships 1-5 days
26 275-4710 Lower instrument panel $40.81 1 usually ships 1-5 days
27 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 4 ships same day
28 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
29 175-4271 Screw M8 x 35mm set $3.96 4 usually ships 5-16 days
30 999-0566 Washer 1/2 flat nylon $0.99 8 ships same day
31 275-4711 Console mounting bracket $73.70 1 usually ships 1-5 days
32 175-4269 Bearing $3.96 4 usually ships 5-16 days
33 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
34 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 4 ships same day
35 175-4250 Retainer plate $10.12 1 usually ships 5-16 days
36 175-4252 Retaining ring $3.96 1 usually ships 5-16 days
37 175-4255 Flanged bushing $3.96 2 usually ships 5-16 days
38 175-4256 Compression spring $3.96 1 usually ships 5-16 days
39 175-4254 Adjustment lever $13.75 1 usually ships 5-16 days
40 175-4278 Cap $3.30 1 usually ships 5-16 days
41 275-4713 Retaining bracket $8.03 1 usually ships 5-16 days
42 275-9900 Hour meter $52.69 1 ships same day
43 175-7847 Potentiometer assembly $81.18 1 ships same day
44 275-4714 Knob $15.18 1 ships same day
45 175-7795 Cable tie $3.85 1 ships same day
46 275-4715 LED light $100.21 1 (ecH20) (after SN 10378379) ships same day
