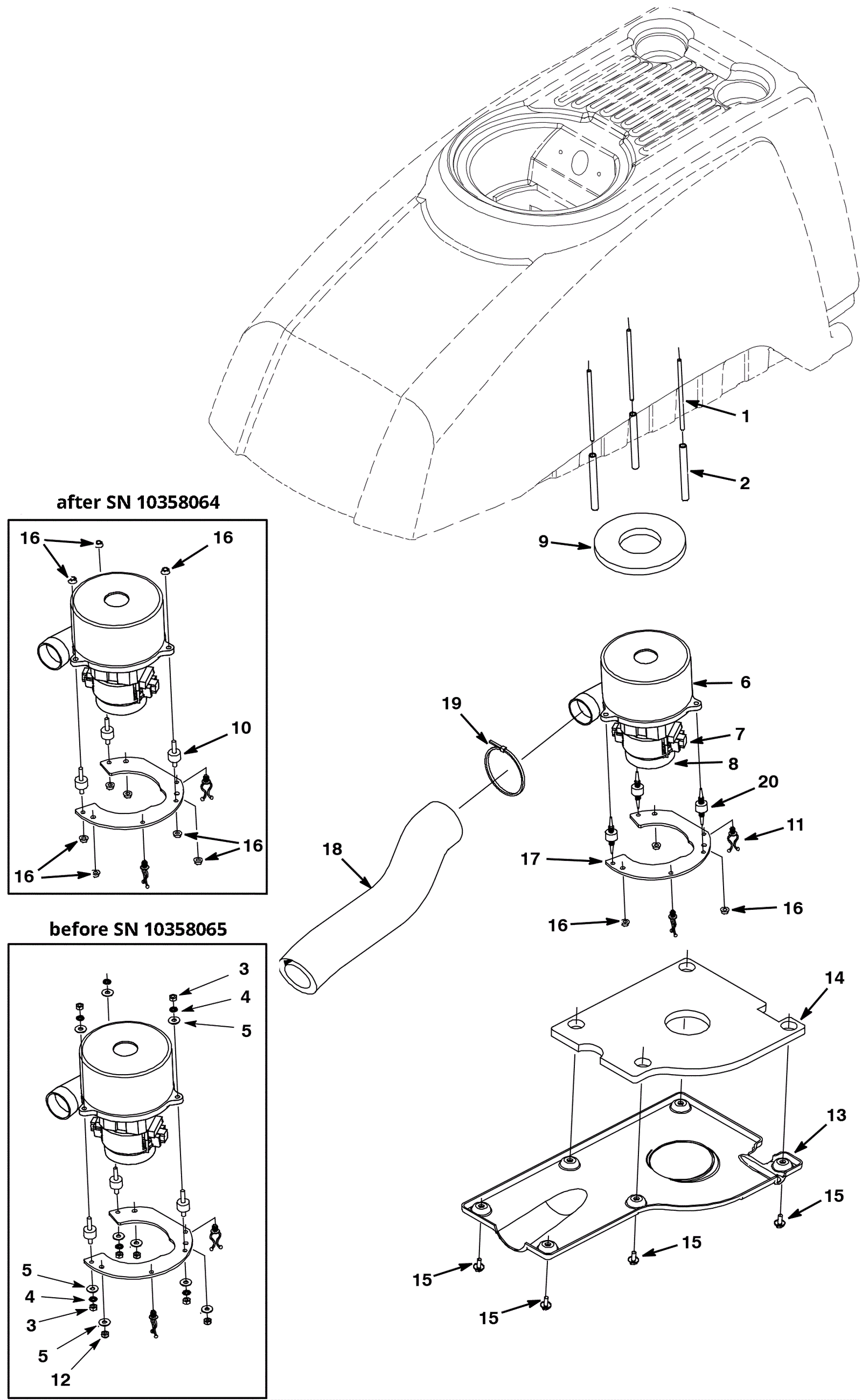

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-7788
|
Rod M6-1 x 5.5mm full thread |
3 |
|
|
2 |
275-1375
|
Steel tube |
3 |
|
|
3 |
999-1308
|
Nut M6-1 hex stainless steel |
6 |
(before SN 10358065) |
|
4 |
999-6678
|
Washer M6 nord lock |
6 |
(before SN 10358065) |
|
5 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
9 |
(before SN 10358065) |
|
6a |
175-4245
|
24V 3 stage vacuum motor |
1 |
(includes 7-8) (OEM) |
|
6b |
991-1210-P
|
24V 3 stage vacuum motor tangential with Packard plug |
1 |
(NON-OEM) |
|
7 |
175-2658
|
Carbon brush (pkg of 2) |
1 |
|
|
8 |
991-1220
|
Plastic fan cover (for plastic covered brushes) |
1 |
|
|
9 |
175-6085
|
Gasket |
1 |
|
|
10 |
675-9898
|
Vibration isolator |
3 |
(before SN 10358065) |
|
11 |
175-2095
|
Keeper clip |
2 |
|
|
12 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
(before SN 10358065) |
|
13 |
175-2874
|
Vac noise cover |
1 |
|
|
14 |
275-1379
|
Foam insulator pad |
1 |
|
|
15 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
6 |
|
|
16 |
275-5085
|
Nut M6-1 x 16 hex head stainless steel |
3 |
(after SN 10358064) |
|
17 |
275-1380
|
Mounting bracket |
1 |
|
|
18 |
175-3401
|
Vacuum motor exhaust hose |
1 |
|
|
19 |
175-7795
|
Cable tie |
1 |
|
|
20 |
275-9897
|
Isolator |
3 |
(after SN 10519188) |
|
