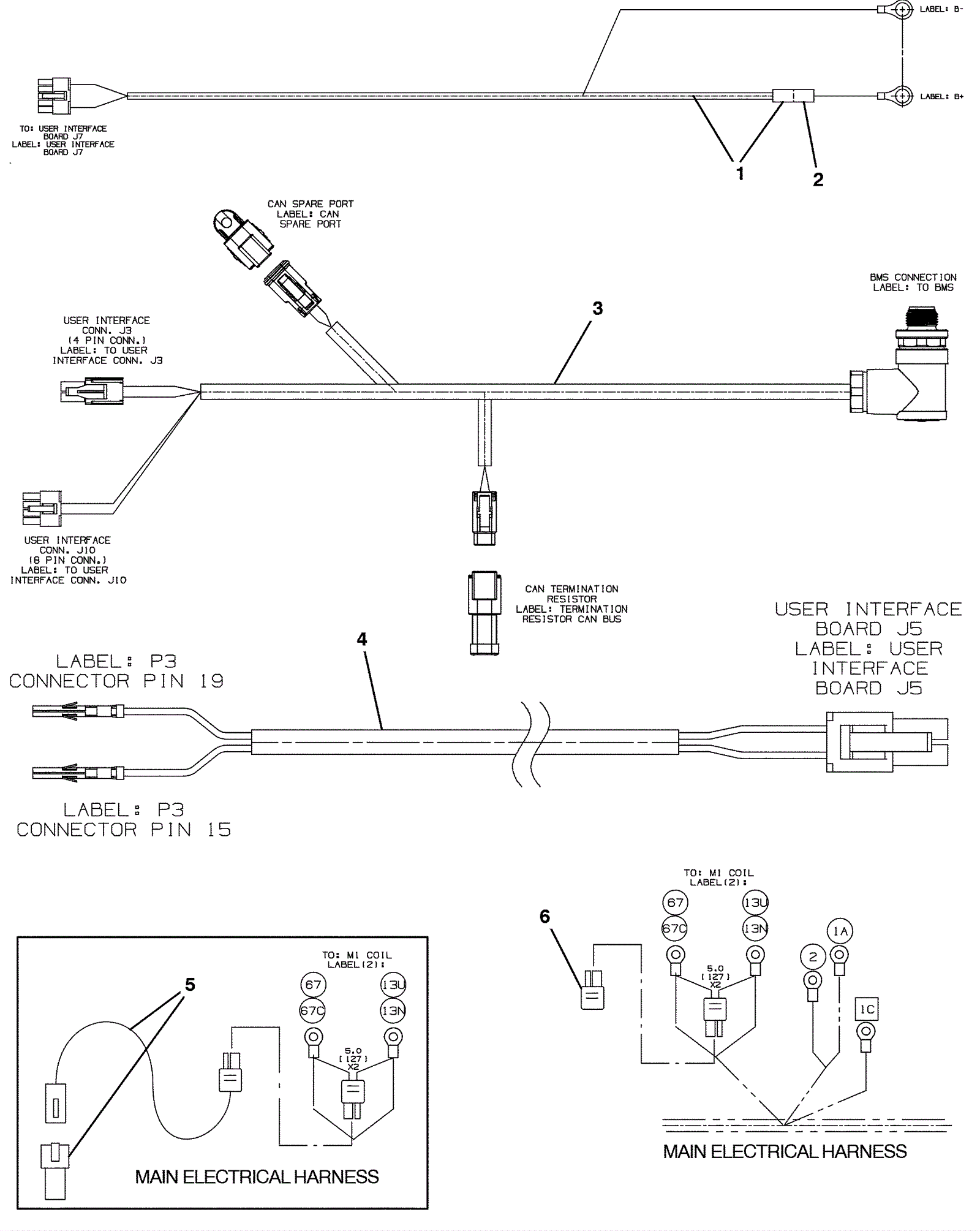

T7AMR Lithium-Ion Battery Wire Harness Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-9532 Harness (ui power) $37.70 1 (includes 2) usually ships 5-16 days
2 275-7904 Fuse (Tennant Industrial) $1.84 1 usually ships 1-5 days
3 675-9533 Harness (battery to UI) $215.00 1 usually ships 5-16 days
4 675-9534 Harness adaptor kit $104.40 1 usually ships 5-16 days
5 675-9535 Diode plug $60.10 1 (Sn from 10000000 to March 2022) usually ships 5-16 days
6 675-9536 Diode plug $12.10 1 (after March 2022) usually ships 5-16 days
