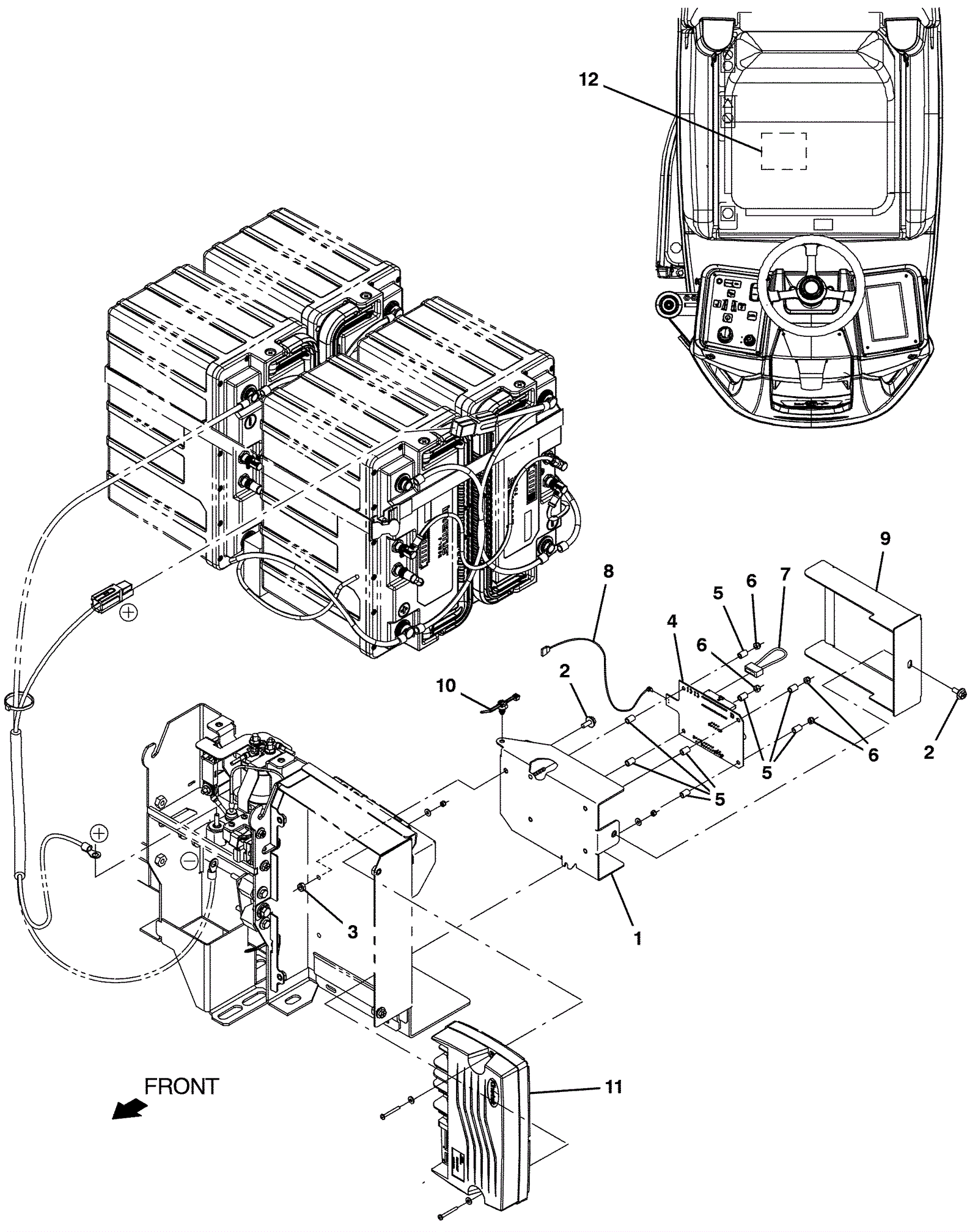

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-9525
|
Plate weldment |
1 |
|
|
2 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
3 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
4 |
675-9526
|
Interface circuitboard, Li-ion battery |
1 |
|
|
5 |
675-9527
|
Spacer |
8 |
|
|
6 |
175-2894
|
Nut M5-.8 hex nylon locking |
4 |
|
|
7 |
675-9528
|
Harness |
1 |
|
|
8 |
375-4076
|
USB cable |
1 |
|
|
9 |
675-9529
|
Bracket |
1 |
|
|
10 |
275-5197
|
Fir tree clip |
1 |
|
|
11 |
675-9530
|
Kinetek controller (Tennant Li-Ion ONLY) |
1 |
|
|
12 |
675-9531
|
Hazard battery decal |
1 |
|
|
