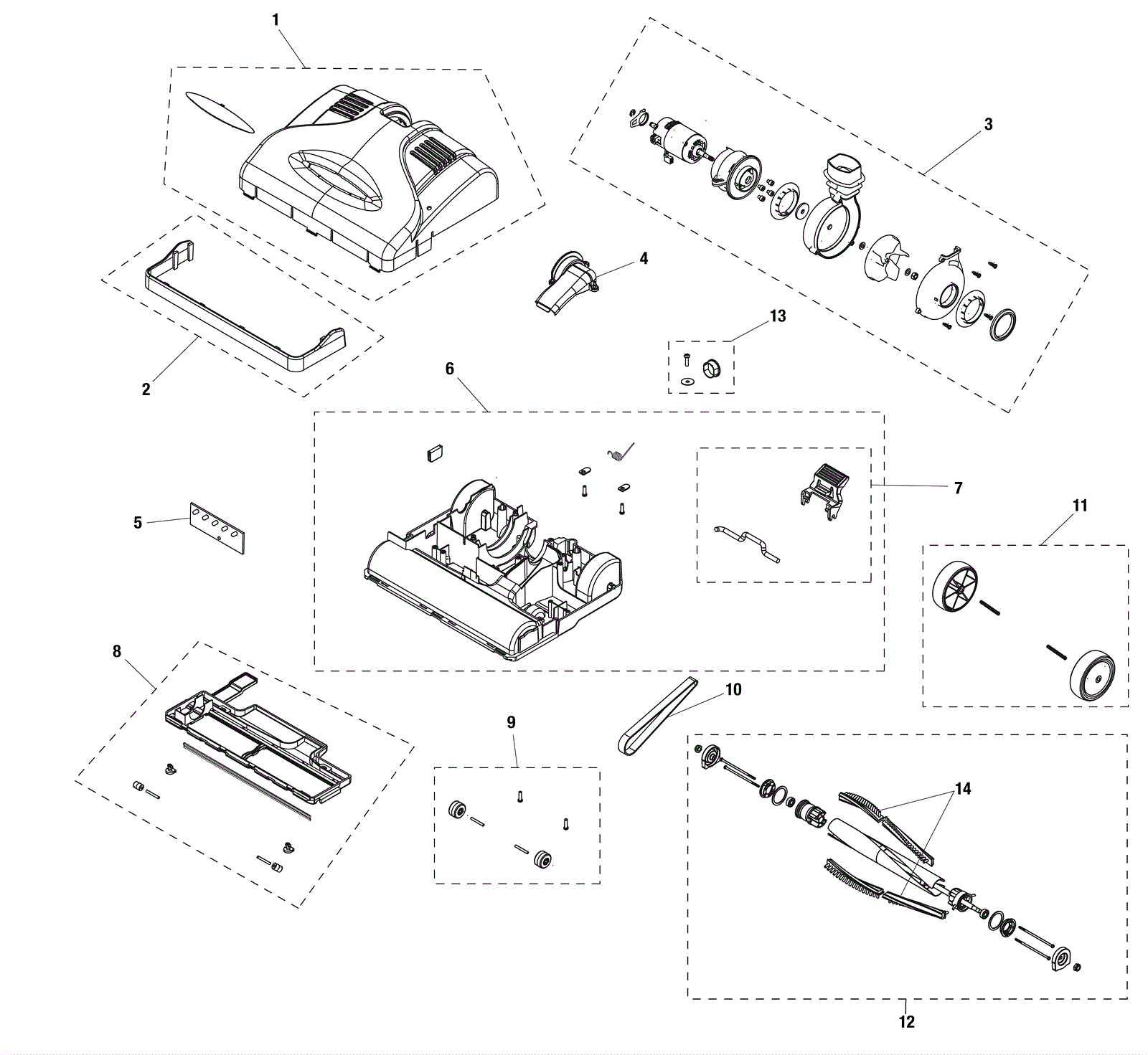

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-2941
|
Brush housing assembly |
1 |
|
|
2 |
375-2942
|
Vacuum bumper (Tennant Industrial) |
1 |
|
|
3 |
375-2943
|
Vacuum motor fan assembly |
1 |
|
|
4 |
375-2944
|
Inlet duct cover |
1 |
|
|
5 |
375-2945
|
LED Circuit board |
1 |
|
|
6 |
375-2946
|
Vacuum base tray assembly |
1 |
(includes 7) |
|
7 |
375-9825
|
Handle stop pedal assembly |
1 |
|
|
8 |
375-2947
|
Vacuum base shoe assembly |
1 |
|
|
9 |
375-2948
|
Base wheel assembly |
1 |
(includes 2 screws) |
|
10 |
275-6498
|
Brush belt (pkg of 6) |
1 |
|
|
11 |
375-2949
|
Rear wheel assembly |
1 |
|
|
12 |
375-9456
|
Brush assembly |
1 |
|
|
13 |
375-2950
|
Vacuum plug hole |
1 |
|
|
14 |
675-9418
|
Brush strip kit |
1 |
|
|
