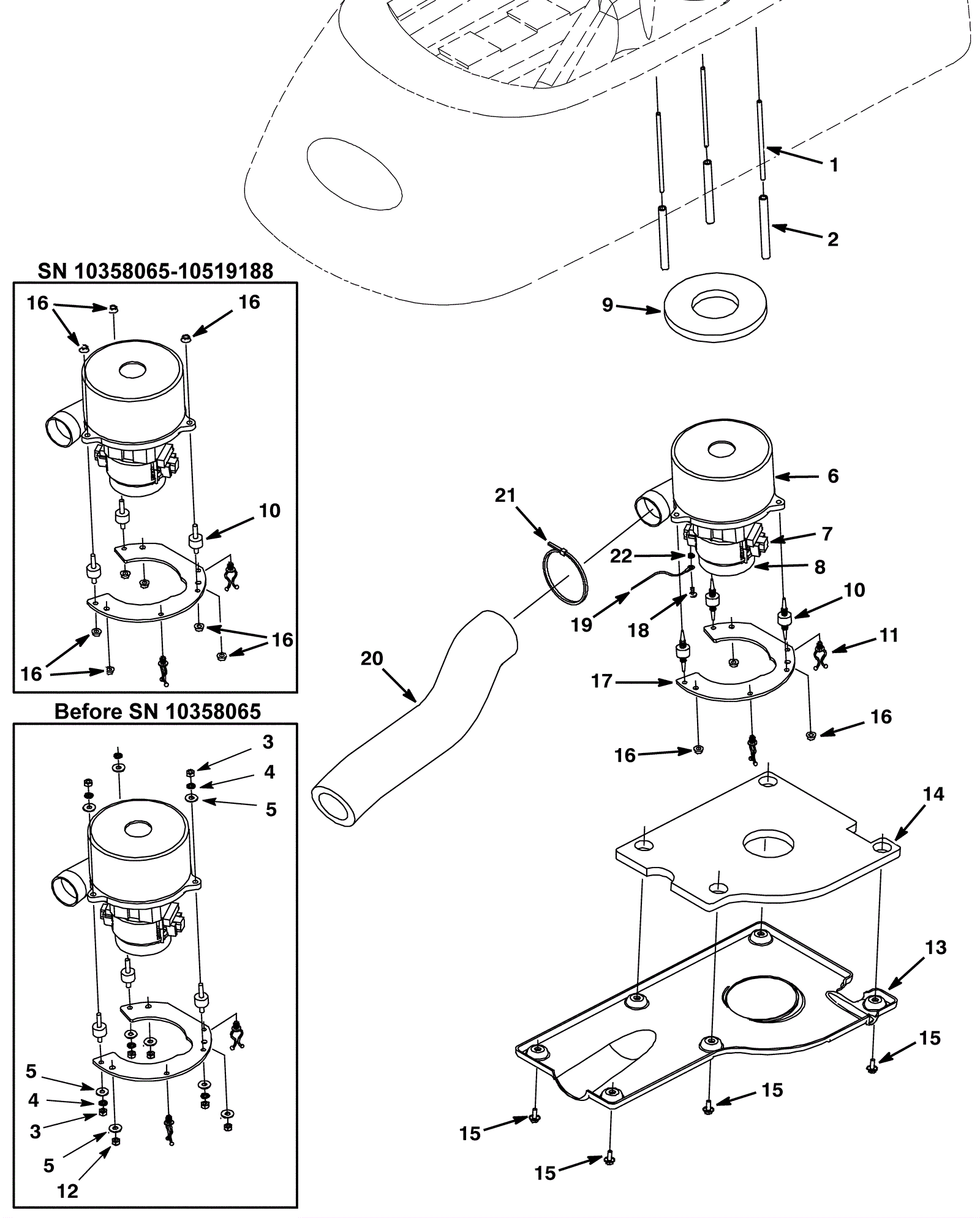

T5 Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-7788 Rod M6-1 x 5.5mm full thread $3.96 3 ships same day
2 275-1375 Steel tube $17.71 3 ships same day
3 999-1308 Nut M6-1 hex stainless steel $0.99 6 (before SN 10358065) ships same day
4 175-4544 Washer M6 locking $4.62 6 (before SN 10358065) ships same day
5 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 9 (before SN 10358065) ships same day
6a 275-1376 24V 3 stage vacuum motor kit $300.14 1 (includes 7-9) (OEM) usually ships 1-5 days
6b 991-1210-P 24V 3 stage vacuum motor tangential with Packard plug $95.50 1 (NON-OEM) usually ships 1-5 days
6c 175-6085 Gasket $9.90 1 ships same day
6d 991-1241 Packard connector male series 480 $4.79 1 ships same day
6e 991-1248 Packard pin $0.99 1 ships same day
7 175-2658 Carbon brush (pkg of 2) $35.53 1 ships same day
8 991-1220 Plastic fan cover (for plastic covered brushes) $17.87 1 usually ships 5-16 days
9 175-6085 Gasket $9.90 1 ships same day
10a 175-7792 Vibration isolator $12.43 3 (before SN 10519189) ships same day
10b 275-9897 Isolator $3.96 3 (after SN 10519188) ships same day
11 175-2095 Keeper clip $3.08 3 usually ships 5-16 days
12 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 3 (before SN 10358065) ships same day
13 275-1378 Vacuum foam cover kit $117.37 1 (includes 14) usually ships 5-16 days
14 275-1379 Foam insulator pad $23.87 1 ships same day
15 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 6 ships same day
16 275-5085 Nut M6-1 x 16 hex head stainless steel $2.42 3 (qty 9 before SN10519189) ships same day
17 275-1380 Mounting bracket $50.27 1 usually ships 5-16 days
18 175-4550 Ground screw $2.42 1 usually ships 1-5 days
19 275-1381 12 gauge wire $30.14 1 usually ships 1-5 days
20 175-3401 Vacuum motor exhaust hose $71.17 1 ships same day
21 175-7795 Cable tie $3.85 1 ships same day
22 999-1024 Washer 1/4 external tooth lock stainless steel $1.32 1 ships same day
