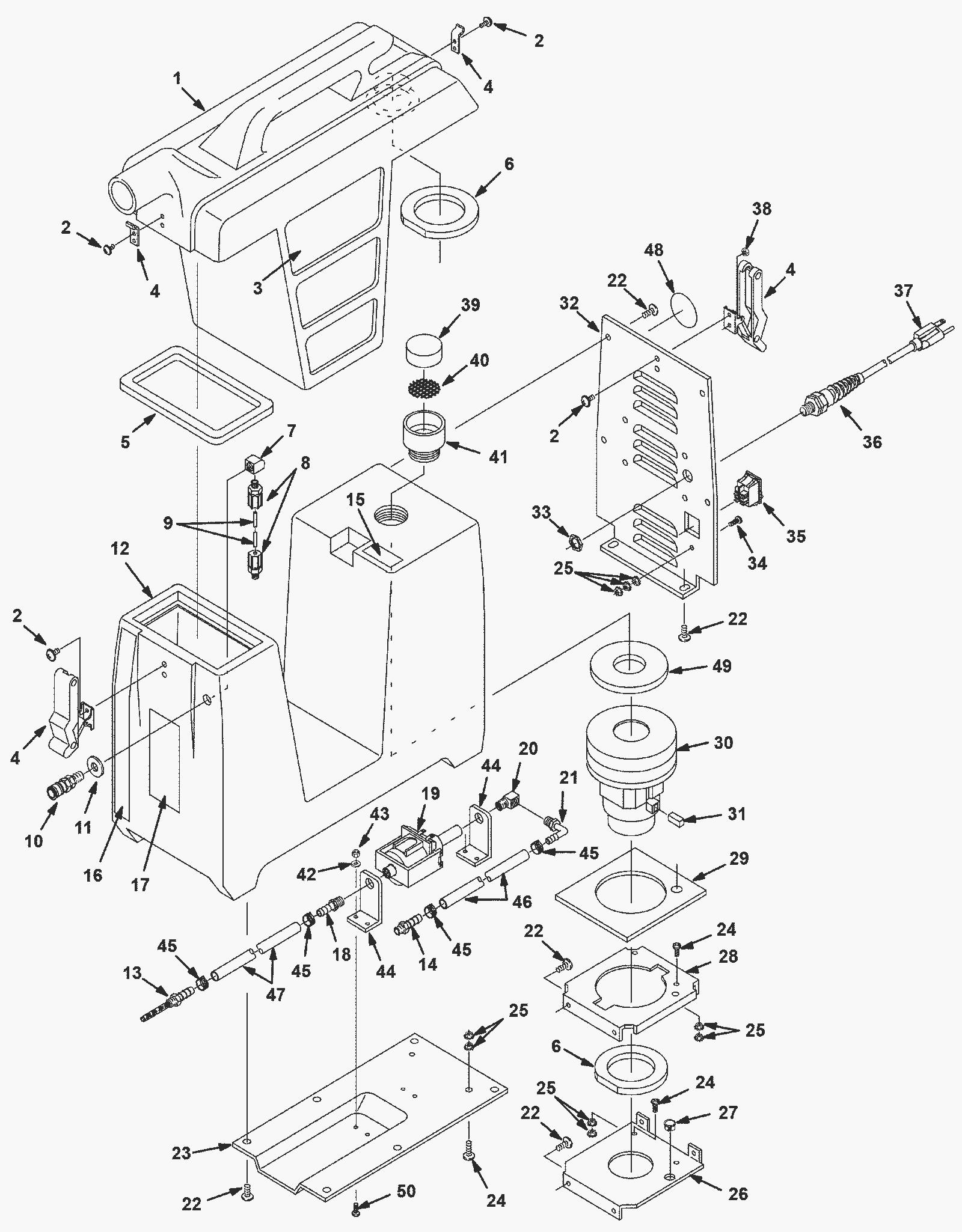

Entire Assembly

#PartDescription ReqNotesAvailability
1 175-1646 Recovery tank (white) (OBSOLETE) 1
2 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 8
3a 275-9770 Dual logo decal (Tennant Industrial) 2
3b 275-9771 TCO small decal 1
3c 175-1674 Nobles Anser decal (OBSOLETE) 2
4a 375-7802 Latch 2 (OEM)
4b 991-8561 Rubber draw latch with keeper 2 (NON-OEM)
5 175-1647 Solution tank gasket 1
6 175-1648 Gasket 2
7 175-1649 90 degree elbow 1
8 175-1650 1/8 inch male connector with nut 2
9 175-1651 Nylon tubing .17 x 12 inch 1
10 175-1652 1/8 inch female brass quick coupler 1
11 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
12 175-1653 Solution tank (white) 1 (includes 13-17)
13 175-1654 Solution tank filter 1
14 175-1655 Adapter fitting 1
15 175-6107 Always drain decal 1
16 175-1675 Gallon mark decal 1
17 175-3906 Warning decal 1
18 175-1659 Fitting 1
19a 175-1660 Solution pump (OBSOLETE) 1 (120v)
19b 175-3907 Pump 30PSI 230V 50HZ 1 (230v)
20 175-1661 90 degree elbow fitting 1
21 175-1662 90 degree elbow fitting 1
22 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 14
23 175-1663 Bottom panel (black) (OBSOLETE) 1
24 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated 3
25 999-0356 Nut 10-24 lock stainless steel 9
26 175-1664 Baffle plate 1
27 175-3134 Snap bushing 1
28 175-1665 Vacuum motor mounting plate 1
29 175-1666 Vacuum motor plate gasket 1
30a 275-5853 120V 2 stage vacuum motor 1 (includes 31a)(OEM)
30b 991-1304 120V 2 stage vacuum motor peripheral 4.8 dia (OBSOLETE) 1 (NON-OEM)
30c 175-3908 Vacuum motor 4.8 - 2 STG 1 (includes 31b) (230V)
31a 175-0251 Carbon brush (pkg of 2) 2
31b 175-0052 Carbon brush set 1
32 175-1668 Rear cover panel (black) 1
33 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
34 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel 1
35 175-0006 Rocker switch 1
36 175-6063 Strain relief 1
37 175-1669 18/3 power cord 25 foot 1
38 999-0151 Nut 8-32 nylon insert lock zinc plated 2
39 175-1670 Vacuum filter 1
40 175-1671 Screen filter 1
41 175-1672 Male adapter 1
42 999-0393 Washer 3/16 flat aluminum 4
43 999-0442 Nut 10-24 nylon insert lock stainless steel 4
44 175-1673 Pump mounting bracket 2
45 175-1656 Hose clamp 4
46 175-1657 Hose 1/4 x 5 1/4 inch 1
47 175-1658 Hose 1/4 x 10 1/2 inch 1
48 N/A Not available 1
49 175-3910 Vacuum motor gasket 1
50 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated 4
