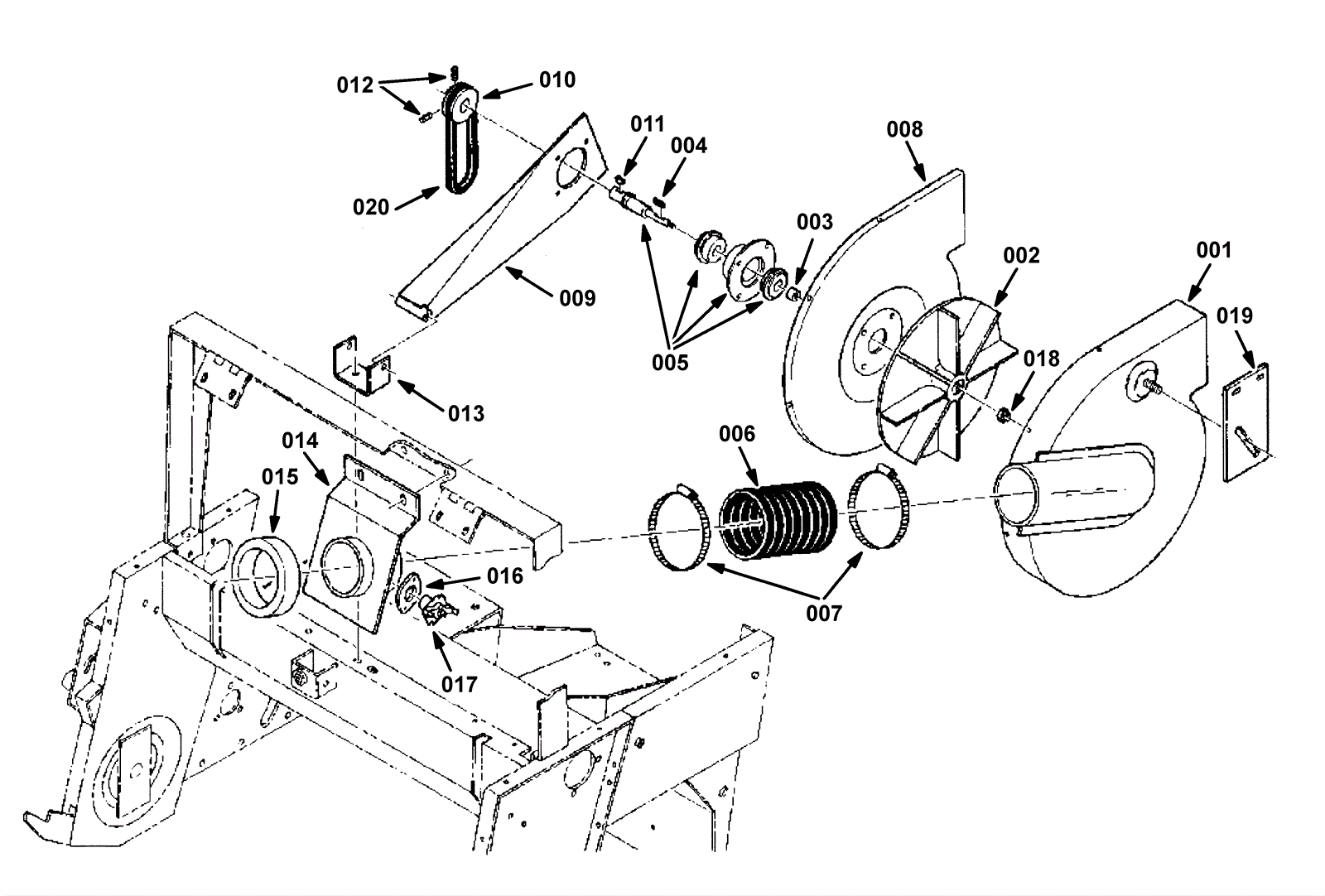

1186E Vacuum Fan Assembly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 1 Vacuum fan housing usually ships 3-26 days
002 175-9154 Impeller 9 x 3/8 $92.40 1 usually ships 1-5 days
003 175-9155 Spacer $14.30 1 usually ships 1-5 days
004 175-9158 Square key 1/8 x 1/8 inch $4.09 1 usually ships 1-5 days
005 175-9157 Shaft $271.48 1 usually ships 5-16 days
006 175-0858 HOSE, FLEX, VACUUM, 04.0D, 005.0L (Tennant Industrial) $31.17 1 usually ships 5-16 days
007 175-7146 Wormdrive clamp (Tennant Industrial) $9.17 2 usually ships 5-16 days
008 N/A Not available Call for price 1 Rear impeller housing usually ships 3-26 days
009 N/A Not available Call for price 1 Fan mount arm usually ships 3-26 days
010 275-9801 Sheave (Tennant Industrial) $116.36 1 usually ships 1-5 days
011 175-9159 Woodruff key $3.04 1 usually ships 1-5 days
012 175-4926 Screw 5/16-18 x 3/8 set nylon lock $4.88 2 ships same day
013 N/A Not available Call for price 1 Fan pivot bracket usually ships 3-26 days
014 N/A Not available Call for price 1 Filter to fan adapter usually ships 3-26 days
015 275-1852 SEAL, RBR, CLSD, 1.00, 4.9D 03.9H (Tennant Industrial) $24.50 1 usually ships 5-16 days
016 175-9365 Fire switch gasket $12.43 1 usually ships 5-16 days
017 175-9364 Thermostat assembly 140 degree $29.48 1 usually ships 5-16 days
018 175-9286 Nut 5/16 x 24 hex flex lock thin plated $4.88 1 usually ships 1-5 days
019 N/A Not available Call for price 1 Backing plate usually ships 3-26 days
020 275-1854 BELT, V, 19.0L, COGGED [4L] (Tennant Industrial) $34.01 1 usually ships 1-5 days
