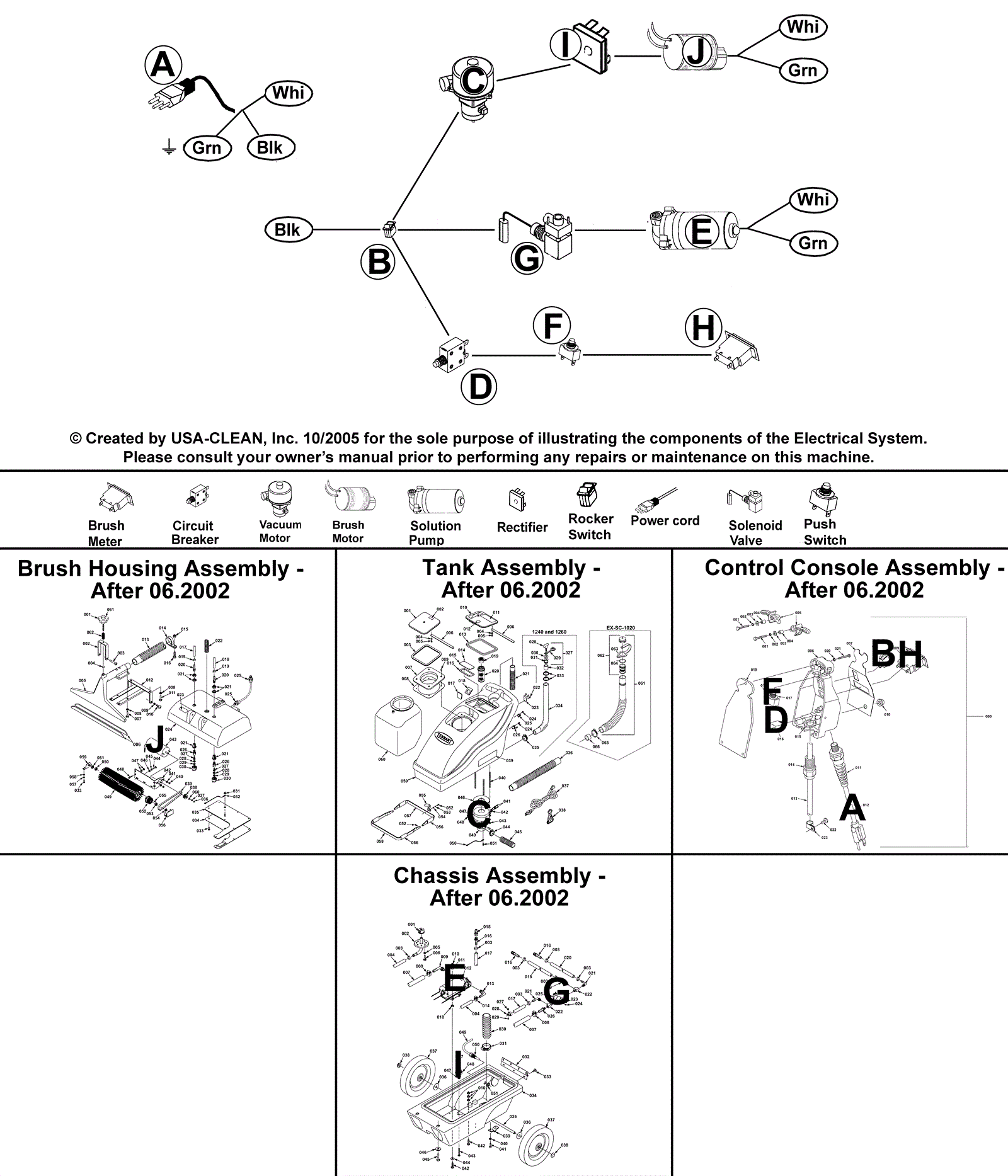

| # | Part | Description |
Req | Notes | Availability |
|---|
A |
175-6064
|
14/3 pigtail cord 18 inch |
|
Control Console Assembly - After 06.2002 |
usually ships 16-21 days |
B |
175-0136
|
On/off rocker switch |
|
Control Console Assembly - After 06.2002 |
usually ships 16-21 days |
C |
991-1213
|
120V 3 stage vacuum motor tangential |
|
Tank Assembly - After 06.2002 |
usually ships 13-17 days |
D |
275-5777
|
2amp circuit breaker |
|
Control Console Assembly - After 06.2002 |
usually ships 16-21 days |
E |
175-6011
|
120V 100 PSI pump |
|
Chassis Assembly - After 06.2002 |
usually ships 16-21 days |
E |
991-8225
|
Shurflo pump |
1 |
|
usually ships 13-17 days |
F |
175-6400
|
Push button switch kit |
|
Control Console Assembly - After 06.2002 |
usually ships 16-21 days |
Ga |
175-6025
|
Solution solenoid valve |
|
Chassis Assembly - After 06.2002 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) |
usually ships 16-21 days |
Gb |
991-8598
|
Replacement plunger with spring for solenoid valve |
1 |
|
usually ships 9-12 days |
H |
275-5152
|
Brush pressure meter |
|
Control Console Assembly - After 06.2002 |
usually ships 16-21 days |
I |
175-6052
|
15amp rectifier |
|
Chassis Assembly - After 06.2002 |
usually ships 16-21 days |
J |
175-7232
|
120V 1/4HP brush motor |
|
Brush Housing Assembly - After 06.2002 |
usually ships 16-21 days |
