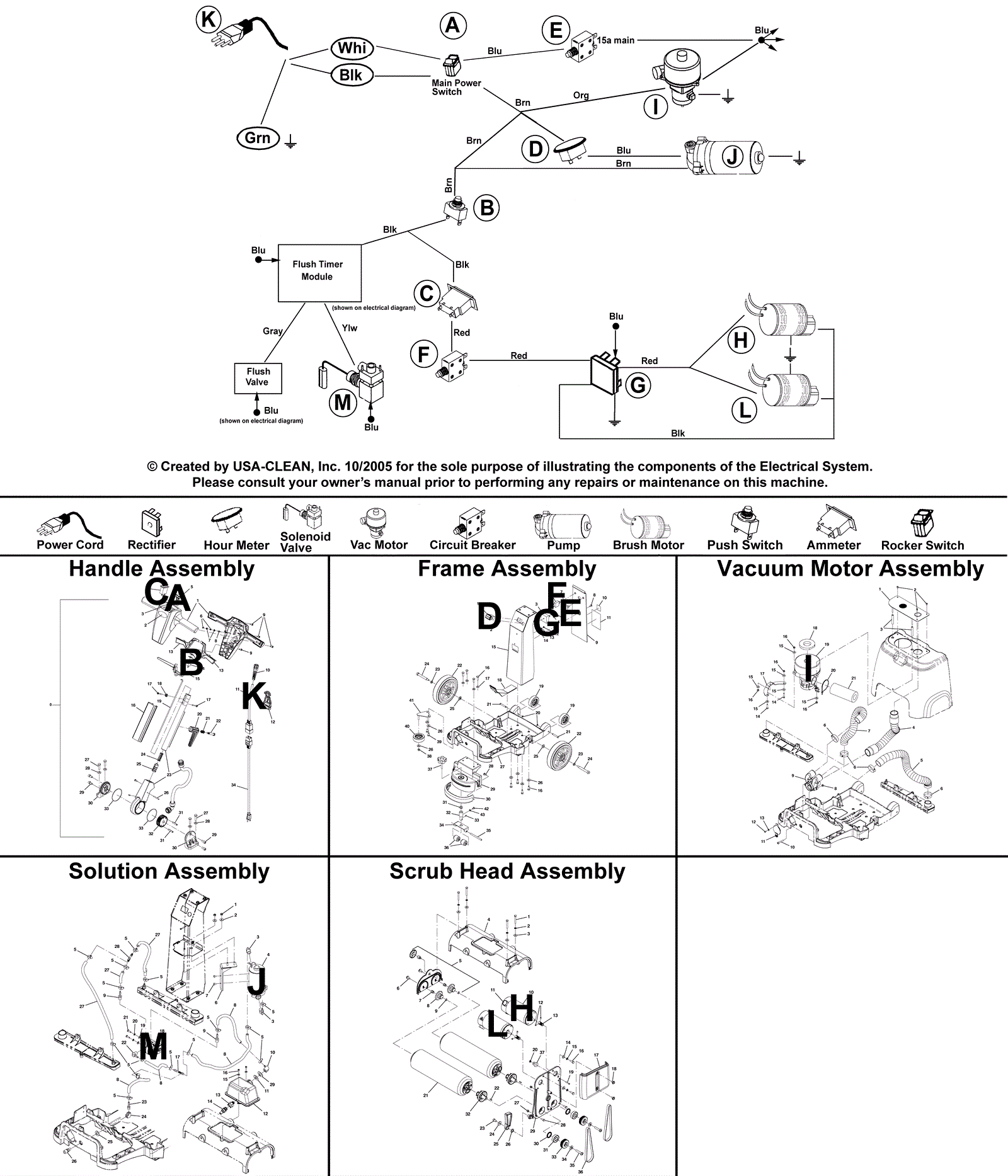

R3 - Simplified Electrical System

#PartDescriptionPriceReqNotesAvailability
A 175-1847 Rocker switch $49.50 Handle ships same day
B 175-6400 Push button switch kit $31.13 Handle ships same day
C 275-9165 120V ammeter gauge $96.91 Handle usually ships 5-16 days
D 275-9900 Hour meter $52.69 Chassis ships same day
E 175-0842 15amp circuit breaker $15.18 Chassis ships same day
F 175-2557 5amp circuit breaker $15.18 Chassis ships same day
G 175-4009 Rectifier $32.89 Scrub Head usually ships 5-16 days
H 275-9189 120V brush motor $272.36 Scrub Head usually ships 5-16 days
Ia 275-9134 120V 2 stage vacuum motor $275.44 Vacuum Motor (OEM) ships same day
Ib 991-1240 120V 2 stage vacuum motor dual ball tangential $159.84 (NON-OEM) usually ships 5-16 days
J 275-9125 Pump $365.75 Solution ships same day
K 275-9149 14/3 pigtail cord 16 inch $22.66 Handle usually ships 5-16 days
L 275-9189 120V brush motor $272.36 Scrub Head usually ships 5-16 days
M 275-9186 Solution manifold $398.86 Solution usually ships 5-16 days
