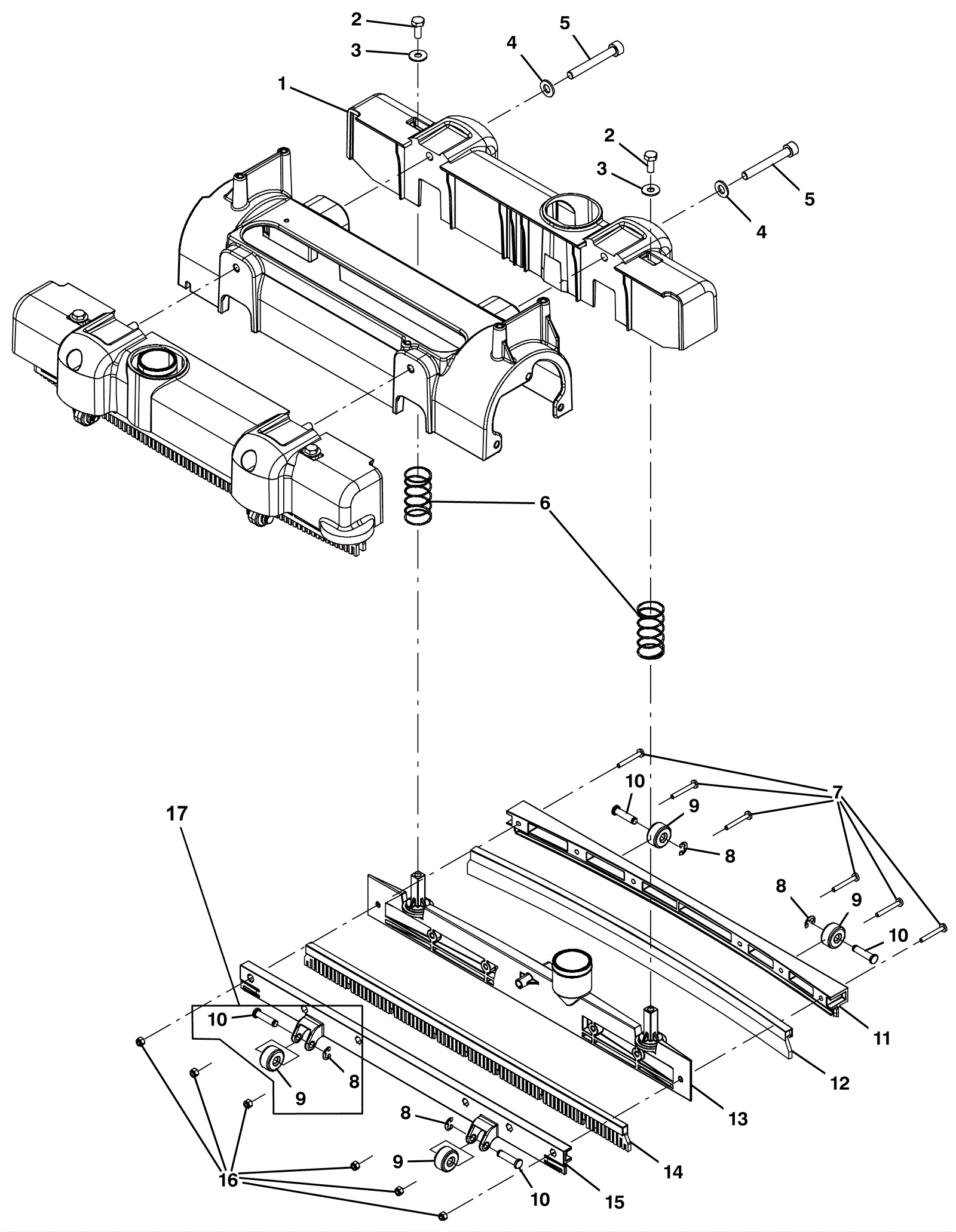

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-5284
|
Squeegee housing |
2 |
|
|
2 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
4 |
|
|
3 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
4 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
5 |
175-0614
|
Screw M8-1.25 x 60mm socket head (Tennant Industrial) |
4 |
|
|
6 |
275-5289
|
Compression spring |
4 |
|
|
7 |
999-1672
|
Screw M4-.7 x 30mm pan head phillips stainless steel |
12 |
|
|
8a |
275-6717
|
Squeegee wheel kit |
1 |
(includes 8b-10) |
|
8b |
275-5287
|
Retaining ring |
8 |
|
|
9 |
275-5286
|
Squeegee drag wheel |
8 |
|
|
10 |
275-5285
|
Pin |
8 |
|
|
11 |
275-5291
|
Front squeegee retainer |
2 |
|
|
12a |
275-5783
|
Squeegee blade urethane rear |
2 |
(OEM) |
|
13 |
275-5290
|
Squeegee weldment |
2 |
|
|
14a |
275-5784
|
Squeegee blade urethane front |
2 |
(OEM) |
|
15 |
275-5288
|
Rear squeegee retainer |
2 |
|
|
16 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
12 |
|
|
