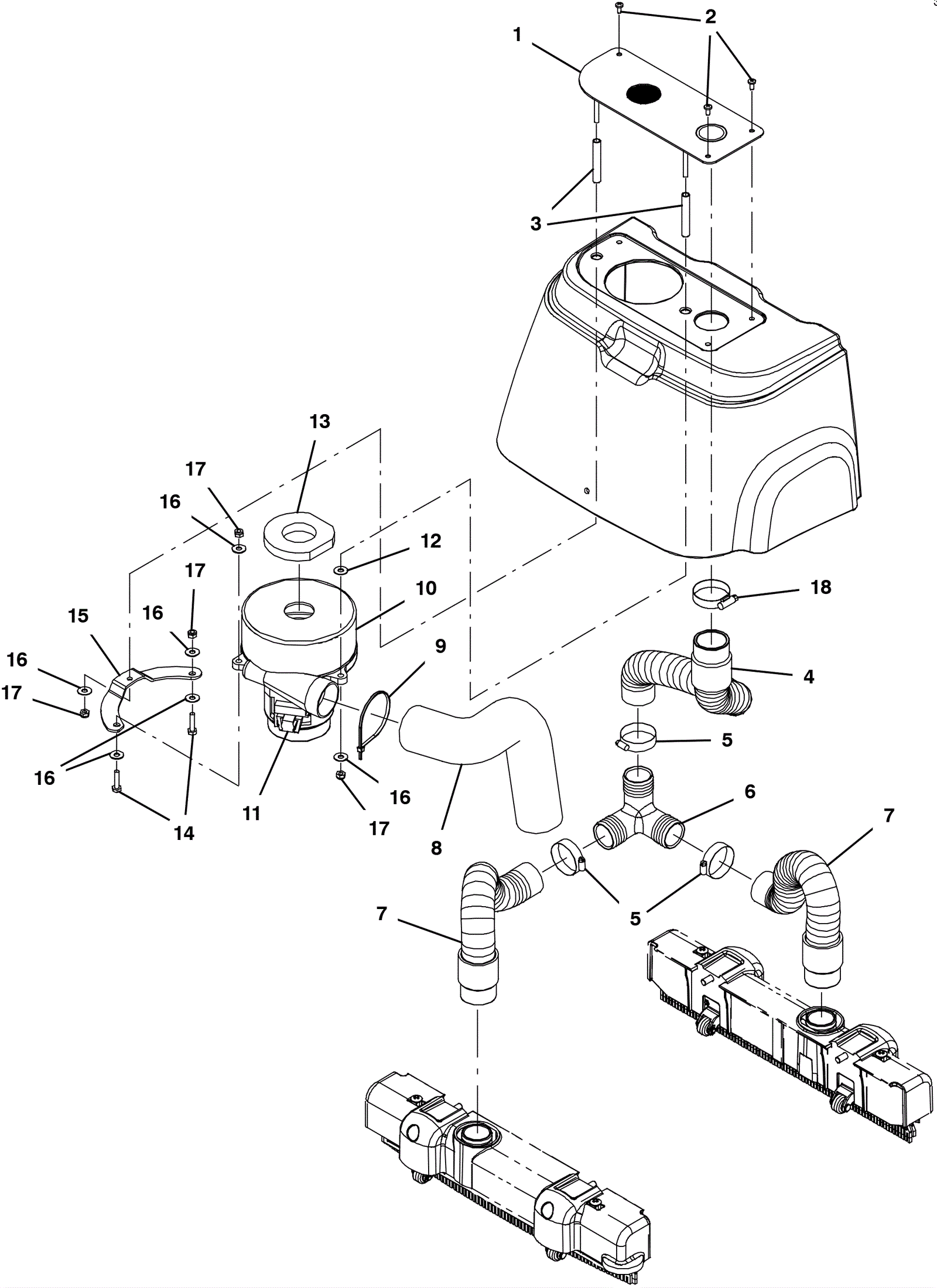

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
999-1090
|
Screw M5-.8 x 10mm pan head phillips zinc plated |
3 |
|
|
3 |
175-1919
|
Spacer |
2 |
|
|
4 |
275-9142
|
Upper squeegee vacuum hose |
1 |
|
|
5 |
997-2000
|
Hose clamp |
3 |
|
|
8 |
175-3401
|
Vacuum motor exhaust hose |
1 |
|
|
9 |
175-7795
|
Cable tie |
1 |
|
|
10a |
275-9134
|
120V 2 stage vacuum motor |
1 |
(includes 11a, 12) (OEM) |
|
10b |
991-9278
|
120V 2 stage vacuum motor dual ball tangential |
1 |
(NON-OEM) |
|
10c |
275-9124
|
240V vacuum motor |
1 |
(11b-12) |
|
11a |
375-1317
|
Carbon brush kit |
1 |
|
|
11b |
475-1206
|
VR, BRUSH KIT, VAC FAN 1071840 |
1 |
|
|
12 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
13 |
675-9895
|
Vacuum motor gasket |
1 |
|
|
14 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
2 |
|
|
16 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
|
