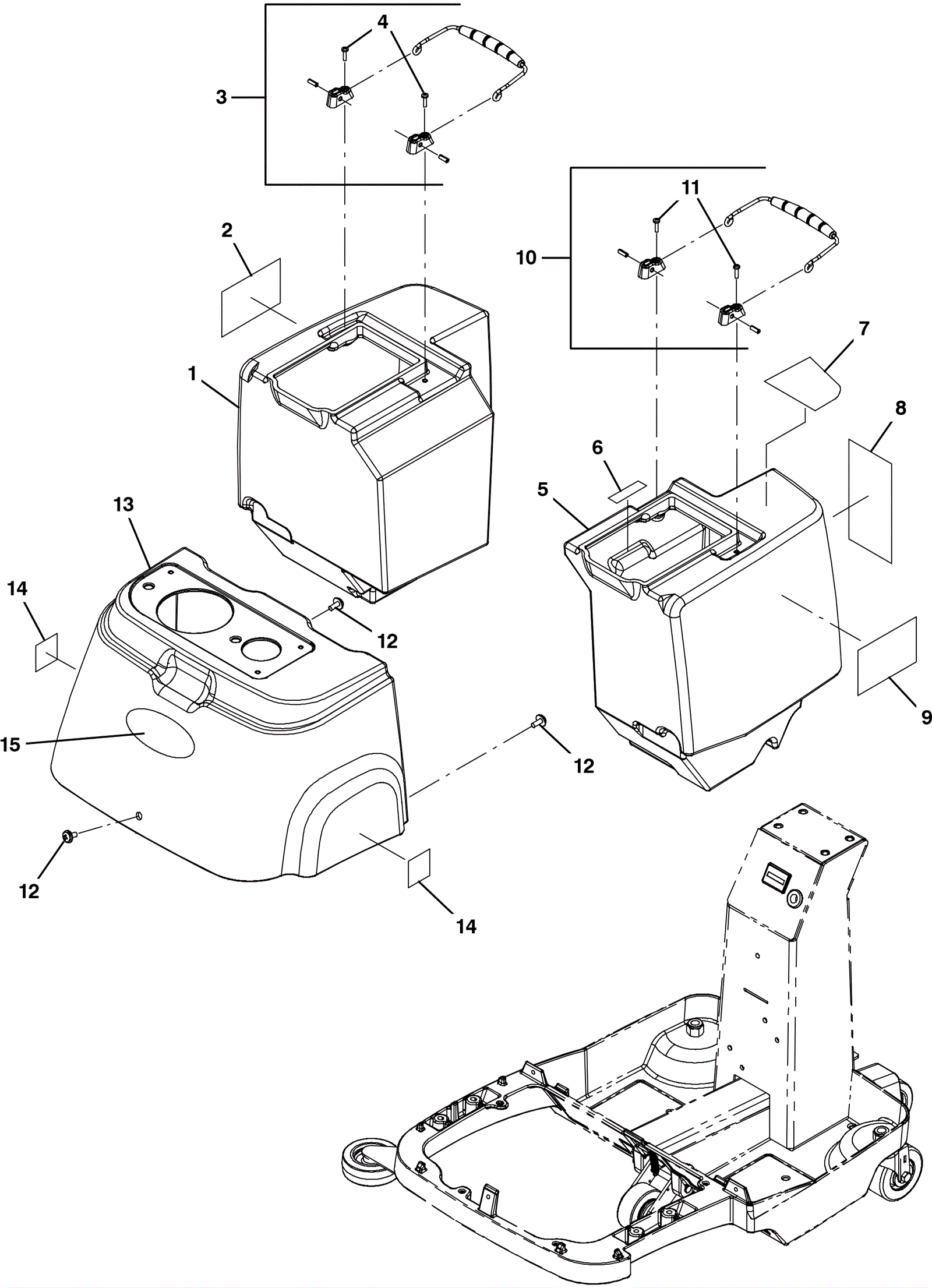

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-5260
|
3 gallon recovery tank assembly |
1 |
(includes 2-4) |
|
2 |
275-5261
|
T1 side decal |
1 |
|
|
3 |
275-2374
|
Tank handle kit |
1 |
(includes 4) |
|
4 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
2 |
|
|
5 |
275-5262
|
3 gallon solution tank assembly |
1 |
(includes 6-11) |
|
6 |
275-5263
|
Solution tank fill decal |
1 |
|
|
7 |
275-5264
|
Solution tank decal |
1 |
|
|
8 |
275-5265
|
Operator instructions decal |
1 |
|
|
9 |
275-5261
|
T1 side decal |
1 |
|
|
10 |
275-2374
|
Tank handle kit |
1 |
(includes 11) |
|
11 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
2 |
|
|
12 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
3 |
|
|
13 |
275-5266
|
Shroud assembly |
1 |
(includes 14-15) |
|
14 |
175-1238
|
Moving parts decal |
2 |
|
|
15 |
275-2379
|
Tennant logo decal |
1 |
|
|
