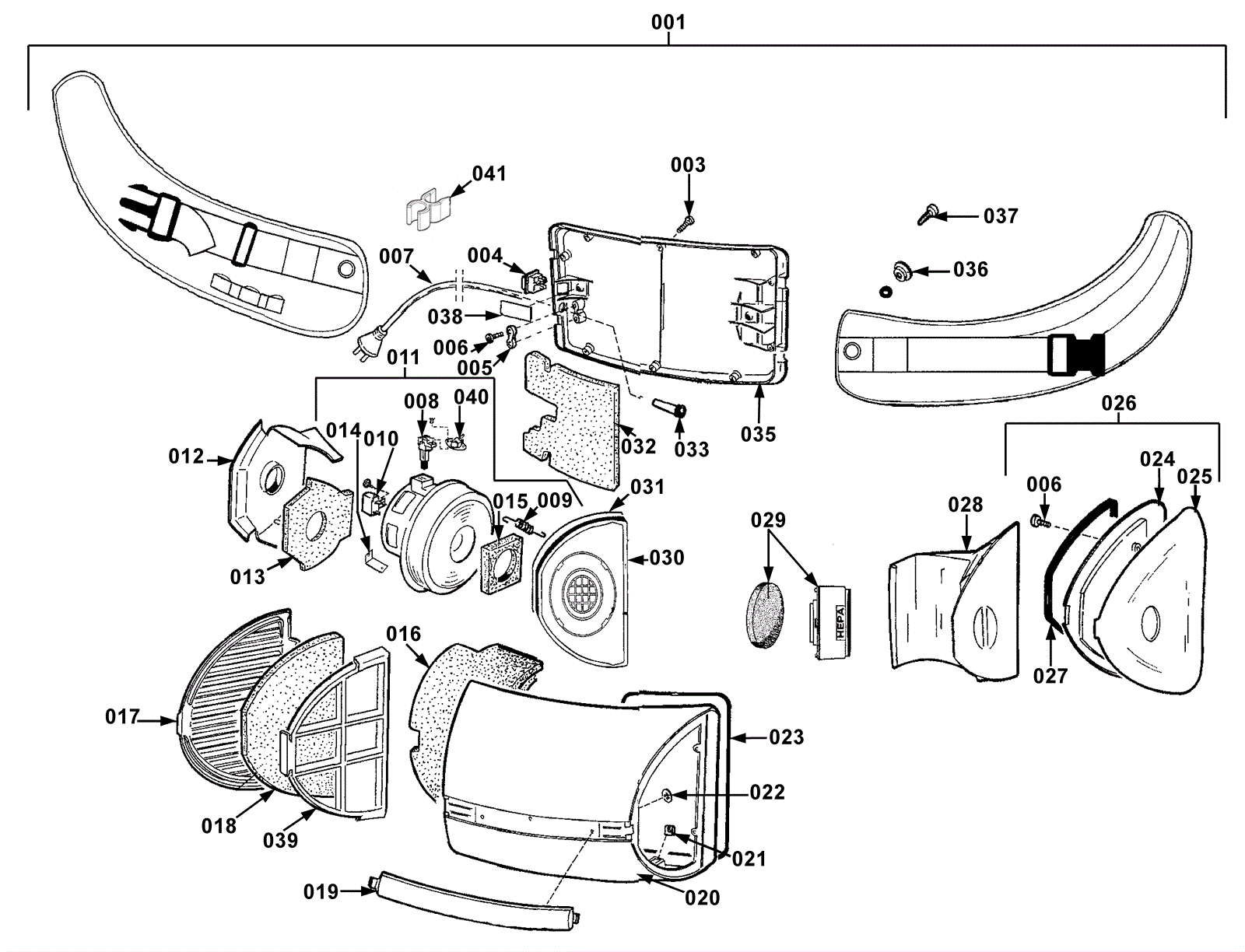

ADGILITY Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 181-0491 Belt $212.89 1 (includes 003 through 041) usually ships 16-41 days
003 181-0493 Screw $10.56 10 usually ships 1-5 days
004 272-8571 Switch $26.92 1 ships same day
005 181-0527 Protection sleeve kit $36.07 1 usually ships 16-41 days
006 172-3861 Screw $9.02 4 ships same day
007a 272-8573 18/3 49 foot power cord $83.82 1 (OEM) usually ships 16-41 days
007b 991-5008 18/3 replacement power cord 50 foot (beige) $34.63 1 (NON-OEM) usually ships 8-20 days
008 N/A Not available Call for price 2 (Carbon brushes) usually ships 3-26 days
009 181-0499 Spring $13.07 4 usually ships 1-5 days
010 181-1641 Capacitor $22.41 1 usually ships 16-41 days
011 181-0501 120V vacuum motor assembly $208.38 1 (includes 008, 010, 014, 015, 040) usually ships 1-5 days
012 181-0502 Silencer $33.81 1 usually ships 1-5 days
013 181-0503 Silencer insulation $13.07 1 usually ships 1-5 days
014 272-5344 Grounding plate (OBSOLETE) $11.53 1 usually ships 1-5 days
015 181-0505 Gasket $17.06 1 usually ships 1-5 days
016 181-0506 Cover insulation $17.46 1 usually ships 1-5 days
017 272-5345 Exhaust cover (grey) $19.45 1 usually ships 16-41 days
018 272-8504 Exhaust filter (pkg of 3) $33.60 1 ships same day
019 181-0509 Cover strip $4.84 1 usually ships 16-41 days
020 272-5346 Cover (grey) $96.48 1 usually ships 1-5 days
021 181-0511 C clip $10.01 6 usually ships 1-5 days
022 272-9566 Spring nut $11.69 3 usually ships 1-5 days
023 181-0513 Gasket $10.52 1 usually ships 1-5 days
024 272-5348 Suction cover assembly (grey) $42.35 1 usually ships 16-41 days
025 272-5348 Suction cover assembly (grey) $42.35 1 usually ships 16-41 days
026 272-5348 Suction cover assembly (grey) $42.35 1 (includes 006, 024, 025) usually ships 16-41 days
027 181-0517 Gasket $13.40 1 usually ships 16-41 days
028a 181-0518 Dust bag (pkg of 5) $17.90 1 ships same day
028b 181-0519 Dust bag high filtration (pkg of 10) (OBSOLETE) $62.74 1 usually ships 16-41 days
029a 181-0521 Pre-filter $9.59 1 ships same day
029b 181-1693 HEPA filter $164.67 1 usually ships 16-41 days
029c 181-0523 Gasket $24.20 1 usually ships 1-5 days
030 181-0518 Dust bag (pkg of 5) $17.90 1 ships same day
031 181-0525 Gasket $11.99 1 usually ships 1-5 days
032 181-0526 Back insulation $8.81 1 usually ships 16-41 days
033 181-0527 Protection sleeve kit $36.07 1 usually ships 16-41 days
035 272-5350 Back cover $70.62 1 usually ships 16-41 days
036 181-0536 Washer $11.69 2 usually ships 1-5 days
037 181-0532 Screw $10.52 2 usually ships 1-5 days
038 181-0533 Insulation $7.54 1 usually ships 1-5 days
039 181-0534 Filter holder $16.48 1 usually ships 16-41 days
040 181-0535 Thermo protector (OBSOLETE) $21.38 1 usually ships 1-5 days
041 272-5351 Cord retainer clip (OBSOLETE) $9.63 1 usually ships 1-5 days
