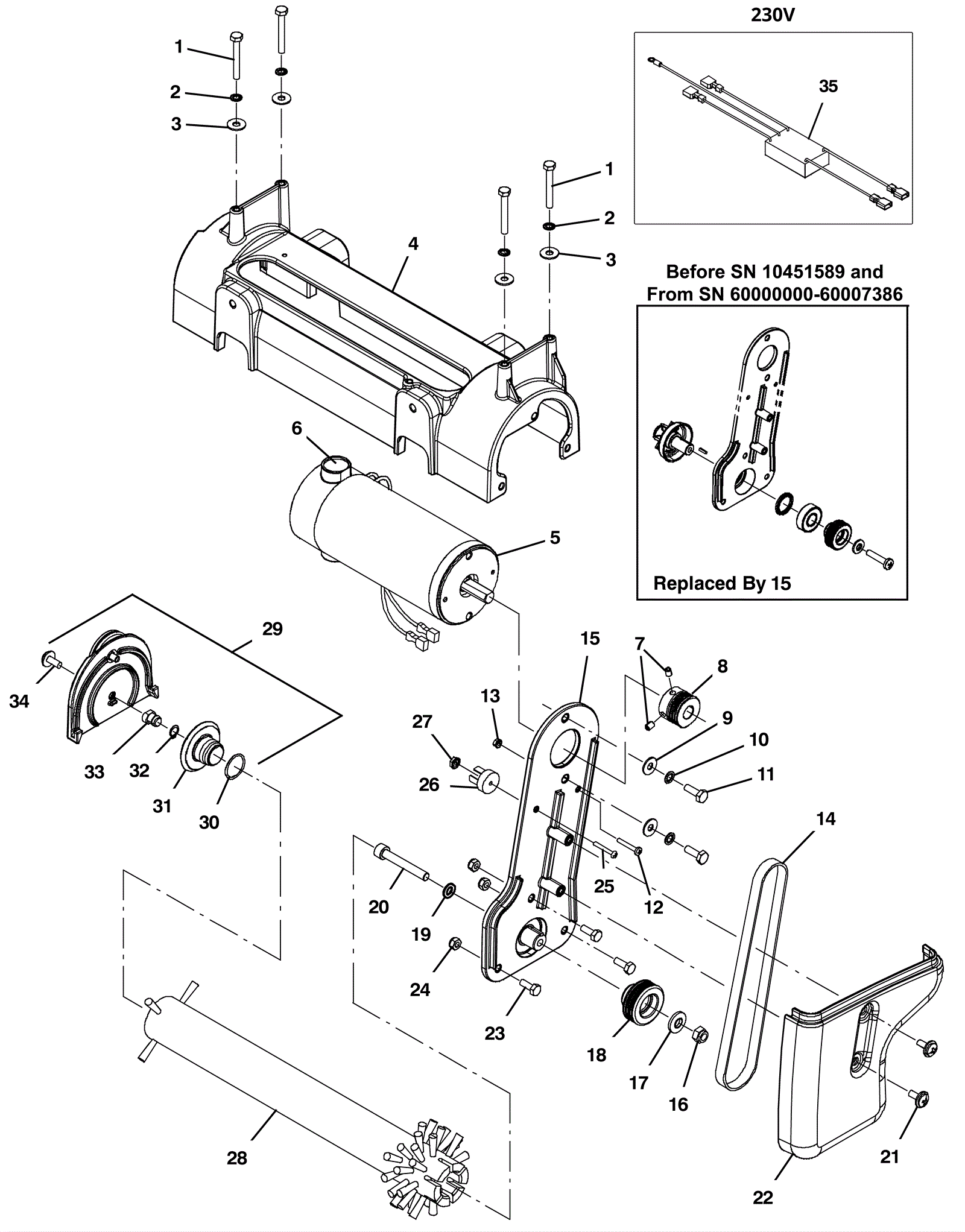

E5 Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0781 Screw M6-1 x 45mm hex head $0.99 4 ships same day
2 175-4544 Washer M6 locking $4.62 4 ships same day
3 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
4 275-2401 Brush housing $214.83 1 usually ships 5-16 days
5a 275-2402 120V brush motor $438.57 1 (includes 6) ships same day
5b 475-2507 MOTOR, ELE, 230VDC 2000RPM .33HP $423.17 1 (includes 6) usually ships 5-16 days
6 275-9190 Carbon brush (pkg of 2) $30.25 2 ships same day
7 175-9339 Screw M6-1 x 8mm set socket $3.96 2 usually ships 5-16 days
8 275-2404 Sheave $25.41 1 usually ships 5-16 days
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
10 175-4544 Washer M6 locking $4.62 2 ships same day
11 275-2405 Screw 1/4-20 x 3/4 hex head $11.44 2 usually ships 5-16 days
12 999-1673 Screw M4-.7 x 25mm pan head phillips stainless steel $0.99 1 ships same day
13 175-4290 Nut M4 x .70mm hex $2.31 1 usually ships 1-5 days
14 275-9126 Belt $64.68 1 ships same day
15 275-2409 Motor mount bracket kit w/ bearing and seal $161.92 1 (includes 16-20) usually ships 5-16 days
16 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
17 999-1407 Washer 5/16 belleville $3.04 1 ships same day
18 275-2408 Sheave $3.96 1 ships same day
19 275-6722 Washer flat $1.43 1 usually ships 5-16 days
20 999-1828 Screw M8-1.25 x 55mm socket head stainless steel $4.54 1 ships same day
21 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
22 275-2407 Belt cover $22.66 1 usually ships 5-16 days
23 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 ships same day
24 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 3 ships same day
25 999-0102 Screw 6-32 x 1 round head slotted zinc plated $0.99 1 ships same day
26 175-4009 Rectifier $32.89 1 usually ships 5-16 days
27 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 1 ships same day
28 275-9127 Brush $235.51 1 usually ships 5-16 days
29 275-2412 Brush door kit with hardware $213.18 1 (includes 30-34) ships same day
30 275-2413 Seal $2.64 1 ships same day
31 275-2414 Brush idler hub $18.70 1 ships same day
32 275-2415 Retaining ring $2.42 1 ships same day
33 275-2416 Shaft idler plug $20.79 1 ships same day
34 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 1 ships same day
35 475-1396 FILTER, BRUSH, 270 VDC, 3A $36.52 1 usually ships 5-16 days
