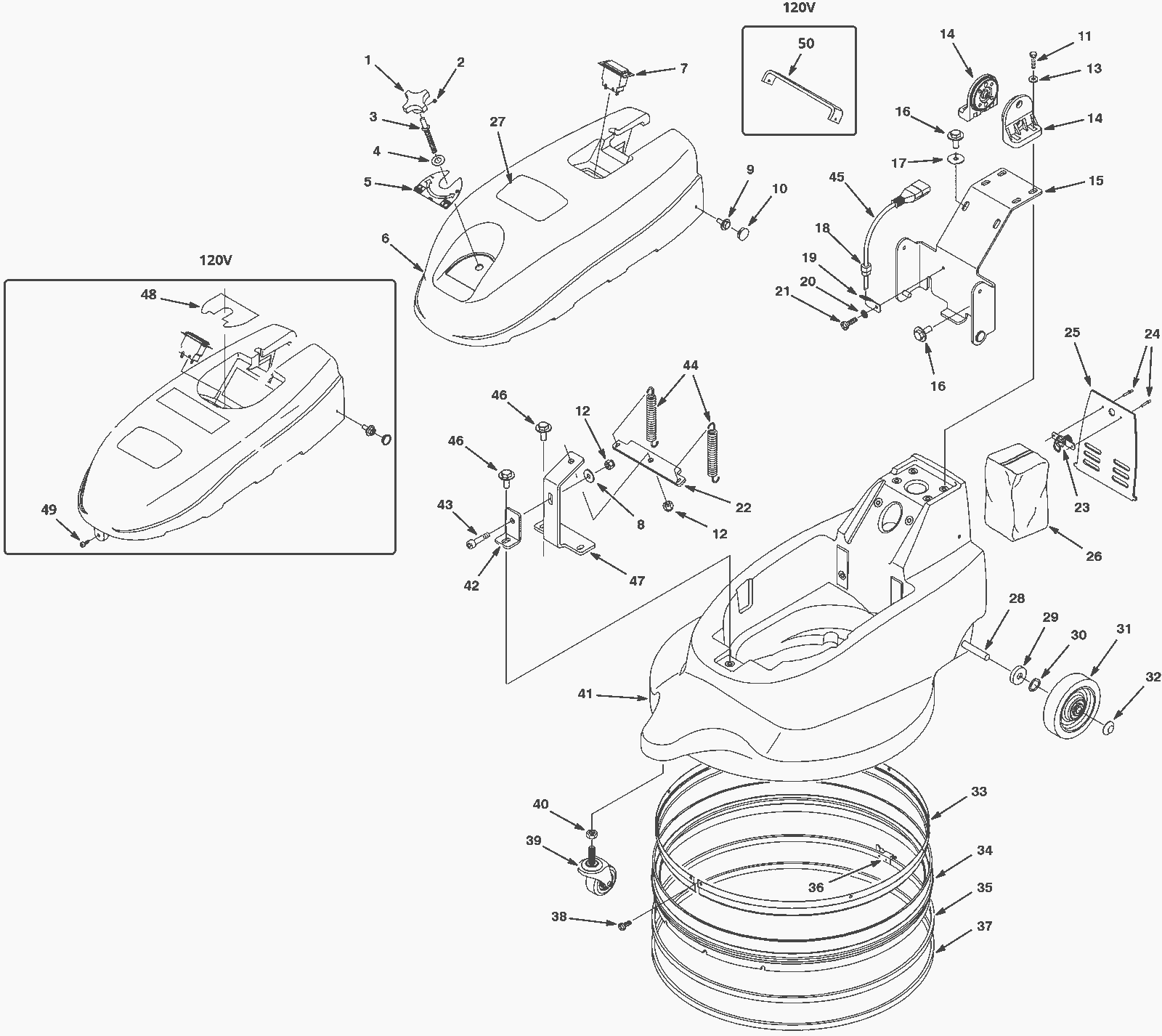

Base Assembly

#PartDescription ReqNotesAvailability
1 175-5528 Knob 1 (includes 2)
2 999-0944 Screw 10-32 x 1/4 cup point socket set alloy plain finish 1
3 175-5529 Stud 1
4 999-1156 Washer M12-.7 nylon 1
5 375-3956 Pad press decal 1
6a 375-3957 Motor cover 1 (230V)
6b 475-2459 COVER, MOTOR, RM-CPHG, AFMKT 1 (includes 6c) (120V)
6c 275-2331 Warning decal 1 (120V)
6d 275-6094 Cover (gray) 1 (120V)
7a 375-3958 Pad pressure gauge 1 (230V)
7b 275-2330 Pad pressure gauge 1 (120V)
8 999-0617 Washer 3/8 x 1 flat stainless steel 1
9 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
10 175-3127 Plug 2
11 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 4
12 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 2
13 999-0024 Washer 5/16 flat stainless steel 4
14a 175-7678 Handle pivot (OBSOLETE) 2 (230V)
14b 275-2314 Handle pivot 2 (120V)
15a 375-3959 Handle bracket 1 (230V)
15b 175-5526 Handle support bracket 1 (120V)
16 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 4
17 999-1213 Washer 5/16 x 1 1/2 fender stainless steel 1
18 175-6591 Strain relief bushing 1
19 375-3960 Strain relief bracket 1
20 999-1024 Washer 1/4 external tooth lock stainless steel 1
21 175-9354 Screw M6 hex 1
22 375-3961 Spring plate 1
23 175-1231 Spring latch 1
24a 175-4396 Pop rivet 2 (230V)
25 175-5525 Bag door 1
26a 175-5523 Cloth filter bag 1 (230V)
26b 175-5524 Paper filter bag (pkg of 10) 1 (120V)
27a 275-9771 TCO small decal 1 (230V)
27b 275-9770 Dual logo decal (Tennant Industrial) 1 (120V)
28 175-5521 Axle 1
29 999-0187 Washer 1/2 flat plain finish 2
30 175-0293 Washer 1/2 compression zinc plated 2
31 275-9148 Wheel 2
32 175-6097 Hub cap 2
33 175-5538 Skirt shield 1
34 775-0396 Dust control skirt 1
35 175-1429 Skirt strap assembly 1 (includes 36)
36 175-1428 Adjustment band fastener 1
37 175-1430 Skid strip 1
38 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 6
39 175-6573 Swivel caster wheel 1
40 999-0050 Nut 1/2-13 hex jam plain finish 1
41a 375-3962 Base 1 (230V)
41b 275-6093 Base (gray) 1 (120V)
42 375-3963 Spring bracket 1
43 375-3964 Screw (Tennant Industrial) 1
44a 275-5897 Extension spring 2 (230V)
44b 175-5530 Extension spring 2 (120V)
45 375-3965 Cord with receptacle 1
46 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 3
47 375-3966 Spring bracket 1
48 275-2329 Pad pressure decal 1 (120V)
49 999-1409 Screw M8-1.25 x 12mm socket head stainless steel 1 (120V)
50 175-5531 Spring bracket 1 (120V)
N/S 999-0802 Screw M8-1.25 x 16mm socket head 2 (120V)
N/S 175-4006 Nut M8 x 1.25 hex jam 2 (120V)
