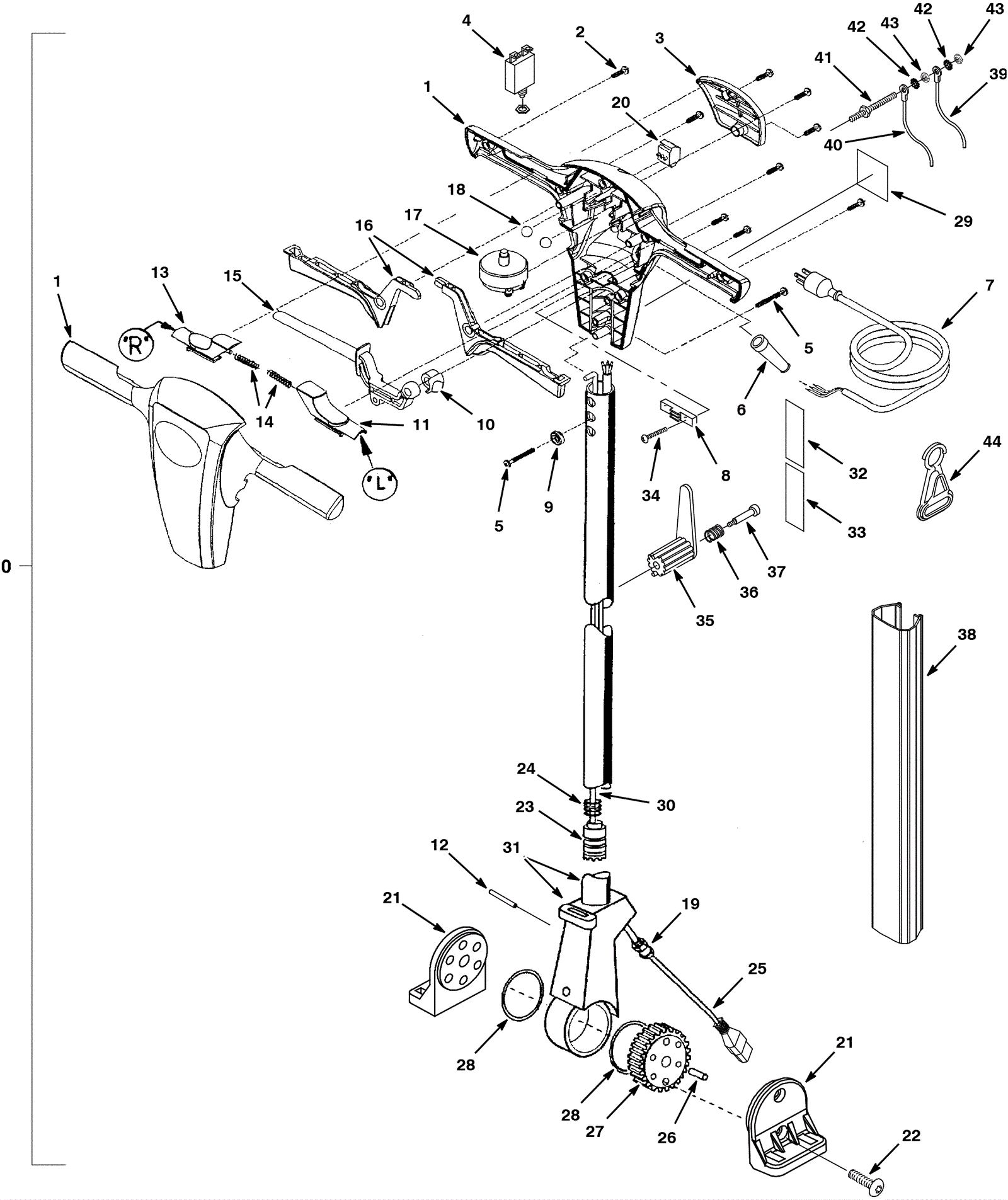

Handle Assembly

#PartDescription ReqNotesAvailability
0 275-6092 Handle assembly 1 (includes 1-3, 4b-7a, 8-19, 21-28, 31-39, 41-44)
1 275-5800 Front and rear handle kit 1
2 175-7660 Screw #10-14 x .675 shoulder self-tapping 9
3 175-7661 Cover 1
4a 375-1575 10amp circuit breaker 1 (230V)
4b 175-7698 17amp circuit breaker 1 (120V)
5 275-4694 Screw #10-14 x 1 1/2 shoulder self-tapping 2
6 175-7664 Strain relief 1
7a 275-2293 14/3 power cord 75 foot 1 (OEM)
7b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
8 275-2307 Binding post 1
9 275-2308 Flanged bushing 1
10 275-2309 Plug 1
11 175-7669 Left side safety lock button (Tennant Industrial) 1
12 275-2325 Roll pin 1
13 175-7671 Right side safety lock button 1
14 175-7672 Spring 2
15 275-2310 Handle adjustment lever 1
16 175-7673 Lever 2
17 275-2311 Press switch (OBSOLETE) 1
18 175-7675 Ball 2
19 275-2312 Cord grip 1
20 175-7662 Terminal block 1
21 275-2314 Handle pivot 2
22 999-0802 Screw M8-1.25 x 16mm socket head 4
23 275-2319 Plunger kit 1
24 275-2322 Spring 1
25 275-2315 Interconnect cord 1
26 275-2316 Roll pin 2
27 275-2317 Locking gear 1
28 175-3967 Seal 2
29 275-2370 Read manual decal 1
30 275-2321 Handle release rod 1
31 275-2320 Tube assembly 1
32 475-1085 LABEL, HZRD, FLAMMABLE MATL, CE 1
33 275-2371 Warning decal 1
34 175-7660 Screw #10-14 x .675 shoulder self-tapping 2
35 175-5503 Quick release cord hook 1
36 175-5504 Spring 1
37 175-1719 Shoulder bolt 1
38 275-2324 Handle weldment cover 1
39 275-2318 Wire assembly 1
40 375-3955 Wire 1
41 275-2313 Screw M4-.7 x 12mm hex head double threaded 1
42 999-0148 Washer #6 external star lock zinc plated 2
43 999-0869 Nut M4-.7 hex coarse thread plain finish 2
44 175-0236 Cord belt clip 1
